Vieo Warm Wall MW5 - Insulated Standing Seam Wall System

Name: Vieo Warm Wall MW5 - Insulated Standing Seam Wall System
Brand: Euroclad Group Ltd
SKU: gRyo8xy8KbxPPJd2pFq3PN

Verified by manufacturer 2 days ago

EC 25-454 Vieo steel external profiles

Euroclad Group Ltd

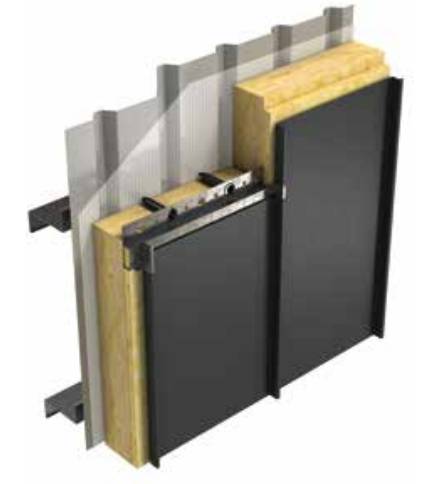

Insulated built-up system with interlocking steel or aluminium sheets as an external finish. Designed for use on steel framed buildings, using RocSlab insulation and our MW5 steel liner.

Jump to:

+44 (0)2922 010101 Website

Application

Designed for use on steel framed buildings.

Suitable for a wide range of building applications, such as for use with residential, commercial and public buildings.

Description

Insulated built-up system with interlocking steel or aluminium sheets as an external finish. Designed for use on steel framed buildings, using RocSlab insulation and our MW5 steel liner.

Vieo Warm Wall MW5 is a warm wall system, where the principal thermal insulation layer is placed immediately inside the outer profiled sheeting, resulting in the supporting structure and any voids being at a temperature close to that of the interior of the building.

Features and benefits:

Vieo systems are available in straight, curved and tapered sheet options, enabling creation of creative architectural forms.
Vieo sheets are available in variable widths allowing for feature band design.
Vieo wall sheets can be installed vertically or horizontally as standard.
Simple, guaranteed alternative to traditional systems.
Can be applied to roof and walls (roofs specified separately).
Hidden fixings for a clean, attractive finish.
Fast construction aided by the pre-punched Euroclad RocBar.
External sheets can be manufactured in our factory and supplied, or produced on-site using specialist mobile equipment.
Can be used to contribute to Passivhaus standards.
External sheet available in 0.7 mm steel or 0.9 mm aluminium, in a range of coatings and colours.

Matching roof systems and cold wall systems and also available, specified separately.

General information

Color	Gold Grey Black Blue Red
Finish	Coated Matt Textured Smooth PVdF
Material	Steel Aluminium Mineral wool
Shape	Other Guidance for specification option: Sinusoidal.
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	25 year Guidance for specification option: A Vieo system guarantee is available for up to 25 years; consult manufacturer for details.

Uniclass	Ss_25_20_68_50 Metal profiled sheet self-supporting cladding systemsPrimary
CAWS	H31/10 Metal H31/120 Metal

Specification data - Metal profiled sheet self-supporting cladding systems

System performance	Guidance for specification option: Insert requirements. Manufacturer guidance Reaction to fire to BS EN 13501-1:2018 (inc. BS EN ISO 11925-2:2020 + BS EN 13823:2020): Classification on component basis only, see individual component guidance or consult manufacturer for details.
Liner sheets	-
Material	EC 32-200-1000 Liner MW5 Deck Swaged. Manufacturer guidance 0.70 mm steel as standard.
Primary fasteners	Manufacturer's standard.
End and side laps	Manufacturer's standard.
Air and vapour control layer	-
Material	Euroclad B VCL. Euroclad A2 VCL.
Fasteners	Manufacturer's standard.
Sealing	Euroclad VCL Sealing Tape. Euroclad A2 VCL Sealing Tape.
Spacers	Euroclad RocBar. Manufacturer guidance RocSlab25 insulation between bars; see Thermal insulation.
Acoustic insulation	Not applicable.
Thermal insulation	RocSlab 50 mm and RocSlab25. Guidance for specification option: System depth: 136.1 mm. System weight: 28.16 kg/m². U-value from calculation: NPD. RocSlab 50 mm + 50 mm and RocSlab25. Guidance for specification option: System depth: 186.1 mm. System weight: 35.22 kg/m². U-value from calculation: NPD. RocSlab 115 mm and RocSlab25. Guidance for specification option: System depth: 201.1 mm. System weight: 35.25 kg/m². U-value from calculation: 0.25 W/m²K. RocSlab 150 mm and RocSlab25. Guidance for specification option: System depth: 236.1 mm. System weight: 39.55 kg/m². U-value from calculation: 0.20 W/m²K. RocSlab 50 mm + 115 mm and RocSlab25. Guidance for specification option: System depth: 251.1 mm. System weight: 42.30 kg/m². U-value from calculation: 0.20 W/m²K. RocSlab 170 mm and RocSlab25. Guidance for specification option: System depth: 256.1 mm. System weight: 42.01 kg/m². U-value from calculation: 0.18 W/m²K. RocSlab 50 mm + 150 mm and RocSlab25. Guidance for specification option: System depth: 286.1 mm. System weight: 46.62 kg/m². U-value from calculation: 0.16 W/m²K. RocSlab 205 mm and RocSlab25. Guidance for specification option: System depth: 291.1 mm. System weight: 46.32 kg/m². U-value from calculation: 0.16 W/m²K. RocSlab 50 mm + 170 mm and RocSlab25. Guidance for specification option: System depth: 306.1 mm. System weight: 49.09 kg/m². U-value from calculation: 0.15 W/m²K. RocSlab 115 mm + 115 mm and RocSlab25. Guidance for specification option: System depth: 316.1 mm. System weight: 49.41 kg/m². U-value from calculation: 0.15 W/m²K. RocSlab 50 mm + 205 mm and RocSlab25. Guidance for specification option: System depth: 341.1 mm. System weight: 53.38 kg/m². U-value from calculation: 0.13 W/m²K. RocSlab 115 mm + 150 mm and RocSlab25. Guidance for specification option: System depth: 351.1 mm. System weight: 53.72 kg/m². U-value from calculation: 0.13 W/m²K. RocSlab 115 mm + 170 mm and RocSlab25. Guidance for specification option: System depth: 337.1 mm. System weight: 56.19 kg/m². U-value from calculation: 0.12 W/m²K. RocSlab 150 mm + 150 mm and RocSlab25. Guidance for specification option: System depth: 386.1 mm. System weight: 58.08 kg/m². U-value from calculation: 0.12 W/m²K. RocSlab 150 mm + 170 mm and RocSlab25. Guidance for specification option: System depth: 406.1 mm. System weight: 60.55 kg/m². U-value from calculation: 0.11 W/m²K. RocSlab 115 mm + 205 mm and RocSlab25. Guidance for specification option: System depth: 406.1 mm. System weight: 60.55 kg/m². U-value from calculation: 0.11 W/m²K. RocSlab 170 mm + 170 mm and RocSlab25. Guidance for specification option: System depth: 426.1 mm. System weight: 63.02 kg/m². U-value from calculation: 0.11 W/m²K. RocSlab 150 mm + 205 mm and RocSlab25. Guidance for specification option: System depth: 441.1 mm. System weight: 64.99 kg/m². U-value from calculation: 0.10 W/m²K. RocSlab 170 mm + 205 mm and RocSlab25. Guidance for specification option: System depth: 461.1 mm. System weight: 67.46 kg/m². U-value from calculation: 0.10 W/m²K. Manufacturer guidance Insulation lambda claim - thermal: 0.036 W/m·K. 25 mm-thick RocSlab between RocBars.
Cavity fire barriers	-
Horizontal barriers	Not required, as this system is considered to be fully filled with A1-rated insulation material to BS EN 13501-1:2018. Guidance for specification option: If desired, advice on the detailing of cavity barriers would need to be sought from the cavity barrier supplier.
Vertical barriers	Not required, as this system is considered to be fully filled with A1-rated insulation material to BS EN 13501-1:2018. Guidance for specification option: If desired, advice on the detailing of cavity barriers would need to be sought from the cavity barrier supplier.
External sheets	-
Material	0.70 mm steel, S220 GD + ZA255. 0.70 mm steel, S220 GD + Z275.
Primary fasteners	Stainless steel fixings (Vieo sliding clips and Vieo clip fixings); plastic tubes. Guidance for specification option: Vieo sliding clips are for attachment of Vieo sheets; Vieo clip fixings are for attachment of Vieo sliding clips to various substrates. Both are Class A1 to BS EN 13501-1:2018.
End and side laps	Guidance for specification option: For completion of detailing and ends and edges of Vieo sheets. Aluminium, Class A1 to BS EN 13501-1:2018.
System accessories	Euroclad Separation Tape.

Colour/ Finish	Tata Steel Colorcoat Prisma®. Guidance for specification option: To BS EN 13501-1:2018: A1 (WF 428213). To BS EN 13501-5:2016: B_ROOF(T4) (Commission Decision 2000/553/EC). Tata Steel Colorcoat Prisma® - Textured. Guidance for specification option: To BS EN 13501-1:2018: A2-s1, d0 (WF 504598). To BS EN 13501-5:2016: B_ROOF(T4) (Commission Decision 2000/553/EC). Tata Steel Colorcoat HPS200 Ultra®. Guidance for specification option: To BS EN 13501-1:2018: C-s2,d0 (WF 501358). To BS EN 13501-5:2016: B_ROOF(T4) (19942L).
System depth	Manufacturer's standard. Guidance for specification option: Dependent on U-value requirement; see Thermal insulation guidance for details.
Weight	Manufacturer's standard. Guidance for specification option: Dependent on U-value requirement; see Thermal insulation guidance for details.
Orientation	Vertical. Horizontal.
Sheet width	Cover width: 454 mm. Guidance for specification option: As standard. Can also be supplied in variable widths to give a concertina-style effect (on request).
