Vieo Warm Roof TD - Insulated Standing Seam Roof System

Name: Vieo Warm Roof TD - Insulated Standing Seam Roof System
Brand: Euroclad Group Ltd
SKU: mSqvjcQqAd76voNmyBkrfU

Verified by manufacturer today

EC 25-454 Vieo steel external profiles

Euroclad Group Ltd

Interlocking steel or aluminium sheets that can be used as part of an exterior roof covering construction.

Jump to:

+44 (0)2922 010101 Website

Application

Designed for use with a suitable continuous substrate such as 18 mm plywood or 15 mm OSB board to support the RocSlab and a VCL located at the warm side of the insulation.

Suitable for a wide range of building applications, suitable for use with residential, commercial and public buildings.

Description

Interlocking steel or aluminium sheets that can be used as part of an exterior roof covering construction.

Designed for use with a suitable continuous substrate such as 18 mm plywood or 15 mm OSB board to support the RocSlab and a VCL located at the warm side of the insulation.

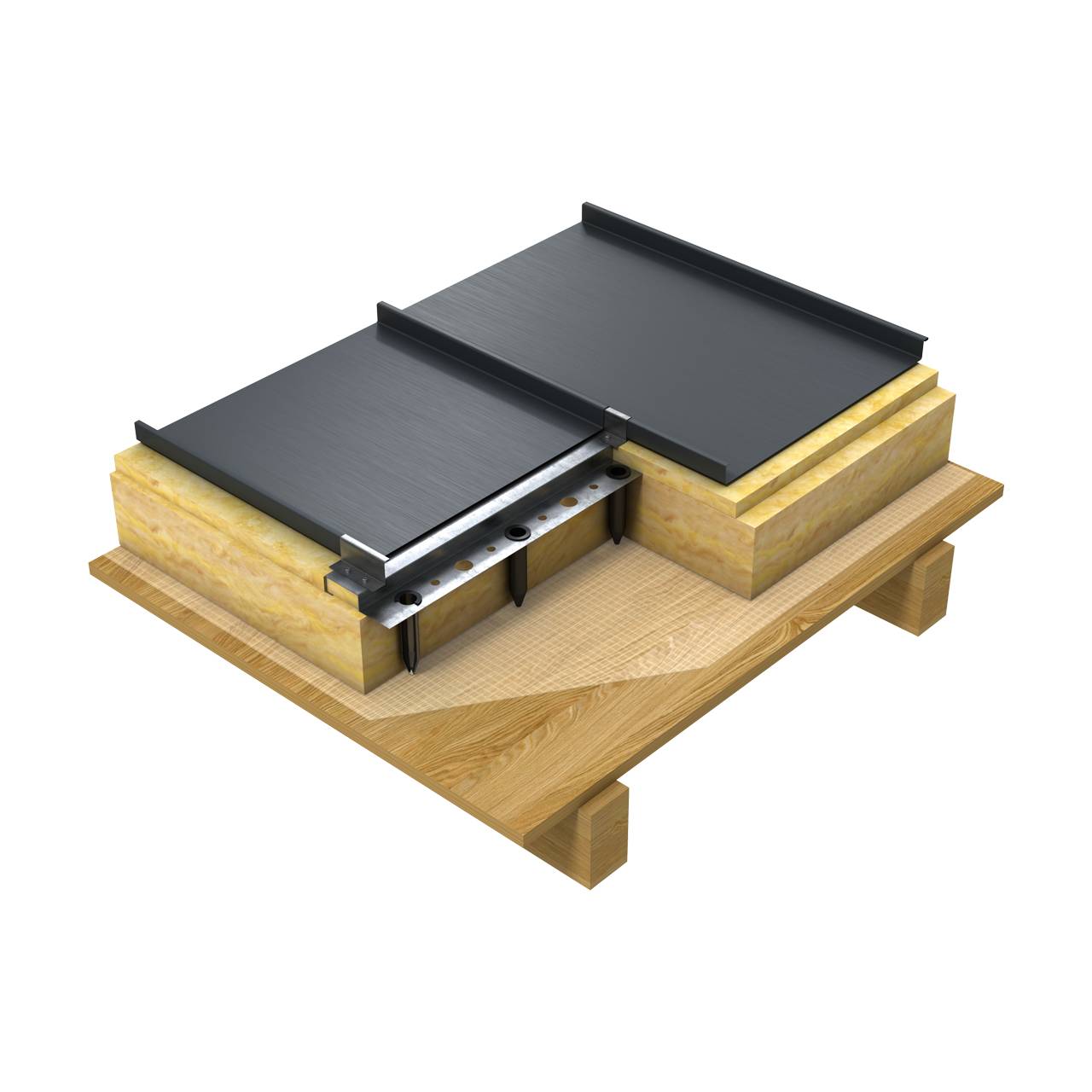

Vieo warm roof systems are characterized by the thermal insulation being immediately beneath the Vieo sheets.

Features and benefits:

Vieo systems are available in straight, curved and tapered sheet options, enabling creation of creative architectural forms.
Vieo sheets are available in variable widths allowing for feature band design.
Simple, guaranteed alternative to traditional systems.
Can be applied to roof and walls (walls specified separately).
Hidden fixings for a clean, attractive finish.
Fast construction aided by the pre-punched Euroclad RocBar.
Factory manufactured or produced on-site using specialist mobile equipment.
Can be used to contribute to Passivhaus standards.
Available in straight, curved and tapered sheet options.
Euroclad RocSlab insulation is quickly laid. Vieo sheets and RocSlab, when installed, are suitable for access for maintenance and repair.
Measured acoustic performances can be obtained through consultation with the manufacturer’s Technical Department.
External steel sheet available in a range of coatings and colours.

Matching wall systems and cold roof systems and also available, specified separately.

General information

Color	Gold Grey Black Blue Red
Finish	Coated Matt Textured Smooth PVdF
Material	Steel Aluminium Mineral wool
Shape	Other Guidance for specification option: Sinusoidal.
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	25 year Guidance for specification option: A Vieo system guarantee is available for up to 25 years; consult manufacturer for details.

Uniclass	Ss_30_40_65_50 Metal profiled sheet self-supporting roof covering systemsPrimary
CAWS	H31/10 Metal H31/120 Metal

Specification data - Metal profiled sheet self-supporting roof covering systems

System performance	Guidance for specification option: Insert requirements. Manufacturer guidance Reaction to fire to BS EN 13501-1:2018 (inc. BS EN ISO 11925-2:2020 + BS EN 13823:2020): Classification on component basis only, see individual component guidance or consult manufacturer for details.
Air and vapour control layer	-
Material	Euroclad VCL.
Fasteners	Manufacturer's standard.
Sealing	Euroclad VCL Sealing Tape.
Spacers	Euroclad RocBar. Manufacturer guidance RocSlab25 insulation between bars; see Thermal insulation.
Acoustic insulation	Not applicable.
Thermal insulation	RocSlab 50 mm and RocSlab25. Guidance for specification option: System depth: 104.2 mm. System weight: 21.43 kg/m². U-value from calculation: NPD. RocSlab 50 mm + 50 mm and RocSlab25. Guidance for specification option: System depth: 154.2 mm. System weight: 28.49 kg/m². U-value from calculation: NPD. RocSlab 115 mm and RocSlab25. Guidance for specification option: System depth: 169.2 mm. System weight: 28.51 kg/m². U-value from calculation: 0.25 W/m²K. RocSlab 150 mm and RocSlab25. Guidance for specification option: System depth: 204.2 mm. System weight: 32.79 kg/m². U-value from calculation: 0.20 W/m²K. RocSlab 50 mm + 115 mm and RocSlab25. Guidance for specification option: System depth: 219.2 mm. System weight: 35.56 kg/m². U-value from calculation: 0.19 W/m²K. RocSlab 170 mm and RocSlab25. Guidance for specification option: System depth: 224.2 mm. System weight: 35.28 kg/m². U-value from calculation: 0.18 W/m²K. RocSlab 50 mm + 150 mm and RocSlab25. Guidance for specification option: System depth: 254.2 mm. System weight: 39.84 kg/m². U-value from calculation: 0.16 W/m²K. RocSlab 205 mm and RocSlab25. Guidance for specification option: System depth: 259.2 mm. System weight: 39.59 kg/m². U-value from calculation: 0.15 W/m²K. RocSlab 50 mm + 170 mm and RocSlab25. Guidance for specification option: System depth: 274.2 mm. System weight: 42.32 kg/m². U-value from calculation: 0.14 W/m²K. RocSlab 115 mm + 115 mm and RocSlab25. Guidance for specification option: System depth: 284.2 mm. System weight: 42.68 kg/m². U-value from calculation: 0.14 W/m²K. RocSlab 50 mm + 205 mm and RocSlab25. Guidance for specification option: System depth: 309.2 mm. System weight: 46.63 kg/m². U-value from calculation: 0.13 W/m²K. RocSlab 115 mm + 150 mm and RocSlab25. Guidance for specification option: System depth: 319.2 mm. System weight: 46.95 kg/m². U-value from calculation: 0.13 W/m²K. RocSlab 115 mm + 170 mm and RocSlab25. Guidance for specification option: System depth: 339.2 mm. System weight: 49.39 kg/m². U-value from calculation: 0.11 W/m²K. RocSlab 150 mm + 150 mm and RocSlab25. Guidance for specification option: System depth: 354.2 mm. System weight: 51.34 kg/m². U-value from calculation: 0.11 W/m²K. RocSlab 150 mm + 170 mm and RocSlab25. Guidance for specification option: System depth: 374.2 mm. System weight: 51.78 kg/m². U-value from calculation: 0.10 W/m²K. RocSlab 115 mm + 205 mm and RocSlab25. Guidance for specification option: System depth: 374.2 mm. System weight: 53.78 kg/m². U-value from calculation: 0.10 W/m²K. RocSlab 170 mm + 170 mm and RocSlab25. Guidance for specification option: System depth: 394.2 mm. System weight: 56.40 kg/m². U-value from calculation: 0.10 W/m²K. RocSlab 150 mm + 205 mm and RocSlab25. Guidance for specification option: System depth: 409.2 mm. System weight: 58.23 kg/m². U-value from calculation: 0.10 W/m²K. RocSlab 170 mm + 205 mm and RocSlab25. Guidance for specification option: System depth: 429.2 mm. System weight: 60.68 kg/m². U-value from calculation: 0.09 W/m²K. Manufacturer guidance Insulation lambda claim - thermal: 0.036 W/m·K. 25 mm-thick RocSlab between RocBars.
External sheets	-
Material	0.70 mm steel, S220 GD + ZA255. 0.70 mm steel, S220 GD + Z275.
Primary fasteners	Stainless steel fixings (Vieo sliding clips and Vieo clip fixings); RocTube plastic tubes. Guidance for specification option: Vieo sliding clips are for attachment of Vieo sheets; Vieo clip fixings are for attachment of Vieo sliding clips to various substrates. Both are Class A1 to BS EN 13501-1:2018.
End and side laps	Vieo Closures. Guidance for specification option: For completion of detailing and ends and edges of Vieo sheets. Aluminium, Class A1 to BS EN 13501-1:2018.
Gutters	-
Material	Guidance for specification option: Consult manufacturer for options and insert requirements, or omit.
Support	Guidance for specification option: Consult manufacturer for options and insert requirements, or omit.
Fasteners	Guidance for specification option: Consult manufacturer for options and insert requirements, or omit.
Jointing	Guidance for specification option: Consult manufacturer for options and insert requirements, or omit.
System accessories	Euroclad Separation Tape. None.

Colour/ Finish	Tata Steel Colorcoat Prisma®. Guidance for specification option: To BS EN 13501-1:2018: A1 (WF 428213). To BS EN 13501-5:2016: B_ROOF(T4) (Commission Decision 2000/553/EC). Tata Steel Colorcoat Prisma® - Textured. Guidance for specification option: To BS EN 13501-1:2018: A2-s1, d0 (WF 504598). To BS EN 13501-5:2016: B_ROOF(T4) (Commission Decision 2000/553/EC). Tata Steel Colorcoat HPS200 Ultra®. Guidance for specification option: To BS EN 13501-1:2018: C-s2,d0 (WF 501358). To BS EN 13501-5:2016: B_ROOF(T4) (19942L).
System depth	Manufacturer's standard. Guidance for specification option: Dependent on insulation thickness; see Thermal insulation guidance for details.
Weight	Manufacturer's standard. Guidance for specification option: Dependent on insulation thickness; see Thermal insulation guidance for details.
Orientation	Lengthwise, downslope.
Sheet width	Cover width: 454 mm. Guidance for specification option: As standard. Can also be supplied in variable widths to give a concertina-style effect (on request).
Third-party certification	BBA Certificate 04/4151 Product Sheet 4.
