Vieo Cold Roof TB - Standing Seam Roof Covering System

Name: Vieo Cold Roof TB - Standing Seam Roof Covering System
Brand: Euroclad Group Ltd
SKU: qEgRVMzXWHxAGVhzUEMNN2

Verified by manufacturer today

Euroclad Group Ltd

Cold roof self-supporting system roof, using timber battens.

Jump to:

+44 (0)2922 010101 Website

Application

Cold roof system has been specifically designed for use on long strip, hard metal roofs as a simple but durable and attractive covering.

Suitable for a wide range of building applications, suitable for use with residential, commercial and public buildings.

Description

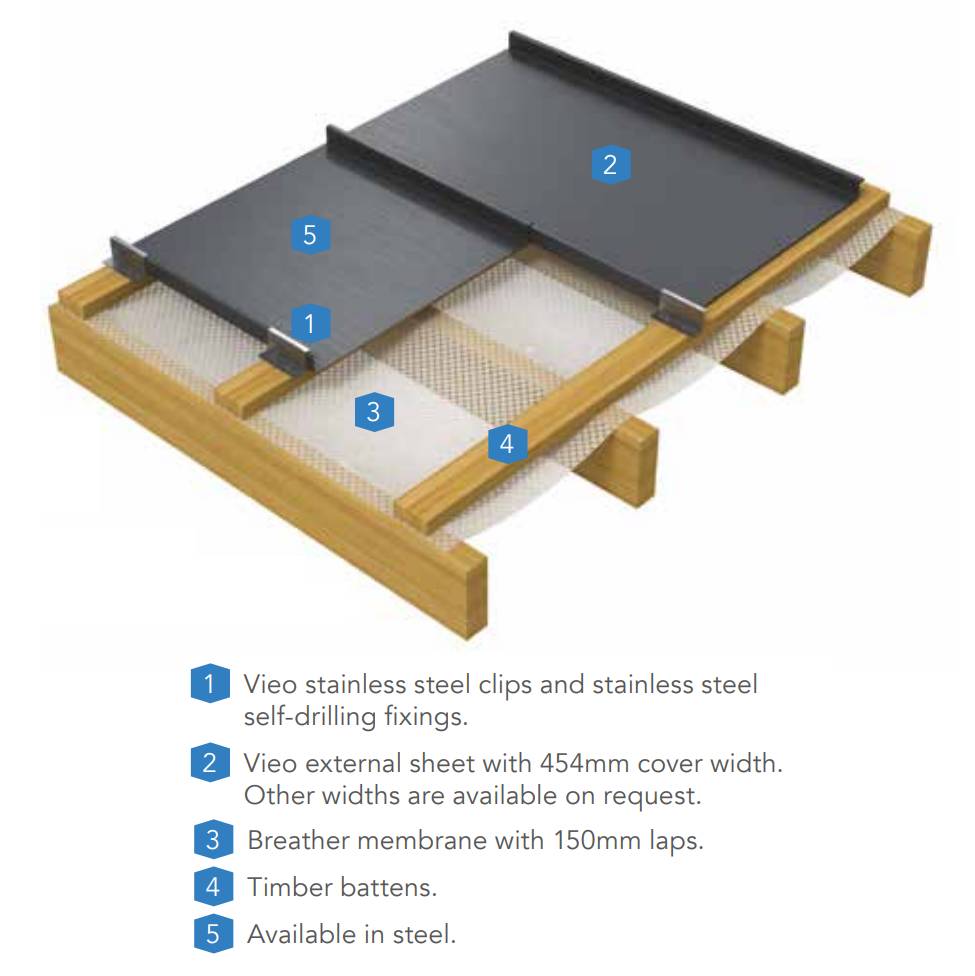

Cold roof self-supporting system roof, using timber battens. This allows the sheets to be fixed without a continuous supporting substrate and to be fixed to supports such as timber battens as used for tiling or to provide ventilation on SIPS if required.

Features and benefits:

Interlocking steel sheets.
BBA certified.
Vieo systems are available in straight, curved and tapered sheet options, enabling creation of creative architectural forms.
Vieo sheets are available in variable widths allowing for feature band design.
To be installed lengthwise downslope as standard.
Simple, guaranteed alternative to traditional systems.
Can be applied to roof and walls (walls specified separately).
Hidden fixings for a clean, attractive finish.
Factory manufactured or produced on-site using specialist mobile equipment.
Can be used to contribute to Passivhaus standards.
Available in straight, curved and tapered sheet options.
Measured acoustic performances can be obtained through consultation with the manufacturer’s Technical Department.
External steel sheet available in a range of coatings and colours.

Matching wall systems or roof system for use with timber deck (TD) as a support structure are also available, both specified separately.

General information

Color	Gold Grey Black Blue Red
Finish	Coated Matt Textured Smooth
Material	Steel
Shape	Other Guidance for specification option: Sinusoidal.
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	25 year Guidance for specification option: A Vieo system guarantee is available for up to 25 years; consult manufacturer for details.

Uniclass	Ss_30_40_65_50 Metal profiled sheet self-supporting roof covering systemsPrimary
CAWS	H31/120 Metal H31/10 Metal

Specification data - Metal profiled sheet self-supporting roof covering systems

System performance	Guidance for specification option: Insert requirements. Manufacturer guidance Reaction to fire to BS EN 13501-1:2018 (inc. BS EN ISO 11925-2:2020 + BS EN 13823:2020): Classification on component basis only, see individual component guidance or consult manufacturer for details.
Acoustic insulation	Not applicable.
Thermal insulation	Not applicable.
Breather membrane	-
Material	Euroclad B Breather Membrane. Guidance for specification option: With 150 mm laps.
Joint sealant	Manufacturer's standard.
External sheets	-

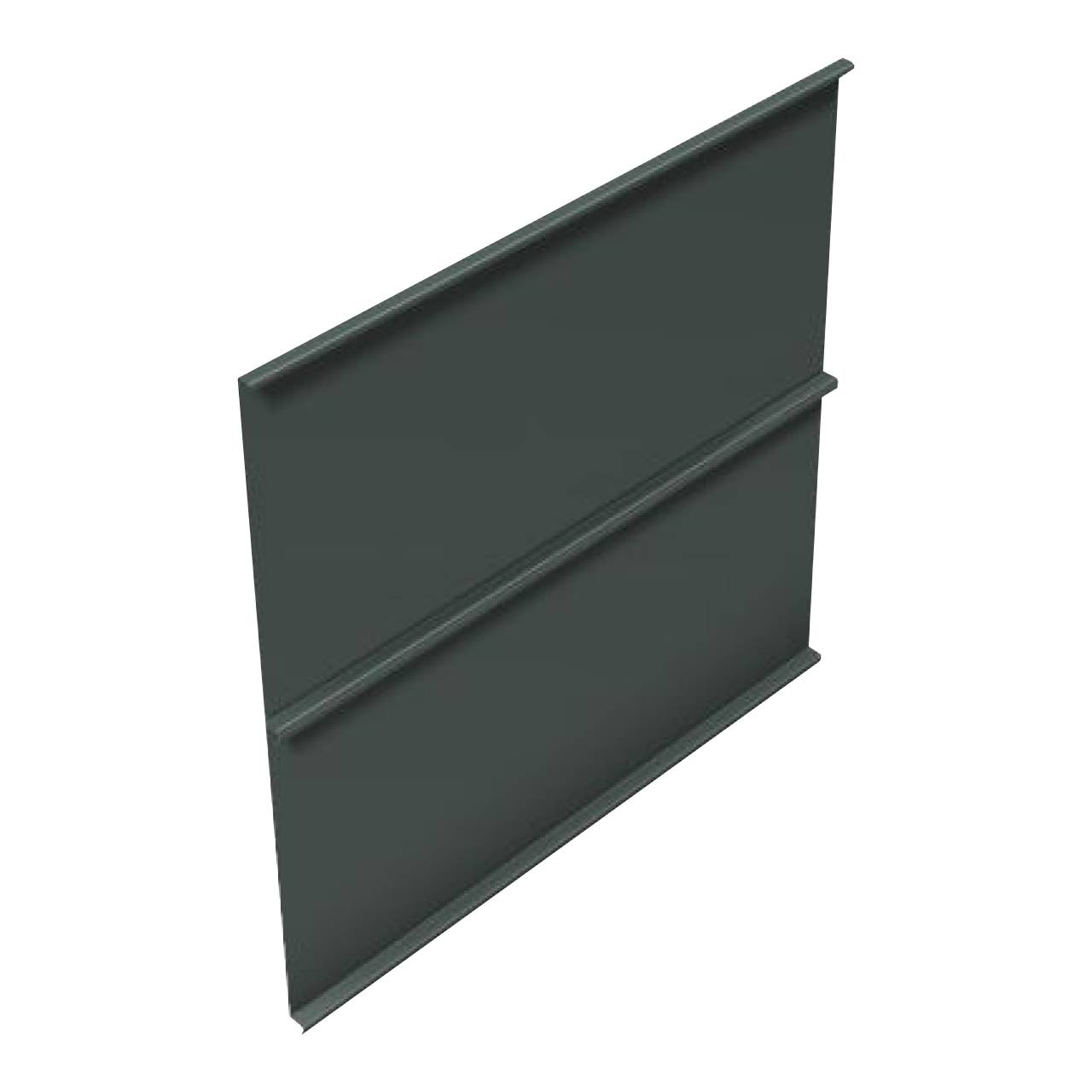

Material	EC 25-454 Vieo, 0.70 mm steel, S220 GD + ZA255. EC 25-454 Vieo, 0.70 mm steel, S220 GD + Z275.
Primary fasteners	Stainless steel fixings (Vieo sliding clips and Vieo clip fixings). Guidance for specification option: Vieo sliding clips are for attachment of Vieo sheets; Vieo clip fixings are for attachment of Vieo sliding clips to various substrates. Both are Class A1 to BS EN 13501-1:2018.
End and side laps	Vieo Closures. Guidance for specification option: For completion of detailing and ends and edges of Vieo sheets. Aluminium, Class A1 to BS EN 13501-1:2018.
Gutters	-
Material	Guidance for specification option: Consult manufacturer for options and insert requirements, or omit.
Support	Guidance for specification option: Consult manufacturer for options and insert requirements, or omit.
Fasteners	Guidance for specification option: Consult manufacturer for options and insert requirements, or omit.
Jointing	Guidance for specification option: Consult manufacturer for options and insert requirements, or omit.
System accessories	Euroclad Separation Tape. None.

Colour/ Finish	Tata Steel Colorcoat Prisma®. Guidance for specification option: To BS EN 13501-1:2018: A1 (WF 428213). To BS EN 13501-5:2016: B_ROOF(T4) (Commission Decision 2000/553/EC). Tata Steel Colorcoat Prisma® - Textured. Guidance for specification option: To BS EN 13501-1:2018: A2-s1, d0 (WF 504598). To BS EN 13501-5:2016: B_ROOF(T4) (Commission Decision 2000/553/EC). Tata Steel Colorcoat HPS200 Ultra®. Guidance for specification option: To BS EN 13501-1:2018: C-s2,d0 (WF 501358). To BS EN 13501-5:2016: B_ROOF(T4) (19942L).
System depth	29.15 mm.
Weight	6.74 kg/m².
Orientation	Lengthwise, downslope.
Sheet width	Cover width: 454 mm. Guidance for specification option: As standard. Can also be supplied in variable widths to give a concertina-style effect (on request).
Third-party certification	BBA Certificate 04/4151 Product Sheet 4.
