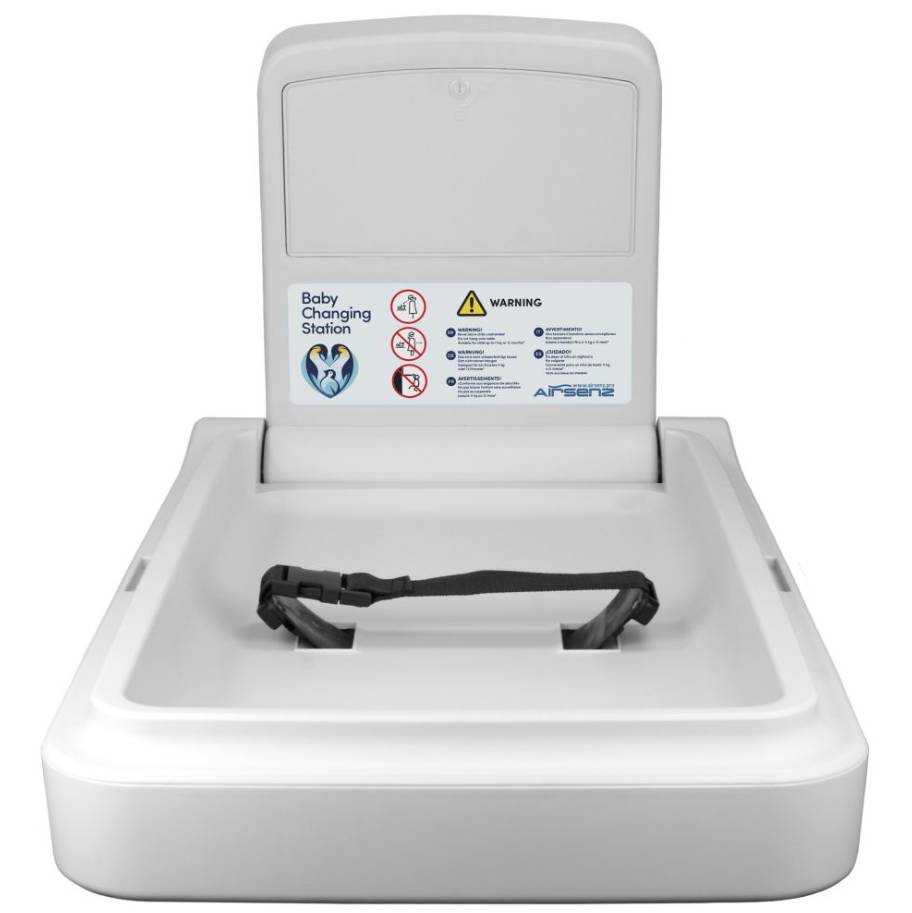

Vertical Wall Mounted Baby Changing Table

Verified by manufacturer 2 months ago

FW3

Commercial wall mounted vertical baby changing table.

Jump to:
BOS
+44 (0)1823 672 970 Website

Application

Baby change unit suitable for use in various commercial locations, such as restaurants, hotels, hospitals, shopping centres, airports, and stations.

Description

Reliable, strong, and hygienic vertical baby changing table for the safe support of infants and babies.


Features and benefits:

  • Safe: equipped with a deep concave shape and an adjustable safety strap for secure infant support.
  • Hygienic: baby changer made of anti-microbial HDPE material that is easy to clean and resists odours and bacterial growth.
  • Reliable: strong and reliable table, due to robust construction.
  • Easy to use: easy to open and close, as well as simple to clean.
  • Space saving design: slim, horizontal, space saving baby changer design.
  • Maximum capacity: 11kg
  • Fixings included.


Guidance for installers: this baby changing unit is wall mounted, with fixings all included.

General information

Color

White

Cream

Finish

Anti-microbial

Material

High density polyethylene (HDPE)

Shape

Other

Guidance for specification option:

Concave.

Rectangle

Length

870 mm

Width

480 mm

Height

126 mm

Warranty description

One year

Uniclass

Pr_40_20_76_06 Baby changing unitsPrimary

CAWS

N13/494 Baby changing units

Product range

Washroom Products
All Products

Specification data - Baby changing units

Form

Wall-mounted, fold down.

Material

HDPE.

Finish and colour

White.

Size (nominal)

480 x 870 mm.

Guidance for specification option:

Closed.

Manufacturer guidance

Unit Size Open: 458 x 480 x 885 mm (H x W x D).

Unit Size Closed: 870 x 480 x 126 mm (H x W x D).

Integral accessories

Adjustable restrain belt.

Load

11 kg (maximum).

Weight

16 kg.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

China

Material

High density polyethylene (HDPE)

Recyclability

Yes - the plastic can be recycled

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Vertical Baby Changing Table User Manual

Vertical Baby Changing Table User Manual
