Description

Interlocking vertical joint rainscreen cladding system including aluminium panels with a vertical fin. Based on a vertical plank interlocking panel system with an aluminium fin to create a shadow line on the facade of the building.

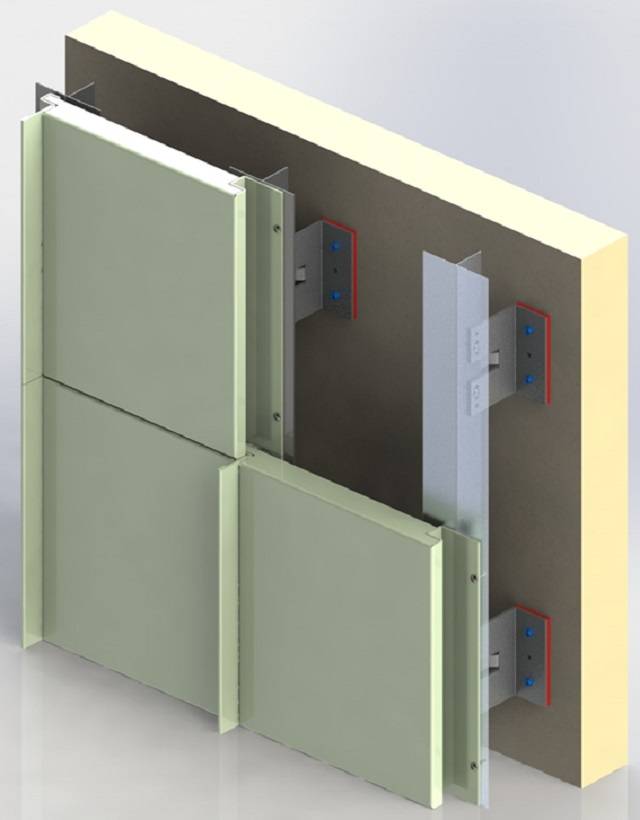

The vertical side flanges of the panels interlock with each other and are then fixed in position from the front. To be attached to the outer wall substrate.

System includes:

  • Thermal isolators.
  • Argonaut aluminium support brackets.
  • Rear ventilated cavity.
  • Argonaut aluminium carrier system.
  • Rainscreen cladding panels.
  • Fins.

General information
Material

Aluminium alloy (grade 1050 H14)for panels

Aluminium alloy (grade 5083) for Argonaut aluminium support brackets

Aluminium alloy (grade 6063-T6) for Argonaut aluminium carrier rail

Uniclass 2015 Drained and back-ventilated rainscreen cladding systems (Ss_25_20_70_25)
Specification data
Product Reference

Vertical Interlocking Cladding (With Fin)

Finish/ Colour

Anodized

Polyester powder coated (PPC)

Insert colour requirement.

Standard product features

Material:

  • Aluminium alloy (grade 1050 H14)for panels.
  • Aluminium alloy (grade 5083) for Argonaut aluminium support brackets.
  • Aluminium alloy (grade 6063-T6) for Argonaut aluminium carrier rail.

Thickness:

3 mm.

Horizontal and vertical joint width (minimum):

1–2 mm.

Rail centres:

600 mm.

Fixings:

Self-drilling screws.

Product Options

Panel size (w x l):

  • Maximum: 300 x 3850 mm.
  • Wider panels available subject to a Structural Engineer's report; consult manufacturer for details.

Finish/ Colour:

Polyester powder coated (PPC): Conforms to BS EN 12206-12004. Consult manufacturer for colour options.
