Vermiculux® - S

Verified by manufacturer 5 months ago

Promat UK Third party certifications:
  • Certifire Certificate

    Certifire Certificate

    Certificate type

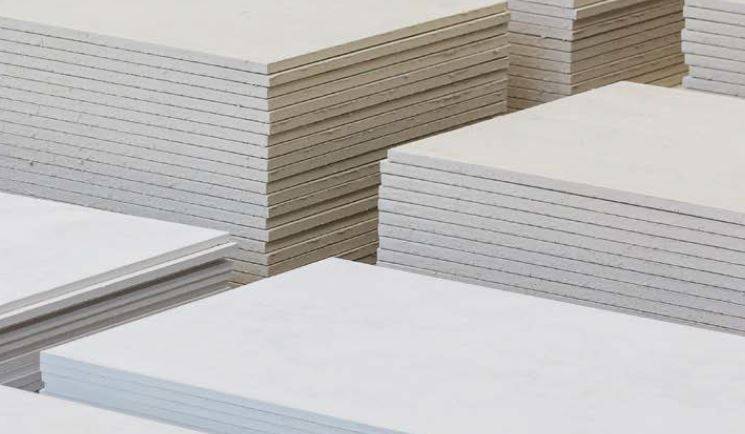

A1 non-combustible calcium silicate board.

Jump to:
0800 145 6033 Website

Application

Used to protect one, two, three or four sided encasements to universal columns and beams, joists and RSJs, structural hollow sections, bracing, lattice beams, partially exposed members, perimeter beams, beams supporting composite floors with profiled metal decking and wind posts.

Description

An A1 non-combustible calcium silicate board which provides 30 minutes to 240 minutes fire protection to structural steel.


The board has permanent dimensional stability, so in the event of a fire it reduces the speed at which the steelwork will heat up, allowing it to maintain its loadbearing capacity for longer.


Features and benefits:

  • Lightweight (9.6-24 kg/m²).
  • Available in a range of thicknesses.
  • Thinner solution when compared to other fire-resistant constructions.
  • Can be installed before the building is weathertight.
  • Can accept a decorative finish.
  • Fully tested and certified (IS014001, ISO9001).
  • Independently Certified by Warrington Fire (CF 5757).
  • Responsibly sourced materials.
  • Providing up to 240 minutes fire resistance for a limiting steel temperature of 550°C.

General information

Color

White

Finish

Smooth

Guidance for specification option:

Smooth sanded surface on one face with a lightly honeycombed texture on the reverse face.

Material

Calcium silicate

Shape

Rectangle

Length

2500 mm

Width

1200 mm

Height

20 mm

25 mm

30 mm

35 mm

Warranty description

-

Manufacturer guidance

Product Warranty available, terms and conditions apply.

Uniclass

Pr_25_71_80_23 Fibre-reinforced calcium silicate boardsPrimary

CAWS

K11/60 Board

K11/885 Fire protection board

Specification data - Fibre-reinforced calcium silicate boards

Standard

BS 476-21.

Reaction to fire class

Non-combustible with a reaction to fire Classification of A1 according to BS EN:13501-1.

Third-party product certification

Certifire CF5757.

Sheet size

1200 x 2500 mm.

Thickness

20 mm.

25 mm.

30 mm.

35 mm.

Edges

Square.

Finish as delivered

Smooth sanded surface on one face with a lightly honeycombed texture on the reverse face.

Colour

Off-white.

Nominal dry density

480 kg/m³.

Form

Steelwork encasements for structural beams and columns.

ThermalConductivity

0.09 W/mK.

Fire performance

Up to 240 minutes.

Guidance for specification option:

Application dependent.

Third party certifications

Certifire Certificate

Certifire Certificate

CF5757 Promat VERMICULUX®-S

Literature

Vermiculux-S Protection Of Structural Steel Brochure

Vermiculux-S Protection Of Structural Steel Brochure
