VCDM - High Temperature Volume Control Damper (≤1200x1200mm) - Volume Control Damper
Verified by manufacturer 15 days ago
Certificate of Conformity
Certificate type
High temperature volume control damper.
Application
- Dampers are designed for installation with horizontal or vertical axis of the blades.
- Dampers can be mounted in ductwork and insulated to meet the requirements of the ductwork system.
Description

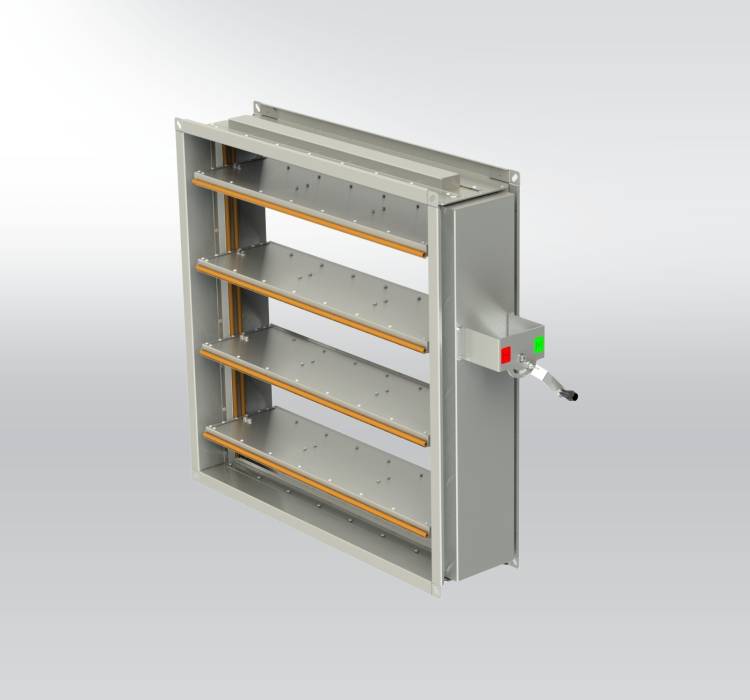

Mandik VCDM is a volume control damper suitable for use at high temperatures. The VCDM can be used to control and balance the airflow through connecting ductwork and has been tested for high temperature applications.
The damper comes equipped with a manual handle which can be sent incrementally to set the position of the blades. An extended spindle allows for the damper to be insulated to meet the requirements of the ductwork.
Features and beenfits:
- Square dampers from 200 x 200 mm to 1200 x 1200 mm.
- Tested in accordance with BS EN 1366-1.
- Mechanical handle with extended spindle to set position of the blades.
General information
Color | Silver |
Finish | Galvanized |
Material | Steel |
Shape | Rectangle Square |
Width | 200 mm 250 mm 300 mm 350 mm 400 mm |
Height | 200 mm 250 mm 300 mm 350 mm 400 mm |
Uniclass | |
CAWS | U90/447 Dampers, manual |
Specification data - Shut-off dampers
Standard | To EN 1751. |
Leakage through closed blades | Class 3. |
Casing leakage | B. |
Material | Galvanized sheet steel. |
Control method | Manual. |
Fire resistance | To EN 1366-1, Type B for 120 minutes. Manufacturer guidanceThe damper will require a Flamebar BW11 or BW18 coating to achieve fire resistance to BS EN 1366-1. |
Sustainability data
Material | Steel |
Third party certifications
Certificate of Conformity

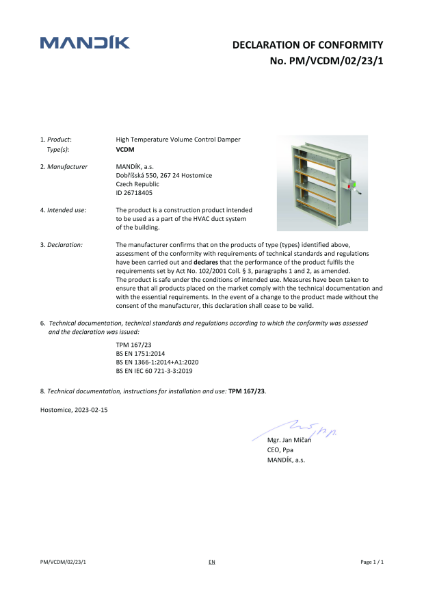

VCDM – Declaration of conformity
Literature

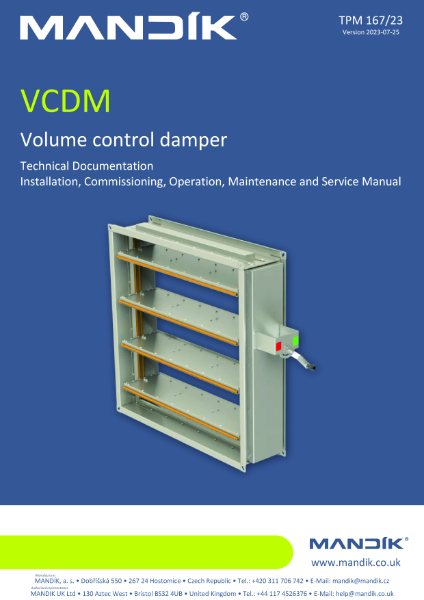

VCDM – Technical specifications (167/23)
