Description

Variset is a Design Council award winning range of hat and coat hooks that can be either fixed individually or as multiple hook units. Multiple hooks and spacers slide on a backplate to give hooks at any spacing but as standard they are offered at either 95 mm or 190 mm centres. Hooks at 95 mm centres require 75 mm spacers and hooks at 190 mm centres require 170 mm spacers.

Multiple hooks can be one type or a combination of the two types at either of the two centres or a mixture of both.

Variset hooks are available in silver anodised aluminium or powder coated in a comprehensive range of RAL colours.

Hook range:

  • Type H: Hat and coat hook: 110 mm projection x 85 mm high overall; backplate 72 mm high.

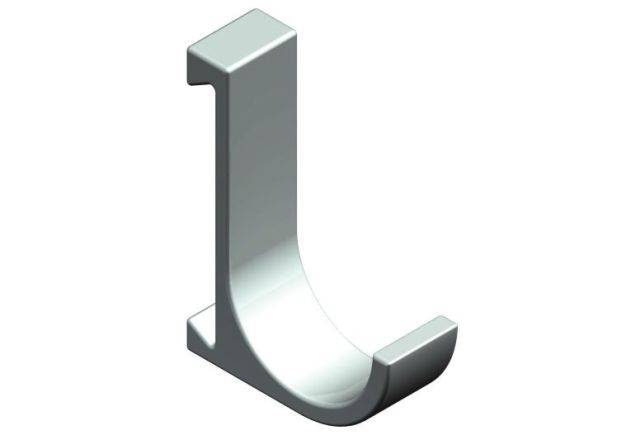

  • Type W: Coat Hooks: 56 mm projection x 72 mm high.

Fixing:

  • Single hooks: Screw plastic mounting block to wall, position hook and secure with grub screw.
  • Multiple hooks: Screw aluminium backplate to wall with fixings to suit wall type, slide on hooks and spacers, screw in end pressure plates and snap in end caps.

Accessories:

Binns can supply a range of accessories to increase security.

General information
Uniclass 2015
Coat racks (Pr_40_30_78_17)Primary
Specification data - Coat racks
Product Reference

Variset Single Hook Units Type V1/W

Variset Single Hook Units Type V1/H

Variset Multiple Hook System Type W75

Variset Multiple Hook System Type H75

Variset Multiple Hook System Type HW 75

Variset Multiple Hook System Type W170

Variset Multiple Hook System Type H170

Variset Multiple Hook System Type HW170

Finish/ Colour -
Finish

Silver anodized

Nylon coated

Polyester coated

Fittings

75 mm Spacers

170 mm Spacers

Backplates for multiple hook units

Single hook mounting blocks

End caps for multiple hook units

Numbering hooks

Special spacers for corners/ recesses

Semi-island units to project from walls

Product Options

Colour:

Polyester or nylon coated in a comprehensive range of RAL colours. Consult manufacturer for details.

Fittings:

Consult manufacturer for details.
