V77 Elite SR2 Aluminium Security Shutter

Name: V77 Elite SR2 Aluminium Security Shutter
Brand: Roché Systems Ltd
SKU: iQCBiLRnxUDXdQGNgZLvPD

Verified by manufacturer 2 months ago

Roché Systems Ltd

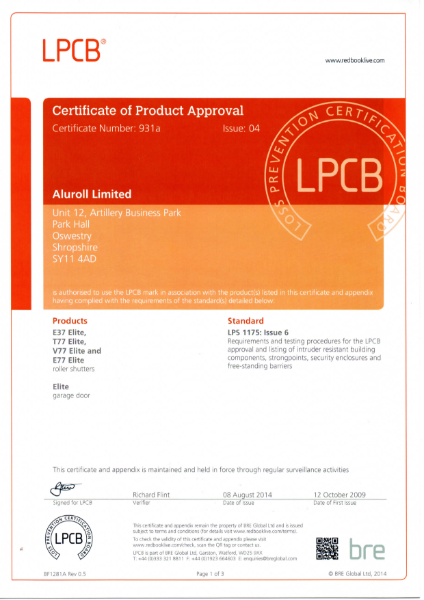

Third party certifications:

QA Certificate
Certificate type

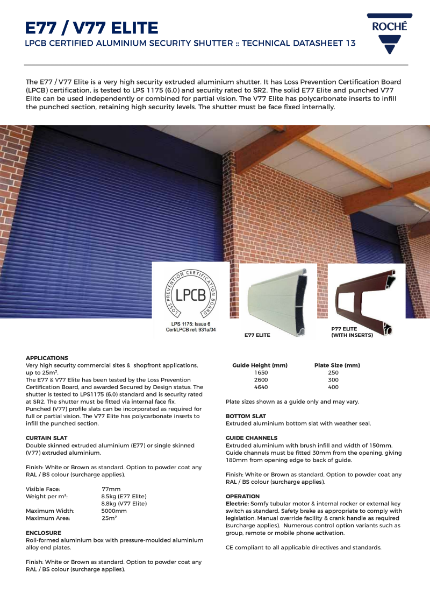

LPCB SR2 insurance approved extruded aluminium security roller shutters with 77 mm high slats.

Jump to:

0800 085 1461 Website

Application

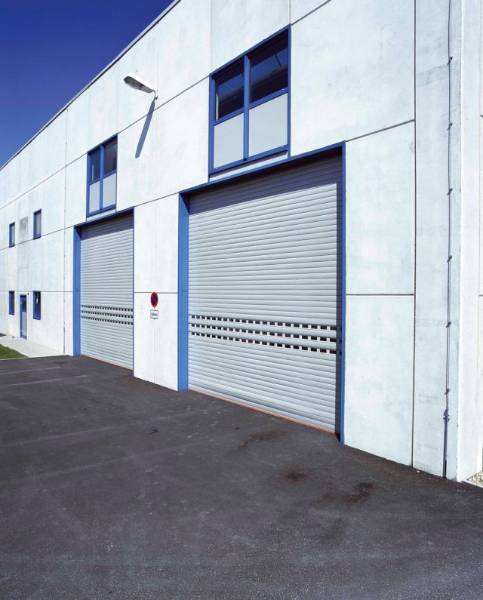

Suitable for commercial sites and shopfronts that require high security.

Description

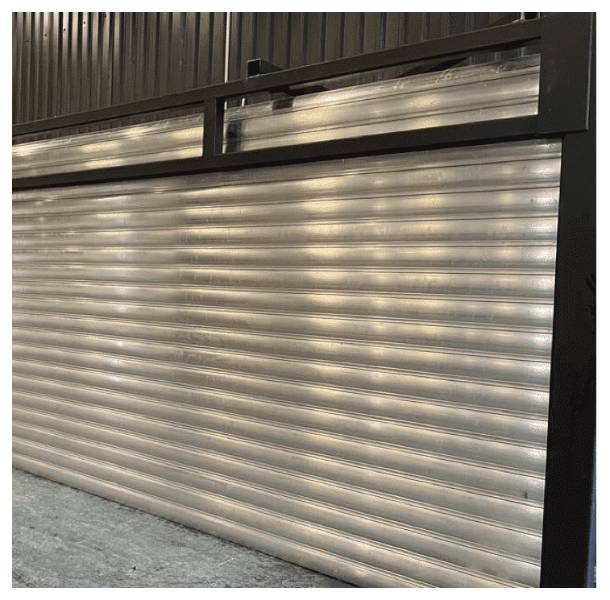

Extruded aluminium security roller shutters with 77 mm high slats and designed to suit specific site requirements.

Features and benefits:

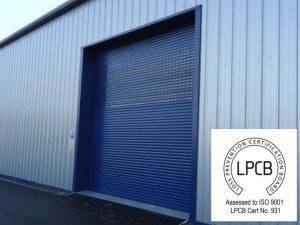

Tested by the Loss Prevention Certification Board (LPCB) to LPS 1175 SR2 and awarded insurance approved 'Secured by Design' status. Mounted internally, externally or reveal fixed.
Span up to 5 m in width and an area up to 25 m².
Available with solid and punched profiles.

General information

Color	White Brown Other Option to powder coat any RAL/ BS colour or laminate wood effect (surcharge applies).
Finish Option to powder coat any RAL / BS colour or laminate wood effect (surcharge applies).	Galvanized Laminated Plastisol coated - wood effect. Powder-coated
Material	Aluminium
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	One year

Uniclass	Pr_30_59_84_73 Roller shuttersPrimary
CAWS	L20/60 Doors L20/610 Roller shutters/ curtains

Product range	Vision Roller Shutters

Specification data - Roller shutters

Opening sizes Enclosure size (internal face fix): Dependent on height. <2700 mm: 300 mm. 2700–3640 mm: 360 mm. 3640–4600 mm: 400 mm.	5000 x 4000 mm. Available up to 5000 x 4600 mm (w x h).
Arrangement	Vertical, external face fix. Vertical, internal face fix. Vertical, reveal fix.
Shutter curtain.	-
Lath material	Aluminium. 18.5 mm thick solid single skinned extruded aluminium, 77 mm in height.
Finish and colour Option to powder coat any RAL / BS colour or laminate wood effect (surcharge applies).	Galvanized. Standard finish. Powder coated - Brown. Standard colour. Powder coated - White. Standard colour. Powder coated - BS. Insert colour requirement. Powder coated - RAL. Insert colour requirement. Laminated wood effect.
Frame and guides	-
Material	Aluminium. Enclosure: Roll formed aluminium box with pressure-moulded aluminium alloy end caps. Guide channels: 150 mm deep heavy duty extruded aluminium. To comply with LPCB certification, the channels must be installed 30 mm from the opening, allowing 180 mm from the opening edge to the back of the guide channels. Bottom slat: Extruded aluminium with brush and rubber weather seals.
Finish	Galvanized. Standard finish. Powder coated. See below for colour requirements.
Colour	Not required. Galvanized. Brown. Standard colour. White. Standard colour. Powder coated - BS. Insert BS colour code. Powder coated - RAL. Insert RAL colour code.
Operation	-
Mode	Automatic. Somfy Electric Single Phase (Tubular Motor) with safety brake.
Control	Somfy tubular motor and internal rocker or external key switch as standard. NRG tubular motor and internal rocker or external key switch as standard.
Accessories	Not required. Manual override facility. Polycarbonate infills.

Guide channel depth	150 mm. Guide channels must be fitted 30 mm from the opening, giving180 mm from opening edge to back of guide.
Weight	5.5 k.g./m².
Enclosure	Box. Circular.
