V3 | Sahara Glass - Toilet cubicle

Name: V3 | Sahara Glass - Toilet cubicle
Brand: Venesta Washroom Systems Ltd
SKU: dPqyQL9aW6sKKasCb6B4hz

Verified by manufacturer 5 months ago

Venesta Washroom Systems Ltd

A glass-clad, premium toilet cubicle range.

Jump to:

+44 (0)1474 353333 Website

Application

Suitable for dry commercial washrooms environments when a high-end toilet cubicle range is required.

Description

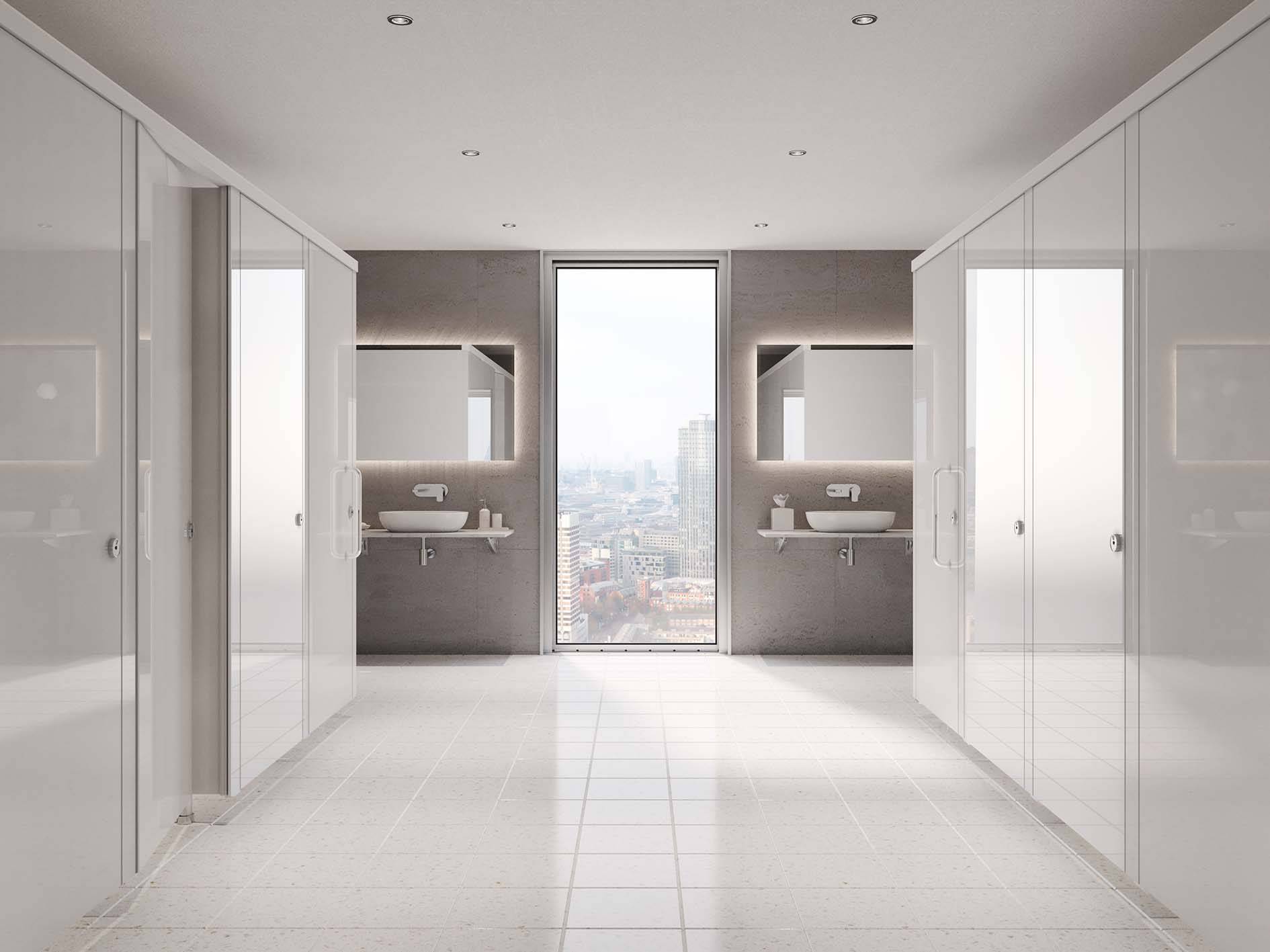

A premium toilet cubicle range. The slimline, flush fronted design creates a prestigious look for high end commercial washrooms.

Sahara has a pivot hinge system for soft self-closing doors, satin anodized aluminium pilasters clad in black or white glass and powder-coated aluminium headrails.

Sahara Glass' doors, pilasters and partitions are clad in black or white double back painted 4 mm toughened safety glass.

General information

Color	Black White Other
Finish	Glazed
Material	Medium density fibreboard (MDF)
Length	2086 mm
Width	850 mm
Height	2193 mm
Warranty description	Ten year

Uniclass	Ss_25_12_60_60 Panel cubicle systemsPrimary
CAWS	K32/120 Panel cubicles K32/10 Panel cubicles

Product range	Cubicles / V3 Toilet Cubicles

Specification data - Panel cubicle systems

Description	Glass-clad, premium toilet cubicle range.
System manufacturer	Venesta Washroom Systems Ltd.
Panels	High-performance medium-density 720 kg/m³ grade fibreboard (MDF), faced 4 mm toughened double back-painted safety glass to both sides. Nominal thickness: 26 mm. Manufacturer guidance Specify Colour/ Finish below.
Panel supports	100 mm stainless steel pedestals. Guidance for specification option: Standard. 50 mm stainless steel pedestals. 150 mm stainless steel pedestals. 230 mm stainless steel pedestals. Guidance for specification option: For export only. Manufacturer guidance Pedestal adjustment: +10 mm.
Pilasters	Satin anodized aluminium extrusions, clad with 4 mm toughened double back-painted safety glass. Nominal thickness: 36 mm.
Doors	28 mm-thick high-performance medium-density 720 kg/m³ grade fibreboard (MDF) faced 4 mm toughened double back-painted safety glass to both sides. Nominal thickness: 36 mm. Manufacturer guidance Specify Colour/ Finish below.
Hardware	Indicator bolt: stainless steel modular flip-style indicator bolt with mortice lock. Stainless steel circular face plate with exclusive emergency release facility. Hinges: floating soft self-closing stainless steel pilaster mounted pivot hinges (supplied as an assembly). Hardware material/ colour finish: satin anodized aluminium and stainless steel.
System accessories	None. Document M 2004 compliant grab rails and door pulls. Venesta toilet roll holder. Venesta coat hook.

Cubicle height (overall)	2139 mm. Guidance for specification option: Standard; from finished floor level to top of headrail. Other. Guidance for specification option: Insert requirements; maximum height up to 2909 mm from finished floor level to top of headrail.
Colour/ Finish	Black. White.
Headrail	40 mm slimline black powder-coated aluminium with matching end cap. 40 mm slimline white powder-coated aluminium with matching end cap. Manufacturer guidance See also Clearance below.
Fixings	Partition to wall fixing: satin anodized aluminium Z-clip. Pilaster to partition fixing: aluminium Z-clip. Pilaster to wall fixing: satin anodized aluminium channel and Z-clip.
Cubicle depth	Guidance for specification option: Insert requirements; up to 2086 mm nominal maximum recommended from face of back wall or rear ducting.
Clearance	Minimum ceiling clearance: 20 mm.
Edge treatment	1 mm nominal matching ABS lipping.
