V2 | Centurion Privacy - Toilet Cubicle
Verified by manufacturer 24 days ago
MFC
MFC

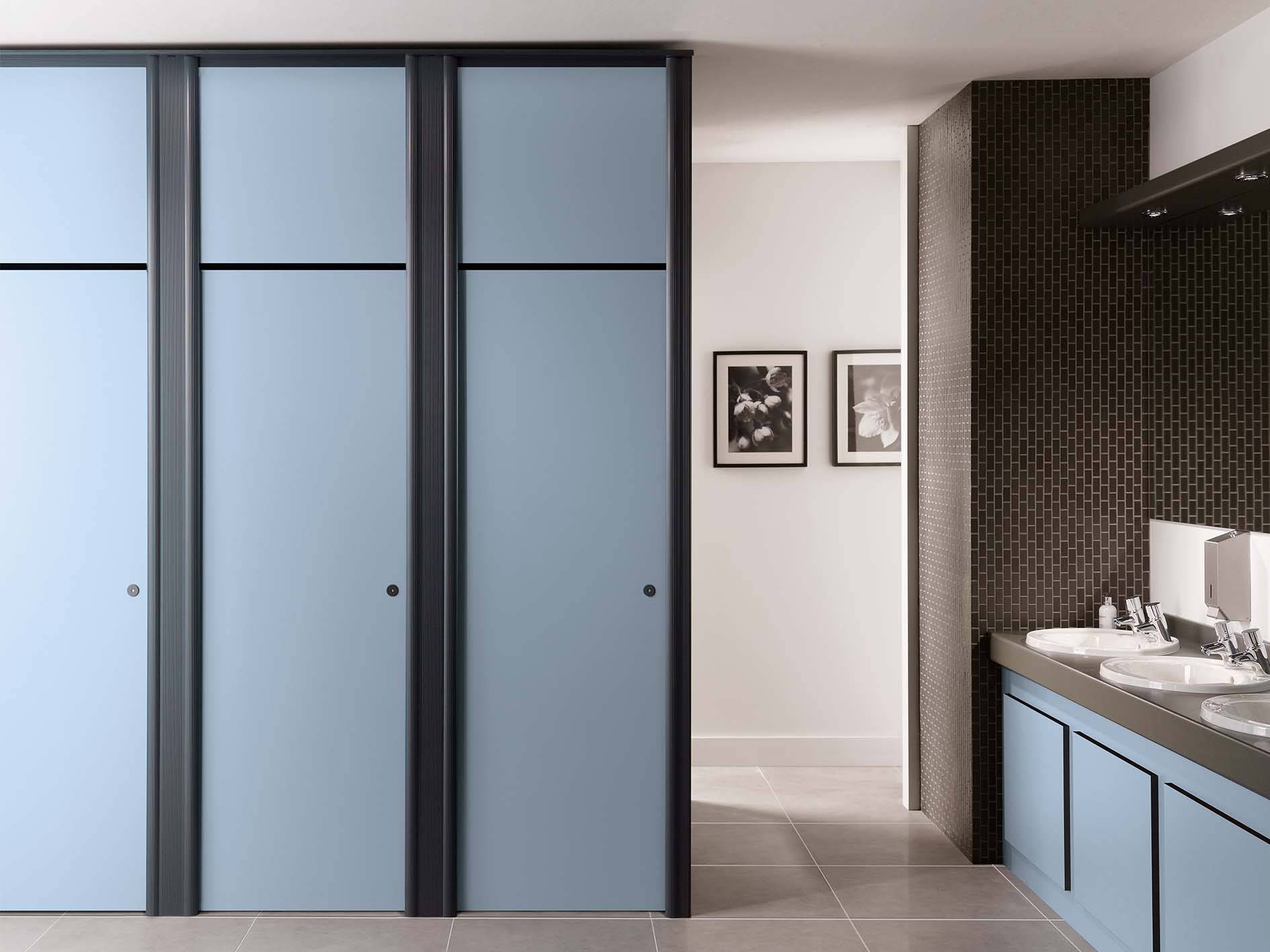

Full privacy, vandal-proof, full height washroom cubicles.
Application
Full privacy floor-to-ceiling toilet cubicle, suitable for schools, colleges and universities.
Description
A strong and durable, floor-to-ceiling toilet cubicle. Full privacy is achieved with a nominal gap under the door so slim it is impossible to even get a mobile phone into the cubicle.
Centurion features a metal-frame, with satin anodized aluminium headrail with rigid pilasters down to the floor for maximum stability and strength. Centurion Privacy cubicles are comprised of full height partitions and overpanels above the doors to create a completely private space.
For more heavily used areas specify HPL, which is heat, scratch, impact and moisture resistant. Edges are lipped with ABS.
Specify SGL for doors and panels manufactured using solid grade laminate, making Centurion cubicles resistant to impact and all surfaces impervious to water.
Specify MFC for Centurion doors and panels manufactured using melamine faced chipboard. Suited to dry environments with minimal risk of vandalism. Edges are lipped with ABS.
General information
Color | Black Blue Cream Green Grey |
Finish | Laminated |
Material | MFC Guidance for specification option: For dry environments with low risk of vandalism. Panels are manufactured from 18 mm nominal thickness high performance moisture-resistant melamine faced chipboard. Edges lipped with ABS. Solid grade laminate (SGL) Guidance for specification option: Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water. Panels are 13 mm nominal thickness with polished black radiused edges. High pressure laminate (HPL) Guidance for specification option: For more heavily used washrooms, panels are heat, scratch and impact resistant. Manufactured from moisture-resistant chipboard faced with high pressure laminate, panels are 18 mm nominal thickness. Edges lipped with ABS. |
Length | 1920 mm 2000 mm |
Width | 850 mm |
Height | 2795 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | K32/112 Fully framed panel cubicles K32/10 Panel cubicles |
Product range |
Specification data - Panel cubicle systems
Panels | 18 mm moisture resistant melamine faced chipboard (MR MFC). |
Panel supports | Satin anodized aluminium and satin anodized effect powder coated zinc. |
Pilasters | High strength extruded fluted satin anodized aluminium pilasters which extend down to floor level and are fixed to floor using mounting blocks. |
Doors | 18 mm moisture resistant melamine faced chipboard (MR MFC). |
Lippings | 1 mm nominal matching ABS. |
Hardware | Satin anodized aluminium rise and fall butt hinge with outward opening hinge option available, satin anodized aluminium u-channels, satin anodized aluminium slide operated bolt with circular faceplate and emergency release facility. Faceplate and keep with concealed fixings. |
System accessories | Not required.Venesta Toilet Roll Holder.Venesta Coat Hook.Document M 2004 Compliant grab rails and door pulls. |
Headrail | High strength extruded satin anodized aluminium headrail. |
Fixings | Continuous satin anodized aluminium u-channel partition to wall fixing. |
Cubicle height (overall) | 2795 mm from FFL to top of headrail. |
Cubicle depth | 2040 mm. |
Clearance | Floor, 5 mm to fronts. Partitions to floor in a 50 mm privacy skirting channel. Ceiling, 7 mm (minimum). |
Colour/ Finish | Rouge (VEN324 | LRV 17). Papaya (VEN370 | LRV 35). Golden (VEN366 | LRV 52). Canary (VEN365 | LRV 65). Lime (VEN354 | LRV 54). |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | MFC Guidance for specification option: For dry environments with low risk of vandalism. Panels are manufactured from 18 mm nominal thickness high performance moisture-resistant melamine faced chipboard. Edges lipped with ABS. Solid grade laminate (SGL) Guidance for specification option: Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water. Panels are 13 mm nominal thickness with polished black radiused edges. High pressure laminate (HPL) Guidance for specification option: For more heavily used washrooms, panels are heat, scratch and impact resistant. Manufactured from moisture-resistant chipboard faced with high pressure laminate, panels are 18 mm nominal thickness. Edges lipped with ABS. |
