V1 | Fusion Full Height - Toilet Cubicle
Verified by manufacturer 1 month ago
SGL
SGL

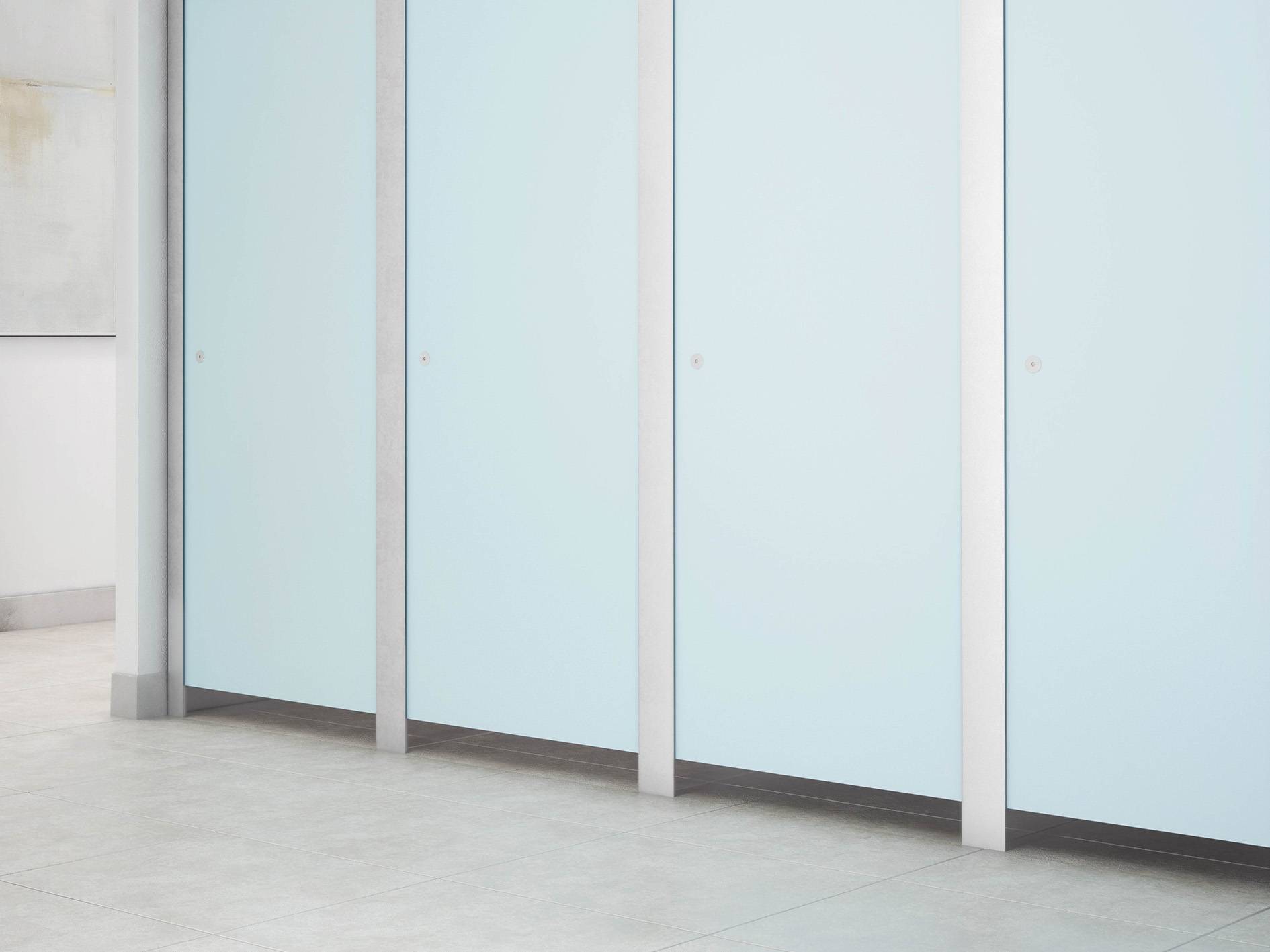

A modern, full height metal-framed cubicle.
Application
A practical option for dry environments with minimal risk of vandalism and any kind of washroom environment.
Description
A modern sleek design, suitable in any setting, Fusion Full Height toilet cubicles have full height partitions and doors to create a private space. Strong, stainless anodised aluminium framed toilet cubicle with floor fixed pilasters for added rigidity, with emergency release bolt as standard.
MFC:
Doors and panels are manufactured using melamine faced chipboard (MFC), which is better suited to dry environments with minimal risk of vandalism. Edges are lipped with ABS.
SGL:
Fusion Full Height SGL (solid grade laminate) is heat, scratch and moisture resistant. Impact resistant so particularly suitable for areas of regular, heavy use such as schools and public areas.
HPL:
Particularly suitable for heavy use areas, high pressure laminate (HPL) is heat, scratch, impact and moisture resistant.
General information
Color | Black Blue Cream Green Grey |
Finish | Laminated |
Material | MFC Guidance for specification option: For dry environments with low risk of vandalism. Panels are manufactured from 18 mm nominal thickness high performance moisture-resistant melamine faced chipboard. Edges lipped with ABS. Solid grade laminate (SGL) Guidance for specification option: Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water. Panels are 13 mm nominal thickness with polished black radiused edges. High pressure laminate (HPL) Guidance for specification option: For more heavily used washrooms, panels are heat, scratch and impact resistant. Manufactured from moisture-resistant chipboard faced with high pressure laminate, panels are 18 mm nominal thickness. Edges lipped with ABS. |
Length | 1930 mm 2060 mm 2090 mm |
Height | 2895 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | K32/120 Panel cubicles K32/10 Panel cubicles |
Product range |
Specification data - Panel cubicle systems
Panels | 13 mm solid grade laminate (SGL). |
Pilasters | Slimline extruded satin anodized aluminium. |
Doors | 13 mm solid grade laminate (SGL). |
Hardware | Satin anodized aluminium rise and fall hinges and emergency release indicator bolts. |
System accessories | Not required.Venesta Toilet Roll Holder.Venesta Coat Hook.Document M 2004 Compliant grab rails and door pulls. |
Headrail | Satin anodized aluminium. |
Fixings | Continuous satin anodized aluminium u-channel partition to wall fixings. |
Cubicle height (overall) | 2895 mm from FFL to top of headrail. |
Cubicle depth | 1930 mm. |
Clearance | Floor: 100 mm; Ceiling: 150 mm (minimum). |
Colour/ Finish | Rouge (VEN324 | LRV 17). Papaya (VEN370 | LRV 35). Golden (VEN366 | LRV 52). Canary (VEN365 | LRV 65). Lime (VEN354 | LRV 54). |
Edge treatment | Polished black radiused edge. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | MFC Guidance for specification option: For dry environments with low risk of vandalism. Panels are manufactured from 18 mm nominal thickness high performance moisture-resistant melamine faced chipboard. Edges lipped with ABS. Solid grade laminate (SGL) Guidance for specification option: Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water. Panels are 13 mm nominal thickness with polished black radiused edges. High pressure laminate (HPL) Guidance for specification option: For more heavily used washrooms, panels are heat, scratch and impact resistant. Manufactured from moisture-resistant chipboard faced with high pressure laminate, panels are 18 mm nominal thickness. Edges lipped with ABS. |
Literature
Brochure | Fusion & Full Height Toilet Cubicles
