Unity Cubicle

Venesta Washroom Systems Ltd

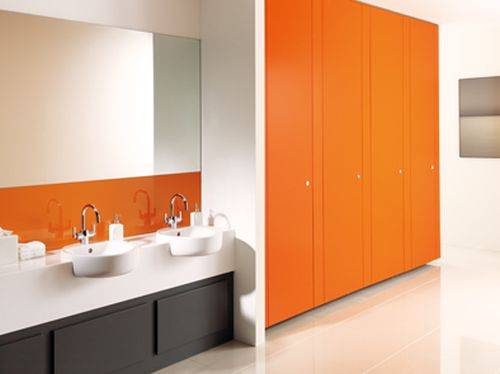

Unframed panel cubicle system.

Jump to:

+44 (0)1474 353333 www.venesta.co.uk

Description

Economical, flush-faced, cubicle system available in four material options.

General information

Uniclass 2015	Panel cubicle systems (Ss_25_12_60_60)Primary

Specification data - Panel cubicle systems

Product Reference	Unity ColourCoat Polyurethane coated MDF panels. Unity HPL High pressure laminate covered chipboard panels. Unity MFC Melamine faced chipboard panels. Unity SGL Solid grade laminate panels.
Size	-
Height	Standard height 2120 mm from FFL to top of headrail.
Colour	Consult Venesta Washroom Systems for details of colour range.
Accessories	Document M compliant grab rails and door pulls Venesta coat hook Venesta toilet roll holder

Standard product features

General:
Floor clearance: 50 mm.
Ceiling clearance (minimum): 20 mm.
Pedestal adjustment: ± 8 mm.
Headrail:
Slimline aluminium profile with stainless steel finish which allows cubicles to finish 20 mm below ceiling height.
Pedestals:
Stainless steel with brushed finish.
Ironmongery:
Hinges: Spring-loaded stainless steel butt hinges.
Bolt: Stainless steel, with brushed finish, lever operated bolt with circular face plate and emergency release facility.

Product Options

Product reference:
– Unity ColourCoat:
Board/ panel: 720 kg/m³ MDF, sprayed with one coat of primer and finished with pigmented polyurethane lacquer.
Thickness: Partitions, 18 mm; doors and pilasters, 36 mm.
Edge treatment: As main board.
Height (maximum): To 1500 mm deep, 2765 mm; 1501–1800 mm deep, 2450 mm.
Depth (maximum): 1800 mm.
– Unity HPL:
Board/ panel: 660 kg/m³ furniture grade, moisture resistant chipboard, faced each side with high pressure laminate (HPL).
Thickness: Partitions, 18 mm; doors and pilasters, 36 mm.
Edge treatment: 1 mm thick matching PVC.
Height (maximum): 2620 mm from FFL to top of headrail.
Depth (maximum): 2000 mm from face of back wall or rear ducting.
– Unity MFC:
Board/ panel: Melamine-faced, 660 kg/m³, high performance, moisture resistant chipboard.
Thickness: Partitions, 18 mm; doors and pilasters, 36 mm.
Edge treatment: 1 mm thick matching PVC.
Height (maximum): 2820 mm.
Depth (maximum): 2000 mm from face of back wall or rear ducting.
–Unity SGL:
Board/ panel: High density, solid grade laminate (SGL) with decorative face each side.
Thickness: 13 mm.
Edge treatment: All edges radiused and polished (black).
Height (maximum): 2600 mm from FFL to top of headrail.
Depth (maximum): 2000 mm from face of back wall or rear ducting.
Fixings:
Colourcoat, HPL, MFC: Concealed aluminium with stainless steel effect finish.
SGL: Through fix, brushed finish stainless steel angle cleats.
Colours:
Spray-on polyurethane: 8 colours.
Laminates: 35 colours.
Consult Venesta Washroom Systems for colour range and samples.
