Ultraglaze-NC3 - Insulated Metal-Faced Cladding Panel
Verified by manufacturer today
Warringtonfire
Certificate type
A non-combustible insulated aluminium-faced cladding/ architectural panel with 6 mm A1 non-combustible fibre cement board core.
Application
Insulated aluminium-faced cladding panel for use in external cladding and façade systems for applications requiring both fire performance and a high-quality architectural finish.
Description
UltraGlaze-NC3 Panels have been tested at Exova Warrington Fire and have achieved a fire classification of A2 s1 d0 in accordance with EN 13501-1. The faces are aluminium (1.2 mm to 3 mm).
Features and benefits:
- Aluminium facings, 1.2–3 mm, any grade.
- Nine-stage chromate pre-treatment. (Chromate free option available)
- Various polyester powder-coated finishes.
- Insulating core of 6 mm A1 non-combustible fibre cement board.
- One-part moisture-curing polyurethane adhesive, 100% solids, spray-applied.
- Vacuum-bonded panel construction.
- Temperature resistance –40°C to +130°C.
- Fire rating Euroclass A2-s1,d0 to EN 13501-1:2007+A1:2009 (Exova Warrington Test WF417193).
- Core material certified A1 non-combustible to EN 13501-1.
- High fire safety and compliance with stringent building regulations.
- Non-combustible core ensures excellent fire protection.
- Durable aluminium facings with protective powder coating for long-term performance.
- Lightweight construction simplifies handling and installation.
- Resistant to temperature extremes, suitable for exposed façades.
- Reliable bonding ensures panel integrity and structural stability.
General information
Color | Beige Black Blue Brown Green |
Finish | Powder-coated |
Material | Aluminium Fibre cement |
Shape | Rectangle Square Parallelogram Rhombus Trapezium |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year Guidance for specification option: Panel construction: ten years against manufacturing defects with a life expectancy of over 25 years. 25 year Guidance for specification option: Powder-coating: up to 25 years dependent upon location. |
Uniclass | |
CAWS | H43/120 Metal insulating sandwich panel H43/10 Metal insulating sandwich panel |
Sustainability data
Material | Aluminium Fibre cement |
Expected Life | 25 year |

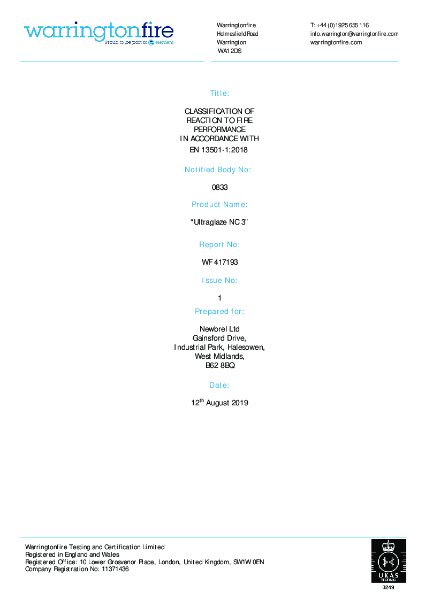

Product certifications
Warringtonfire
Ultraglaze-NC3 - Warringtonfire
Literature
Literature type
UltraGlaze-NC Panels
Wind performance testing of 2 mm Composite panels for Newbrel Limited - N950-25-18939
Wind performance testing of 3 mm Composite panels for Newbrel Limited - N950-25-18940
