Ultrabead® - liquid insulating bead screed

Ultrabead® is manufactured from a high-quality factory produced EPS bead that meets the BS EN 13163 standard criteria.

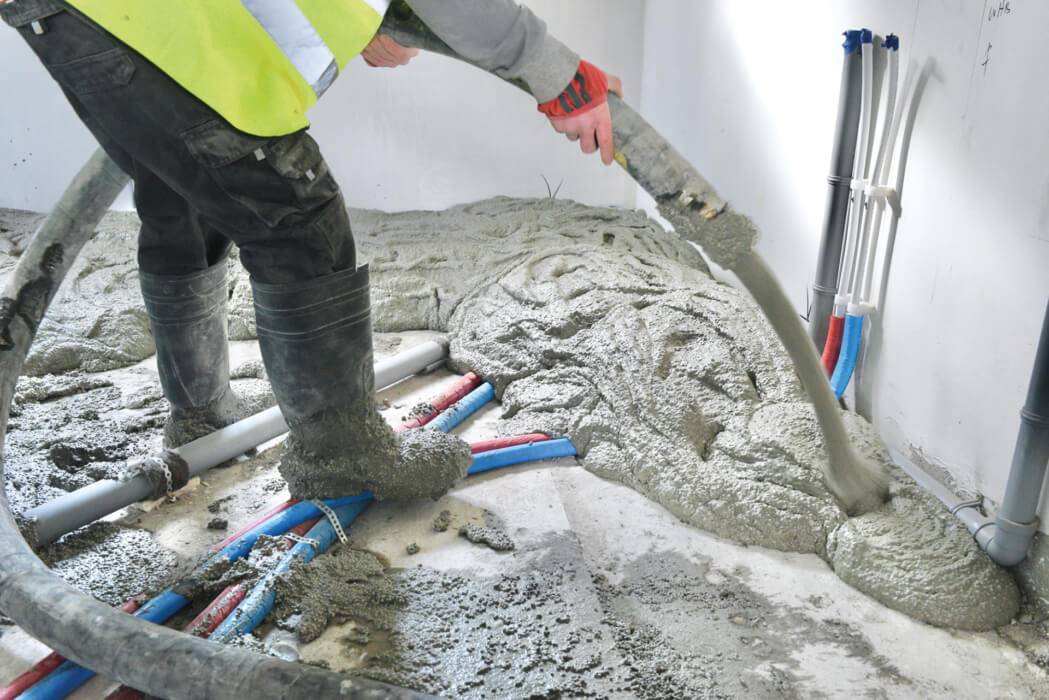

The product is installed by approved contractors. It is delivered to site via our computerised batching Ultrabead® lorry. It is pumped and placed to the predetermined level allowing the floor screed to be applied once set. When used as a floor insulation, a floor screed must be applied on top as the screed is not a wearing surface. Prior to floor screed being applied, it must not be trafficked.

The product is resistant to the passage of water vapour, fire, solvents and rodents. If correctly installed it has an indefinite lifespan.

The product offers a thermal conductivity (λ-value) of 0.043 W/mK. Thermal resistance (R-Value) varies with the thickness of Ultrabead and is calculated by dividing the thickness of Ultrabead by its conductivity. Consult technical literature for details.

Features and benefits:

• U-values range from 0.12 to 0.20 W/m²K.
• Installation capacity of up to 1000 m² per day.
• Less labour intensive.
• No cold bridging at joints.
• Low environmental impact.
• Improved airtightness.
• Encapsulates service pipes and ducts on the subfloor.
• Supports a wide range of construction applications for floors and flat roofs.
• Reduced material wastage.
