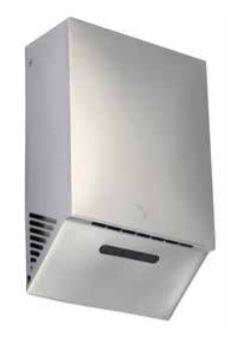

Ultra Hand Dryer

Application

Suitable for high traffic washrooms including nightclubs, bars, airports, gyms and shopping centres.

Description

High-speed hand drier with eco-friendly operation and slimline body. It has automatic operation, a brushless motor and a robust all-metal 100 mm deep case. It has an 700 W total power rating (300 W if set to cold mode) and can dry hands in nine seconds.


Features and benefits:

  • Fast drying time of nine seconds.
  • Contemporary, sleek, ergonomic design.
  • Heavy-duty stainless steel casing provides ongoing protection against corrosion and vandalism.
  • The automatic 'no touch' operation increases hygiene.
  • Power consumption can be adjusted using eco-mode switches inside the casement for reduced cost and carbon footprint.
  • Automatic cut-off minimises energy waste.
  • Reduced noise levels, quiet and discrete.
  • LED indicator clearly shows when dryer is in use.
  • Built-in removable HEPA filter for hygienic operation with filtered air.
  • Finishes available in brushed metal, reflex silver and arctic white.

General information

Color

Dependent on finish.

Silver

White

Finish

Powder-coated

Material

Stainless steel

Shape

Rectangular

Size

230 x 346 x 100 mm

WarrantyDescription

Two years

Uniclass 2015

Pr_40_70_62_37 Hand dryersPrimary

CAWS

N13/472 Hand dryers

Specification data - Hand dryers Enhanced data

Standards

CE marked, RoHs compliant.

Form

Hands-under.

Operation

Infrared automatic ‘no touch’.

Timer

60 seconds auto cut off.

Electrical supply

-

Power rating

Variable 300–700 W.

Frequency

50/ 60 Hz.

Body

-

Finish

Arctic white.

Brushed metal.

Reflex silver.

Product Reference

Ultra Hand Dryer

Rated operational voltage

220–240 V AC.

Ingress protection minimum

IPX4.

Noise level at 1 m maximum

70 dB.

Installation

Wall mounted.

Drying time

9 seconds.

Air speed

100 m/s.

Thermal protection

Cut off above 70°C.

Net weight

4.5 kg.

Filter

HEPA filter.

Third-party certification

To BS EN 60335-1 and BS EN 60335-2-23

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library
