Application

Suitable for high traffic washrooms, including nightclubs, bars, airports, gyms and shopping centres.

Description

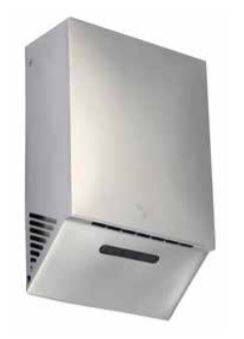

High-speed hand drier with eco-friendly operation, slimline body and a unique sense of style. It has automatic operation, a powerful brushless motor and a robust all-metal 100 mm deep case. It has an eco-conscious 700 W total power rating (300 W if set to cold mode) and can dry hands in nine seconds.

Features and benefits:

  • Ultra-fast drying time of nine seconds.
  • Its contemporary, sleek, ergonomic design makes this an exceptionally stylish dryer.
  • Heavy-duty stainless steel casing provides excellent ongoing protection against corrosion and vandalism.
  • The automatic 'no touch' operation increases hygiene.
  • Power consumption can be adjusted using eco-mode switches inside the casement for reduced cost and carbon footprint.
  • Automatic cut-off minimises energy waste.
  • Reduced noise levels make this one of the quietest and discrete dryers in any class.
  • Stylish LED indicator clearly shows when dryer is in use.
  • Built-in removable HEPA filter for hygienic operation with filtered air.
  • Easy to install and maintain.
  • Finishes available in brushed metal, reflex silver and arctic white.

Application:

Suitable for high traffic washrooms, including nightclubs, bars, airports, gyms and shopping centres.

General information
Color

Brushed Metal, Silver, White

Features

Automatic operation, Vandal proof hardware, 9 seconds drying time, 70db noise output, Easy installation

Finish

Brushed Metal, Silver, White

Material

304 Stainless Steel

Shape

Rectangular, chamfered profile

Size

230mm W x 346mm H x 100mm D

WarrantyDescription

2 Years

Uniclass 2015
Hand dryers (Pr_40_70_62_37)Primary
Specification data - Hand dryers
Product Reference

Ultra Hand Dryer

Standards

CE, RoHs

Form

Hands-under

Operation

Infrared automatic ‘no touch’

Timer

60 seconds auto cut off

Electrical supply -
Power rating

Variable 300–700 W

Rated operational voltage

220–240 V AC

Frequency

50/ 60 Hz

Body -
Finish

Arctic white

Brushed metal

Reflex silver

Ingress protection minimum

IPX4

Noise level at 1 m maximum

70 dB

Installation

Wall mounted

Drying time

9 seconds

Air speed

100 m/s

Thermal protection

Cut off above 70°C

Net weight

4.5 kg

Filter

HEPA filter

Standard product features

Colour:

Dependent on finish.

Features:

Automatic operation, vandal proof hardware, nine-second drying time, 70 dB noise output, easy installation.

Finish:

Three finishes available.

Material:

Stainless steel, grade 1.4301 (304).

Shape:

Rectangular, chamfered profile.

Size:

230 x 346 x 100 mm (w x h x d).

Warranty description:

Two years.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
Download now from NBS National BIM Library
