Ufoil
Description

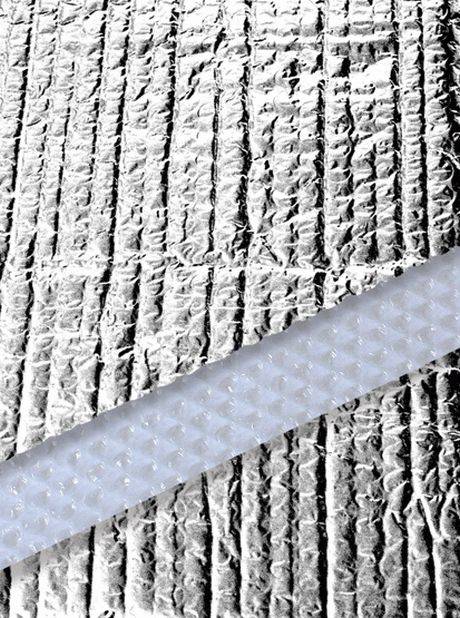

A range of insulation materials constructed using polyethylene bubble, with aluminium foil to one or both faces.

General information

Uniclass 2015

Pr_25_57_06_57 Multifoil blanket insulationPrimary

CAWS

F30/12 Partial fill cavity insulation

F30/155 Partial fill cavity insulation

P10/140 Insulation fitted between rafters

P10/240 Insulation fitted between floor joists

P10/310 Air and vapour control layer

Specification data - Multifoil blanket insulation

Product Reference

1BD/A

One layer of polyethylene bubble, with foil on both faces.

1BD/A-1

One layer of polyethylene bubble, with foil on one face.

2BD/A

Two layers of polyethylene bubble, with foil on both faces.

Width

1050 mm

1200 mm

1500 mm

Standard product features

Polyethylene grade:

Single bubble, 90 grade. Double bubble, 180 grade.

Aluminium foil facing:

12 micrometres thick. Incorporates a protective coating, providing durability and corrosion resistance.

Thermal resistance:

  • 1BD/A: 0.88 m².K/W (includes 25 mm airspace to each face).
  • 1BD/A-1: 0.79 m².K/W (includes 50 mm airspace to each face).
  • 2BD/A: 0.93 m².K/W (includes 25 mm airspace to each face).
