UFO NT - Floor-Mounted Swing Door Drive
Verified by manufacturer 2 days ago

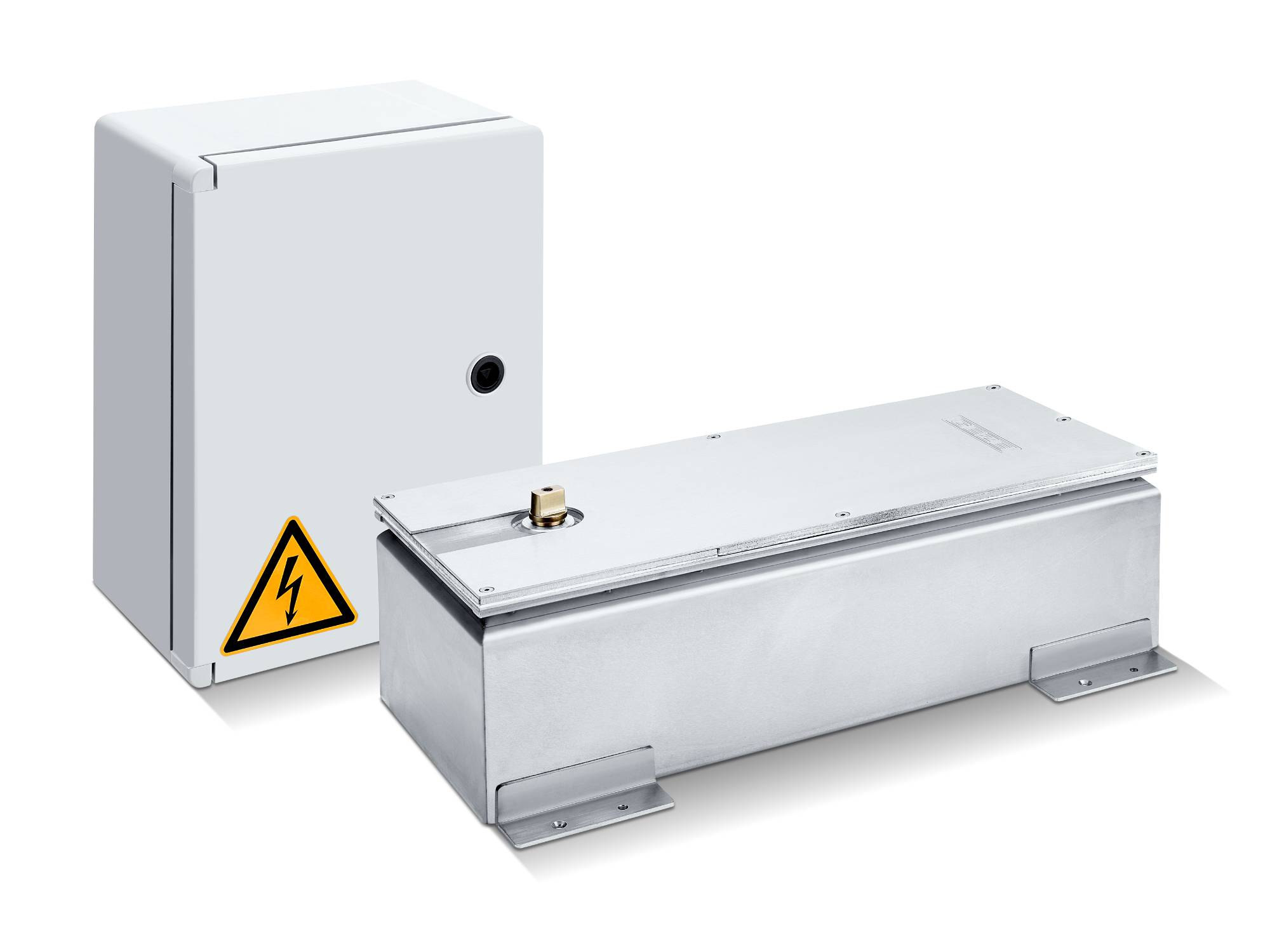

Electromechanical floor-mounted swing door drive for single leaf doors weighing up to 125 kg.
Application
Application areas:
- Single-action, single leaf, right and left closing doors;
- Doors up to 1100 mm leaf width or 125 kg in weight;
- Minimum door leaf width is 600 mm;
- Interior and exterior doors with high access frequency;
- Floor mounting, concealed.
Description
Electromechanical floor-mounted swing door drive for single leaf doors weighing up to 125 kg.
Features and benefits:
- Drive unit is embedded in the floor and meets the highest design expectations.
- High degree of IP protection and sealed stainless steel housing for outdoor use.
- Smart swing function for easy manual door opening.
- Closing force with variable adjustment.
- Opening and closing speed can be individually adjusted.
- Mechanical latching action when operated without current, and electrical automatic unit latching action in regular operation, which accelerates the door shortly before it is closed.
- Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demands.
- Obstacle detection detects an object through contact and stops the opening or closing process.
- Push & Go function triggers the automatic drive following light manual pressure on the door leaf.
General information
Color | Silver |
Shape | Rectangle |
Length | 490 mm |
Width | 195 mm |
Height | 150 mm |
Uniclass | |
CAWS | P21/12 Controlled door closers P21/410 Controlled door closers |
SKU Code | 164823 |
Specification data - Controlled door closers
Classification data | |
Standard | To BS EN 1154. |
Classification grades (minimum) | |
Category of use | 4. Guidance for specification option: Maximum opening angle: 130°. |
Door closer power size | Adjustable 1–4. Guidance for specification option: Stepless. |
Safety | Manufacturer's standard. |
Corrosion resistance | Manufacturer's standard. |
Form | Floor-mounted, concealed. Guidance for specification option: Drive unit is embedded in the floor. |
Closer functions | Latching. |
Materials and finishes | |
Bodies | Manufacturer's standard. |
Arms | Manufacturer's standard. |
Casings | Manufacturer's standard. |
Colour | Manufacturer's standard. |
Fasteners for hardware | As supplied. |
Voltage | Supply voltage: 230 V. |
Power | Power rating: 200 W. Power supply for external consumers (24 V d.c.): 1200 mA. |
Door leaf | 600–1600 mm. Maximum weight: 125 kg. |
Drive type | Electromechanical. |
Ingress protection | IP67. |
Service temperature | -15 to +50°C. |
Included features | Automatic function; low-energy function; smart swing function; obstacle detection. DIN left/ DIN right. Activation delay: maximum 10 s. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Germany |
Recyclability | Aluminium components full recyclable |
Literature
UFO NT Datasheet
