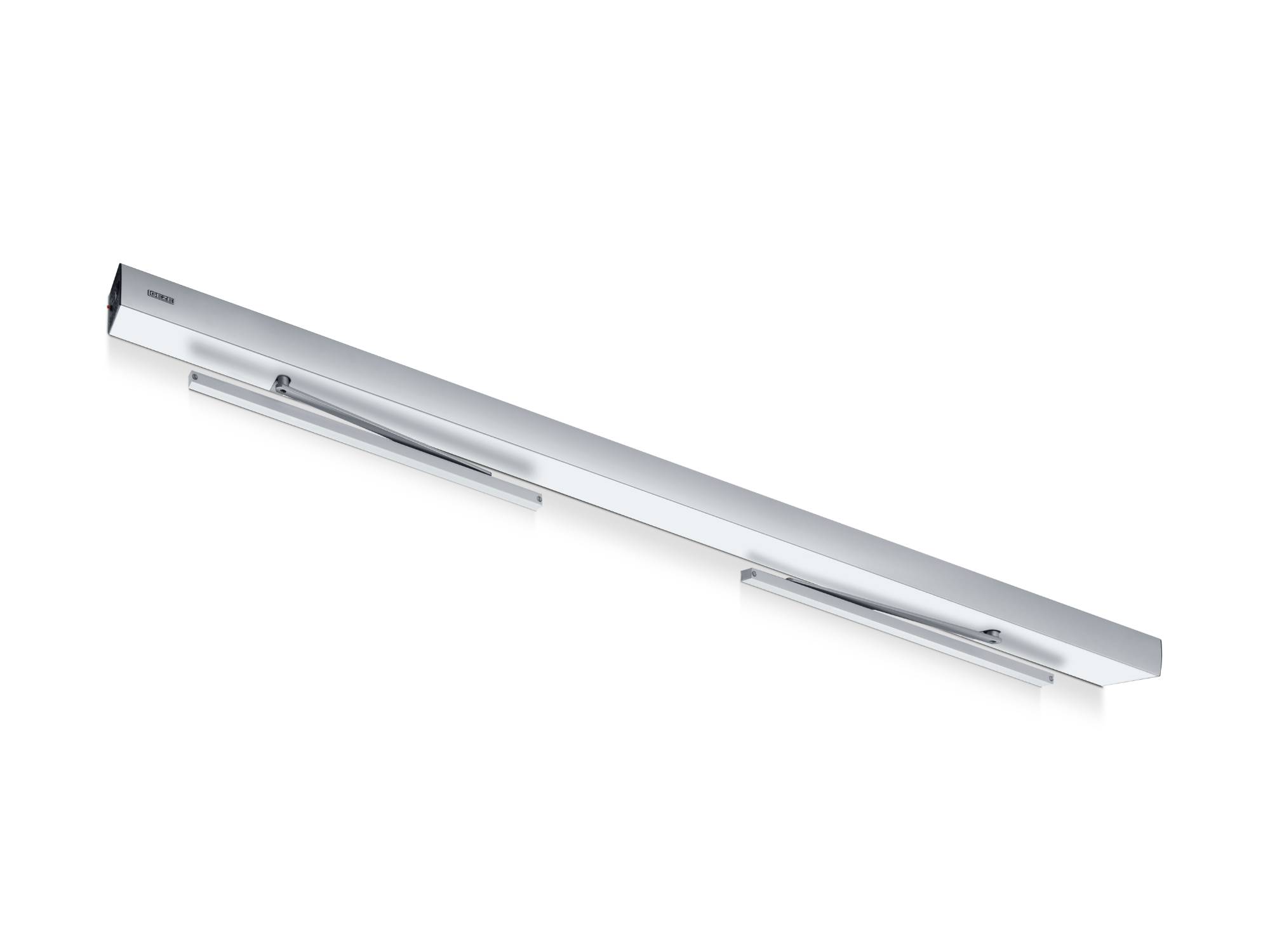

Slimdrive EMD-F-IS - Swing Door Drive - Fire & Smoke Doors

Electromechanical swing door drive system for double leaf fire and smoke protection doors with closing sequence control.

Features and benefits:

• Closing force with variable adjustment of EN 4-6.
• Opening and closing speed can be individually adjusted.
• Mechanical latching action when operated without current, and electrical latching action in regular operation, which accelerates the door shortly before the closed position.
• Mechanical and electrical closing sequence control holds the active leaf in the waiting position until the passive leaf is closed.
• Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demands.
• Servo function for motorized support when manually opening the door.
• Vestibule function controls the opening and closing of two consecutive doors (interlocking door system).
• Obstacle detection detects an object through contact and stops the opening or closing process.
• Automatic reversing detects an obstacle and returns to the opening position.
• Push & Go function triggers the automatic drive following light manual pressure on the door leaf.
• Drive can be used with roller guide rail or link arm.
• Smoke switch control unit can be connected, whose signal makes the door close automatically in the event of a fire.
• Freely configurable inputs and outputs for different functions.
• Can be networked, and integrated into the building automation via open standard (BACnet).

Single leaf version also available (Slimdrive EMD-F; specified separately).
