U-Barrier - Mineral wool fire stopping

Name: U-Barrier - Mineral wool fire stopping
Brand: ARC Building Solutions Limited
SKU: 924StFLVjcSrWgEZ3zG1tr

Verified by manufacturer 9 days ago

Fire stopping between spandrel panel and roof covering

Jump to:

BOS

Application

For installing between spandrel panel and roof coverings.

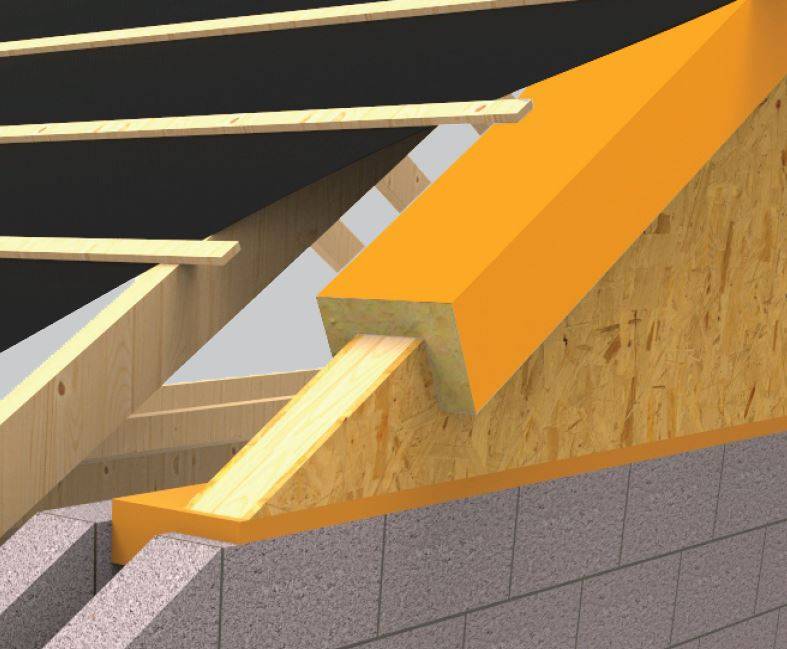

Compressed between the top of the spandrel panel and underside of the roof covering, creating a fire and thermal break.

Features and benefits:

Enhances fire protection at the junction between the spandrel panel and roof.
Easy to install before the spandrel panel is fitted.
Use in conjunction with ARC Spandrel Barrier to provide complete fire stopping around the spandrel panel.
Complies with Building Regulations (E&W) and NHBC 7.2.16.
BRE Green Guide 'A+' rating.
Manufactured under ISO 9001- and ISO 14001-certified 'Quality and Environmental Systems'.

Color	Orange
Material	Rock fibre mineral wool
Shape	- Manufacturer guidance U-shape.
Length	1200 mm
Width	200 mm
Height	150 mm

Uniclass	Pr_25_80_81_51 Mineral wool fire-stoppingPrimary
CAWS	F30/18 Cavity closers F30/180 Cavity closers

Fire performance	To BS EN 13501-1, Euroclass A1.

Materials	Rock fibre mineral wool.
ThermalConductivity	0.037 W/mK.
Dimensions	150/200 x 55 x 100/90 x 1200 mm. Manufacturer guidance Suits single 100 mm spandrel.
