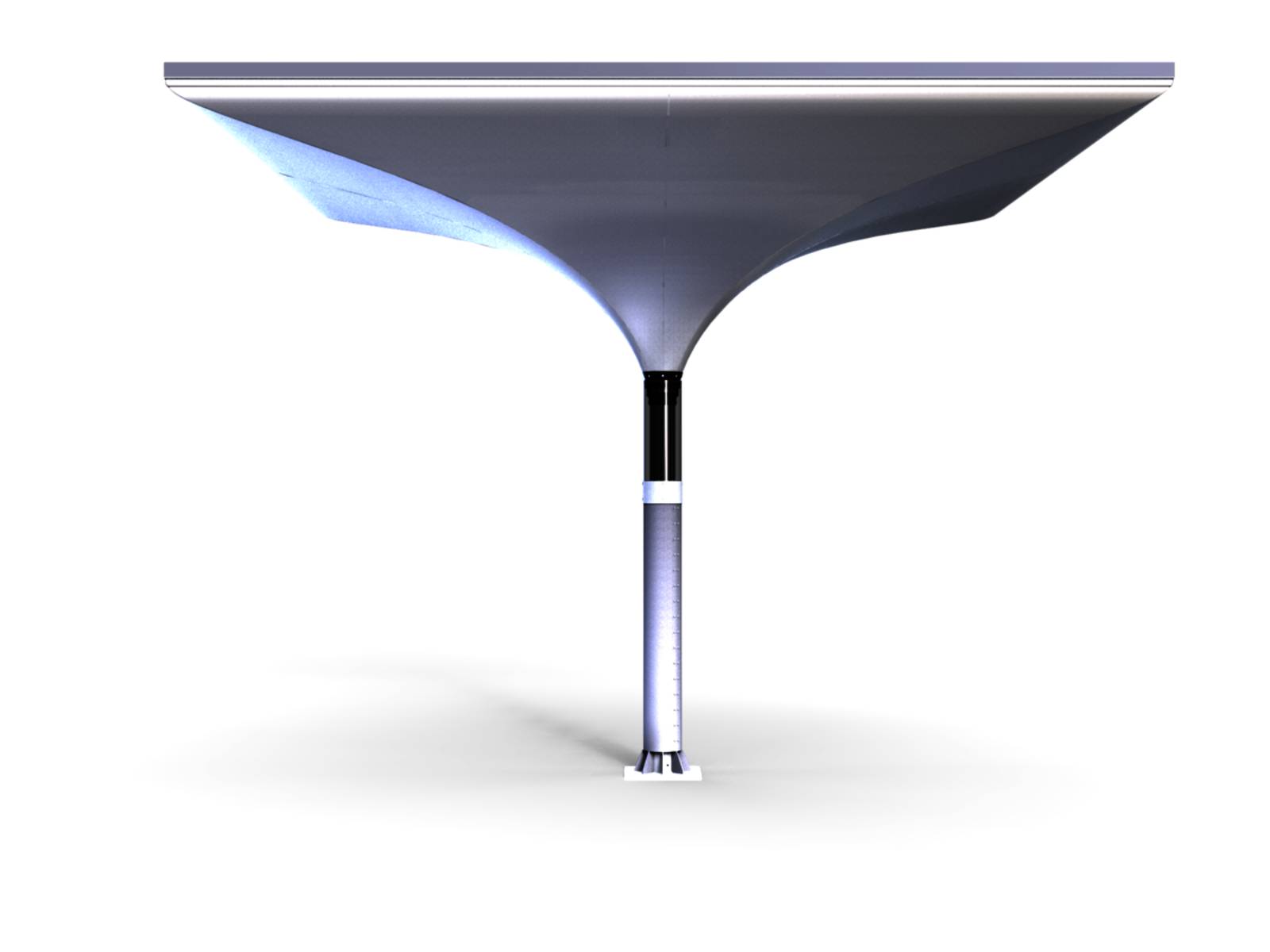

Type Solar Carport Square

Description

Solar carport with the appearance of a parasol.

Features and benefits:

  • Covers the size of two standard parking spaces.
  • The inner mast serves as the channel for the electrical conduits, and is manufactured from steel.
  • The cover is replaceable and is fade, light, water and corrosion-resistant.
  • Designed to withstand all weather conditions.
  • Maintenance free.
  • All materials are screwed together.
  • Designed to harvest solar energy.

General information

Color

Various options available, consult manufacturer

Features

Harvests solar energy, capable of withstanding snow loads

Finish

Polyester powder-coated (PPC) 80 μm

Material

Structural steel frame, PVC covering

Shape

Square

Size

5300 x 5300 x 4000 mm

Uniclass 2015

Pr_20_65_78_58 Open sided sheltersPrimary

CAWS

B91/385 Shelter

Specification data - Open sided shelters

Product Reference

Type Solar Carport Square 5.3 x 5.3 m

Shelter description

Square, non-closing carport

Dimensions

-

Plan size

As product reference

Height

4000 mm

Frame

-

FrameMaterial

Structural steel with composite mast cladding

Frame finish

Polyester powder-coated (PPC) 80 μm

Colour

White RAL 9010

Standard.

RAL colours

Insert requirement.

Roof covering

MDT-tex® 680 (PVC)

Integral services

Not required

Lighting at the base

Lighting within the structure

Rainwater drainage

Incorporated into anchors ground tube (filter and storage also available - consult manufacturer)

Accessories

Not required

EV Charger

Home energy management system

Mist cooling system

Remote control

Transport case

22 kW car charger

Roof covering colour options

Various. Consult manufacturer.

Wind resistance

Up to 120 km/h

Printing options

Not required

Digital

Dispersion dye

Screen

Construction

Consult manufacturer

Anchoring

Footplate welded to the mast (anchor on concrete foundation)

Solar system

15 PV panels (Poly-Si) with a capacity of 270-360 Wp each, depending on the preferred supplier

PV inverter

SMA Sunny Tripower 5000TL

Distance (cover to ground)

2300 mm

Snow load

Up to 75 kg/m²

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library
