Type F Corrugated Abutment Flashing
Verified by manufacturer 4 months ago

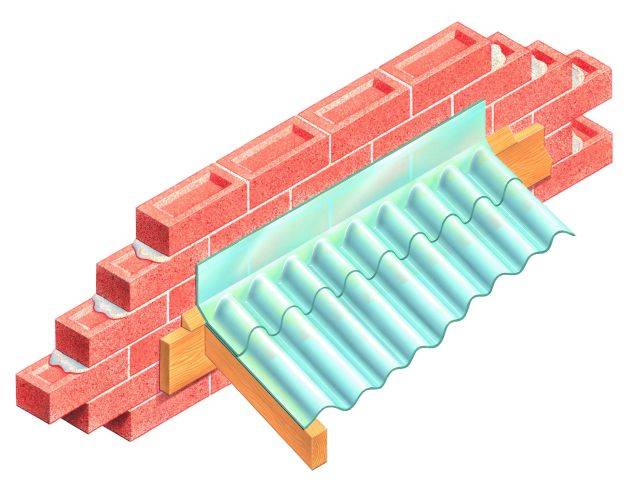

An abutment flashing for plastics sheet against adjacent masonry.
Application
- Corrugated flashing suitable for use with plastic roof sheets only.
- Suitable for any angle of roof from 17.5° to 60°.
Description
An abutment flashing designed to fill and flash plastic sheeting against adjacent masonry. The translucent material blends with roof finish.
Features and benefits:
- Fills and flashes sheet top with masonry.
- Adjusts to suit different roof angles .
- Blends with roof finish.
- CFC Free.
- ODP zero.
General information
Color | Clear Manufacturer guidanceAvailable in clear. |
Finish | Amber |
Material | PVC-U Guidance for specification option: Un-plasticized polyvinyl chloride, classified ‘self-extinguishing’. |
Shape | Other |
Size | Guidance for specification option: Each side abutment flashing. |
Length | 700 mm |
Width | 160 mm |
Height | Bespoke |
Uniclass | |
CAWS | H32/111 PVC-U H32/120 Plastics |
Specification data - Recycled plastics flashings
Item | Abutment flashing. |
Colour | Black. Clear. |
Profile | Miniature. Grecca box profile 76. Box profile 16 mm. Box profile 14 mm. Onduline standard profile. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
Protecting the Building Envelope Volume 28 (cavity tray, damp proofing, ventilation and cavity closers)
