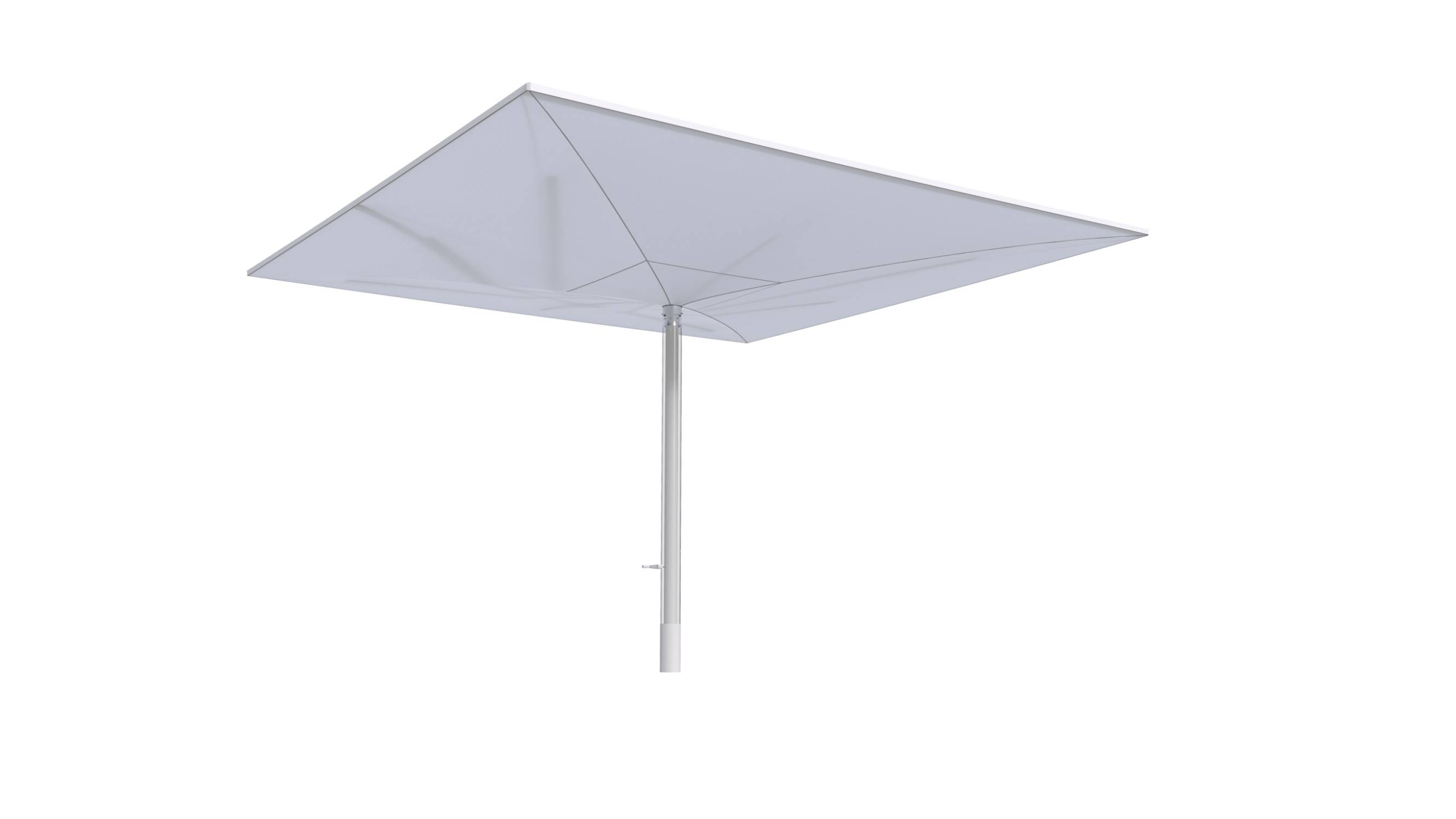

Type AV Square

Avenches umbrella shelter with a double membrane canopy.


Features and benefits:


  • Highly functional due to internal lighting and a water drain which feeds directly into the ground.
  • The upper membrane consists of a water-permeable mesh fabric, and the lower membrane collects the water and drains it into the ground, where it can be connected to a cistern.
  • Roofing sheets are fade and light resistant.
  • Operated with a hand crank.
  • The parasol is manufactured from aluminium and provides high stability.
  • Can either be positioned singular, or connected to additional umbrellas of the same size using a concealed zipper system to create a complete roof structure.
  • All materials are water and corrosion-resistant, and fixing screws are rust-resistant.

General information

Various (dependent on covering)


High stability, good wind resistance, simple installation


Chrome plated or polyester powder-coated (PPC)


Aluminium frame, mesh fabric, polyester or PVC roof covering




6000 x 6000 x 5900 mm

4000 x 4000 x 3810 mm

3000 x 3000 x 3720 mm

5000 x 5000 x 4550 mm

Uniclass 2015
Pr_20_65_78_58 Open sided sheltersPrimary
Digital objects
PlatformCompatibleVersionCertified to
- 1 2.1
- 1 2.1
