TVS RESi-LAY Acoustic Mat
Application

  • New build.
  • Retrofit.
  • Renovation.
  • Offices.
  • Residential developments.
  • Hotels.

Description

A high performance floor noise barrier which reduces both impact and airborne sound. Available in two variants:

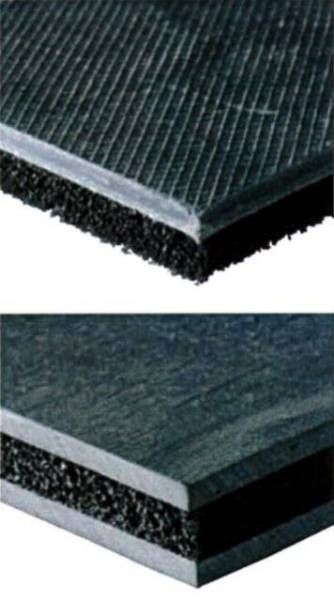

  • Resi-lay Double: Designed for concrete floor applications and can also be used for timber floors. It is primarily used where noise insulation is required, although can also provide a level of airborne noise insulation. It is a two-layer laminate, the upper being TVS WB7.5 acoustic barrier supported by a 6 mm layer of TVS Class 0 acoustic foam.
  • Resi-lay Triple is primarily designed for timber floors although can also be used with concrete floor constructions. It offers additional airborne and impact sound insulation to Resi-lay Double, so is aimed at developments where superior noise control is necessary. The high performance composite is a sandwich laminate of two layers of TVS WB7.5 acoustic barrier separated by a 6 mm layer of TVS Class 0 acoustic foam.

Features and benefits:

  • Reduces impact sound.
  • Improves airborne sound performance.
  • Suitable for concrete and timber floating floors.
  • Both systems have been tested on basic floor constructions.
  • Flexible, easily cut and simple to install.
  • Supplied in thin, easy to handle tiles.
  • Simple to install.
  • Cost effective.
  • Suitable for all final floor finishes.

Application:

  • New build.
  • Retrofit.
  • Renovation.
  • Offices.
  • Residential developments.
  • Hotels.

General information

Size

1200 x 1000 mm

Uniclass 2015

Pr_25_57_06_71 Resilient layer insulationPrimary

CAWS

K11/275 Acoustic separating floor system

Specification data - Resilient layer insulation

Product Reference

TVS RESi-LAY Double Acoustic Mat

TVS RESi-LAY Triple Acoustic Mat

Standard product features

Size:

1200 x 1000 mm.

Thickness:

  • Resi-lay Triple: 12 mm.
  • Resi-lay Double: 9 mm.

Technical characteristics:

- TVS WB acoustic barrier material:

  • Flammability (FMVSS 302) Zero burn rate.
  • Service temperature: <90°C (continuous).
  • Service temperature: <120°C (short periods).

- TVS Class 0 acoustic foam:

  • Flammability (FMVSS 302): Self-extinguishing. Resists ignition.
  • Service temperature: <80°C (continuous).
  • Service Temperature: <110°C (short periods).

Acoustic performance:

Consult manufacturer for details.
