tuffset G Specialist Rapid Mortar - Specialist bedding, bonding and jointing

Verified by manufacturer 4 months ago

Steintec

A specialist, high-performance multi-purpose cementitious paving mortar with rapid strength gain. Used for top to bottom reinstatement and the construction of high impact areas such as traffic tables.

Jump to:
+44 (0)203 5989800 Website

Application

It can be used effectively as a bedding primer and grout, suitable for emergency repairs to modular paving, concrete and filling around gulley and manhole frames where Steintec's 'tuffset 60' has been used for bedding and re-setting ironwork in carriageways.

Description

A high-performance hydraulic mortar with rapid strength gain and enhanced cold weather strength gain characteristics. Can be mixed to Steintec's recommendations for use as a jointing mortar and as a priming/bonding mortar. tuffset G combined with Steintec tuffgrit aggregate produces a high strength gain bedding mortar.


A modular pavement constructed using tuffset G for the bedding mortar, the priming mortar and as the jointing mortar: can be trafficked in three hours.


Features and benefits:


  • Capable of withstanding heavy trafficking within three hours.
  • The absence of polymers, chemical admixtures and resin binders allows the mortar to be readily cleaned to avoid residual staining.
  • The product meets and exceeds BS 7533 requirements for low elastic modulus, high adhesion bond (achieving 3MPa rather than the requirement of 2MPa), compressive strength and all-round performance.
  • Final strength is unaffected by rapid early strength gain, and the stiffness modulus is similar to other products in the tuffbau range.
  • Declaration of Performance (DoP) EN 1504-3: ZA.1a.


For bedding mortar and emergency concrete repair, mix the product with tuffgrit aggregate; otherwise, for bonding and jointing mortar, mix with water.

General information

Color

Grey

Other

Finish

Fine

Manufacturer guidance

Matt surface

Material

Cementitious

Manufacturer guidance

Cementitious hydraulically bonding mortar

Shape

Formless

Manufacturer guidance

Formless

Warranty description

40 year

Manufacturer guidance

tuffbau Ltd warrants that the bagged product will meet the specified performance criteria at production

Uniclass

Pr_20_31_53_61 Paving laying course mortarsPrimary

CAWS

P31/730 Installing access covers/ gratings and frames

Q24/10 Conventional concrete block paving

Q24/112 Conventional concrete block paving with bound base

Q24/122 Conventional clay paver paving with bound base

Q24/130 Natural stone sett paving

Q24/132 Natural stone sett paving with bound base

Q24/133 Natural stone sett paving overlay

Q24/30 Mortar bedded

Q24/385 Mortar bedded

Q25/110 Natural stone slab paving system

Q25/115 Natural stone slab paving overlay system

Q25/120 Concrete flag paving system

Q25/125 Concrete flag paving overlay system

Q25/130 Rigid brick paving system

Q25/135 Rigid brick paving overlay system

Q25/140 Natural stone sett paving system

Q25/145 Natural stone sett overlay paving system

Q25/150 Concrete sett paving system

Q25/155 Concrete sett paving overlay system

Q25/160 Natural stone cobble paving system

Q25/165 Natural stone cobble overlay paving system

Q25/26 Natural stone slab paving systems

Q25/31 Concrete flag paving systems

Q25/440 Ready-mixed mortar

R12/58 Installation of access covers and frames

R12/773 Installing access covers and frames

Specification data - Paving laying course mortars

Standard

BS 7533-4:2006, BS 7533-7:2010, BS 7533-10: 2010, BS 7533-12:2006, BS EN 1339 annex D.

Mortar designation

The product meets and exceeds BS 7533 requirements for low elastic modulus, high adhesion bond (achieving 3 N/mm² rather than the requirement of 2 N/mm²), compressive strength and all-round performance.

Characteristics

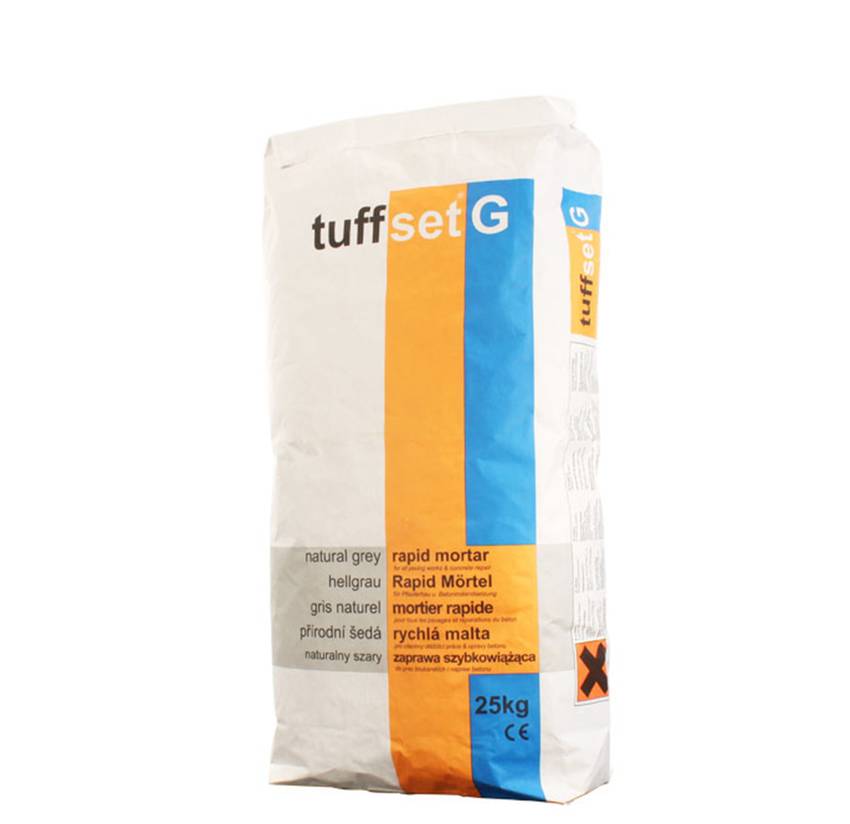

Bagged, dry fine powder.

Product Reference

tuffset G Specialist Rapid Mortar

Compressive strength gain (1:1 mix at 20⁰ C)

As bedding 1:2 with tuffgrit 40 N/mm2. A bonding 58N/mm². As jointing 58 N/mm².

Adhesion bond strength

3 N/mm².

Flexural strength (1:1 mix at 20⁰ C)

After three hours: 4 N/mm²; after one day: 6 N/mm².

Elastic modulus (1:1 mix at 20⁰ C)

After 28 days: 18 kN/mm².

Shrinkage

<0.1%.

Cold weather compressive strength gain (1:1 mix at 3⁰ C)

After four hours: 27 N/mm²; after six hours: 34 N/mm².

CompressiveStrength

Class R4.

Reaction to fire

A1-fl.

Chloride Ion content

<0.05%.

Adhesive bond

≥2 MPa.

Carbonation resistance

Pass.

Elastic modulus

≥20 GPa.

Thermal compatibility, part one, freeze-thaw

≥2 MPa.

Skid resistance

Class III.

Capillary absorption

≤0.5 kg/m^-2/h^0.5.

Release of dangerous substances

Comply with 5.4.

Sustainability data

Contains Red List materials

No

Recyclability

Recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Case studies

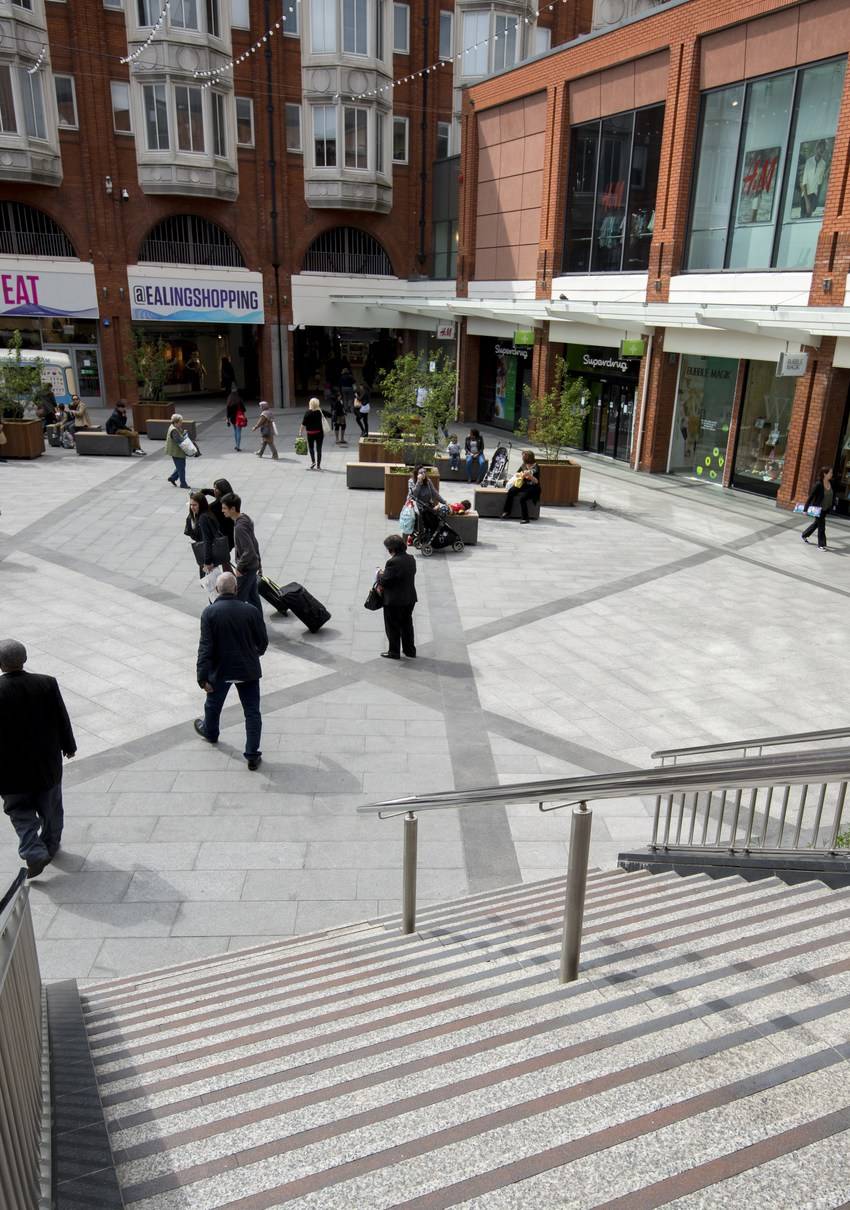

Ealing Broadway Shopping Centre
