tuffgrit High-Performance Permeable Laying Course and Jointing Aggregate Verified by manufacturer 4 months ago
Verified by manufacturer 4 months ago
High performance, crushed igneous rock laying course and jointing aggregate which is water permeable and frost resistant. Complies with BS7533-101 Table 8 'Grading for unbound laying course material..
Application
Suitable for use as a laying course and jointing material in unbound pavements.
Description

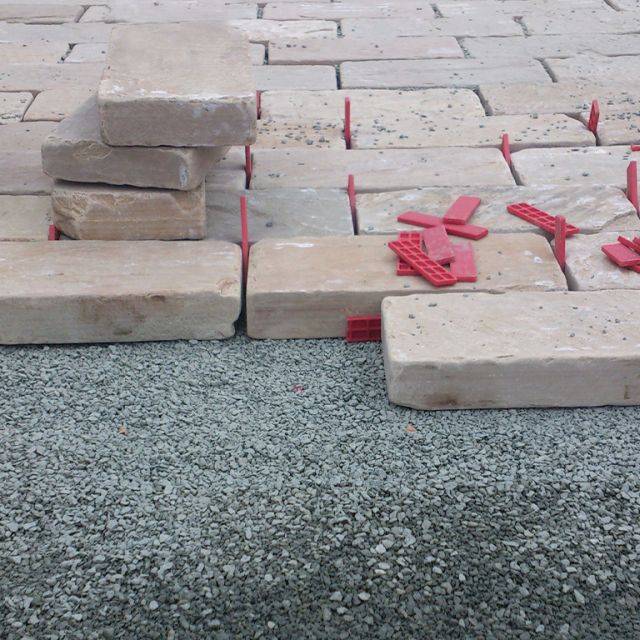

A carefully graded, crushed igneous rock aggregate formulated for use as the laying course and jointing material in unbound pavements constructed in natural stone, pre-cast concrete setts, slabs and other modular paving elements.
Features and benefits:
- In heavy trafficking environments and where longevity is required, tuffgrit aggregate is purpose blended to generate optimum interlock of its angular particles under compaction, resulting in extended life and durability of the pavement surface.
- Compliant with the requirements of BS 7533-13: 2009, 'Guide for the design of permeable pavements', (Table A2 grading for laying and jointing material), where unbound construction methods are used.
General information
Color | Grey |
Finish | Coarse |
Material | Stone |
ShapeFormless | Formless |
WarrantyDescriptiontuffbau Ltd warrants that the bagged product components will meet the specified performance criteria at production | - |
Uniclass | |
CAWS | Q24/110 Conventional concrete block paving Q24/113 Conventional concrete block paving overlay Q24/115 Permeable concrete block paving – total infiltration Q24/117 Permeable concrete block paving – partial infiltration Q24/119 Permeable concrete block paving – no infiltration Q24/12 Permeable concrete block paving Q24/120 Conventional clay paver paving Q24/124 Permeable clay paver paving – total infiltration Q24/126 Permeable clay paver paving – partial infiltration Q24/128 Permeable clay paver paving – no infiltration Q24/130 Natural stone sett paving Q24/15 Conventional clay paver paving Q24/17 Permeable clay paver paving Q25/120 Concrete flag paving system Q25/125 Concrete flag paving overlay system Q25/31 Concrete flag paving system Q25/375 Sand/ Fine aggregate for site mixed mortar Q25/390 Sand/ fine aggregate for unbound laying course and jointing of concrete flag paving Q25/420 Sand/ fine aggregate for laying course of concrete sett paving Q25/425 Fine aggregate for jointing concrete sett paving Q25/435 Primer for underside of flags and slabs |
Specification data - Paving jointing mortars
Standard | Unbound conventional pavements - laying course - C.1.2 BS 7533-7: 2010.Unbound permeable pavements - laying course and jointing aggregate - BS 7533-13: 2009 Table A2. |
Delivery condition | Bagged dry or bulk. |
Compressive strength (minimum) | Uncompacted bulk density;1.553 tonnes/ m³. Compacted bulk density; 1.733 tonnes/m³. |
Characteristics | Water permeable crushed igneous rock aggregate. |
Product Reference | tuffgrit High-Performance Laying Course and Jointing Aggregate |
Un-compacted bulk density | 1.553 t/m³. |
Compacted bulk density | 1.733 t/m³. |
Coarse aggregate | Conforming to BS7533-13:2009 Table A2. |
Grading category | Gc85-15. |
Crushed particle index | C90/3. |
Shape index | Sl20. |
Flakiness index | Fl14. |
LA abrasion coefficient | LA20. |
Resistance to wear (micro deval) | MDE15. |
Water absorption | WA241. |
Environmental information
Contains Red List materials | No |
Country of material origin | Norway |
Country of product manufacture | United Kingdom |
Recyclability | recyclable |
Recycled content | 0 % |
Literature
Technical Data tuffgrit
Case studies
Beaconsfield (SuDS)
