Tubular Tennis Court Surround - Sports fencing
Verified by manufacturer 5 months ago
ISO 9001 Quality Management
Certificate type

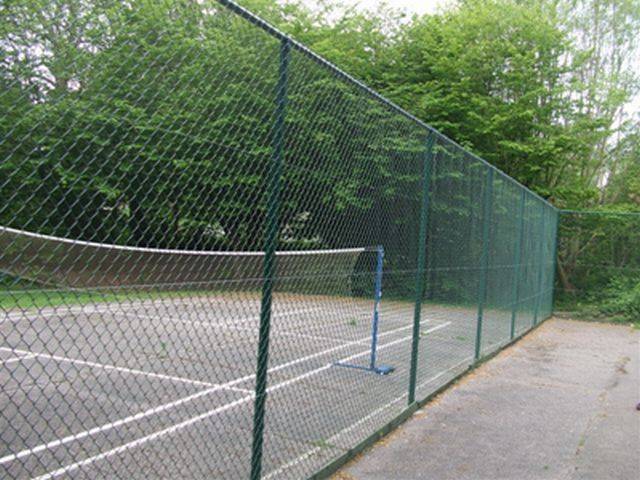

Galvanized tubular system for tennis court surround
Application
Tennis courts: schools, residential properties, public places
Description
Galvanized steel tubular system for tennis court surrounds.
Features and benefits:
- Galvanized tubular system with both chain link and welded mesh cladding.
- Tubular construction for extra strength - less vulnerable to vandals.
- Comes complete with plastic coated line and tying wires.
- Optional polyester powder coating at additional cost.
- 25-year guarantee.
General information
Color | Other Green Black |
Finish | Galvanized Powder-coated |
Material | Steel |
Width | 3000 mm |
Height | 2750 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | Q40/125 Open mesh steel panel general purpose fencing Q40/27 Open mesh steel panel general purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Product range |
Specification data - Metal mesh panel fencing systems
Category | 1.Guidance for specification option: Sports fencing. |
Posts | 60 mm diameter, galvanized.Guidance for specification option: Standard. 60 mm diameter, galvanized and powder-coated, black RAL 9005.60 mm diameter, galvanized and powder-coated, green RAL 6005.60 mm diameter, galvanized and powder-coated, other.Guidance for specification option: Insert requirements. Manufacturer guidanceIntermediate and corner posts are 3500 mm-long overall. |
Post foundations | Set in concrete. |
Rails | Manufacturer's standard.Guidance for specification option: Finish to match posts unless specified otherwise. Manufacturer guidance6000 mm long; steel connectors. |
Panels | 50 mm galvanized chain link.50 mm PVC chain link.Heavy welded mesh.Light welded mesh.Manufacturer guidanceAvailable in a variety of heights; consult manufacturer for options and insert requirements. Colour/ finish specified below (worked finish). |
System accessories | None.Matching gates.Guidance for specification option: To be specified separately; single and double available. |
Type | System 3. Guidance for specification option: Tubular fencing system with a top rail and heavy duty posts. |
Worked finish | Galvanized. Guidance for specification option: Standard. Galvanized and plastic coated, black RAL 9005. Galvanized and plastic coated, green RAL 6005. Galvanized and plastic coated, other. Guidance for specification option: Insert requirements. PVC coated. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Third party certifications
ISO 9001 Quality Management
ISO 9001:2015 Quality Management System
