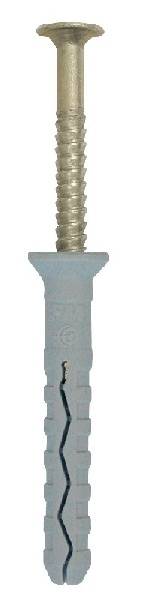

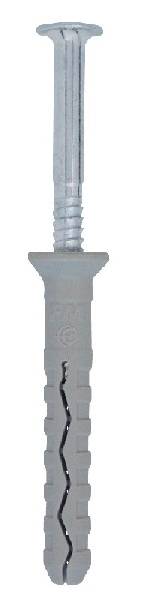

TSS Countersunk Pre-Assembled Nylon Plug - With Nail Screw
Verified by manufacturer 6 months ago
5 mm diameter, steel screw
5 mm diameter, steel screw
Range of countersunk Nylon plugs pre-assembled with nail screws.
Application
Suitable for connections into:
- Concrete.
- Solid stone.
- Solid brick.
Partially suitable for connections into:
- Honeycomb brick/ lightweight honeycomb brick.
- Hollow light aggregate block.
- Cell-like clay brick.
- Hollow dense aggregate block.
- Aerated concrete.
Description
Range of countersunk Nylon plugs pre-assembled with nail screws.
Features and benefits:
- CE marked.
- ETA-10/0190.
- Screws are single threaded white zinc-plated steel or stainless steel.
- Range of lengths and diameters.
- Suitable for use in a range of solid or hollow substrates.
- Also available with double threaded screw (specified separately).
The use of plastic anchors is not recommended for permanent suspended loading applications above 40°C.
General information
Color | Silver |
Material | Steel Nylon Stainless steel |
Shape | Other |
Length | 30 mm 40 mm 50 mm 60 mm 80 mm |
Width | 5 mm 6 mm 8 mm 10 mm |
Uniclass | |
CAWS | Z20/330 Nailed timber fasteners |
Specification data - Framing fasteners
Screw material | Carbon steel, grade 5.8.Guidance for specification option: White zinc-plated ≥5 µm, to ISO 4042. |
Sleeve material | Nylon Pa6. |
Head arrangement | Countersunk, nail. |
Anchor length | 30 mm (62200B0503000).Guidance for specification option: Pack size: 300. 40 mm (62200B0504000).Guidance for specification option: Pack size: 200. 50 mm (62200B0505000).Guidance for specification option: Pack size: 200. |
Thread diameter | 5 mm. |
