Description

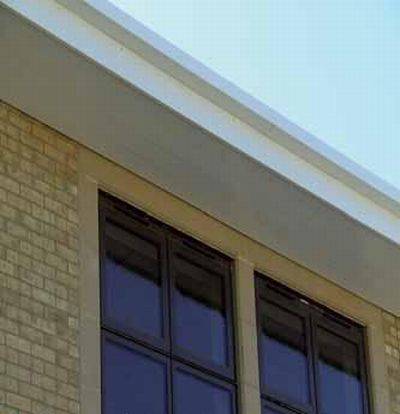

Pressed aluminium soffit boards, in a range of profiles, available in mill finish or polyester powder coated on the external face; the system is available with a range of fittings.

General information
Finish

Mill

Polyester powder coating

Uniclass 2015
Metal finishing trims (Pr_35_90_28_52)Primary
Specification data - Metal finishing trims
Product Reference

Trueline Soffits

Type

1

2

3

4

5

6

7

8

Finish

Mill

Polyester powder coating

Standard product features

Properties:

  • Soffits are fabricated from 2 mm thick aluminium alloy sheet.
  • Lengths and angles are supplied with one union connector.
  • Box ends and compound angles can be supplied on request.
  • Additional profiles, faceted and radius soffits can be supplied to order.

Product Options

Type 1 (Flat soffit):

  • SF1-250/3 - 260 mm girth x 3 m long.
  • SF1-500/3 - 500 mm girth x 3 m long.
  • SF1-750/3 - 750 mm girth x 3 m long.

Type 2 (Cassette soffit):

  • SF2-400/3 - 400 mm girth x 3 m long.
  • SF2-400/A - Angle 400 mm girth.

Type 3 (Top Hat soffit):

  • SF3-500/3 - 500 mm girth x 3 m long.
  • SF3-500/A - Angle 500 mm girth.

Type 4 (`Z` Plank soffit):

  • SF4-225/3 - 225 mm girth x 3 m long.
  • SF4-325/3 - 325 mm girth x 3 m long.
  • SF4-525/3 - 525 mm girth x 3 m long.

Type 5 (Square return soffit complete with closing trim):

  • SF5-350/3 - 350 mm girth x 3 m long.
  • SF5-500/3 - 500 mm girth x 3 m long.
  • SF5-650/3 - 650 mm girth x 3 m long.

Type 6 (Triangular soffit complete with closing trim):

  • SF6-625/3 - 625 mm girth x 3 m long.
  • SF6-625/A - Angle 625 mm girth.

Type 7 (Trapezoidal soffit complete with closing trim):

  • SF7-675/3 - 675 mm girth x 3 m long.
  • SF7-675/A - Angle 675 mm girth.

Type 8 (Venting soffit -supplied in any profile):

  • SF8.

Finish:

  • Mill.
  • Polyester powder coating.
