Description

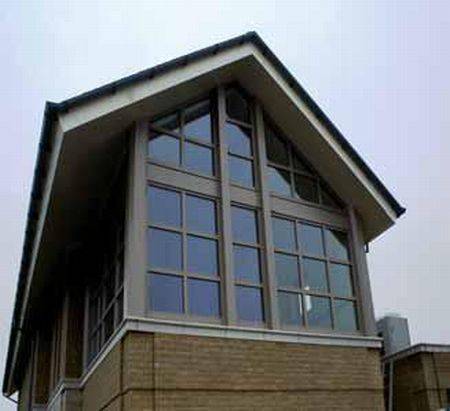

Pressed aluminium fascias in a range of profiles, available in mill finish or polyester powder coated on the external face; the system is available with a range of fittings.

General information
Finish

Mill

Polyester powder coating

Uniclass 2015
Metal finishing trims (Pr_35_90_28_52)Primary
Specification data - Metal finishing trims
Product Reference

Trueline Fascia

Type

1

2

3

4

5

6

7

8

9

10

11

Finish

Mill

Polyester powder coating

Standard product features

System properties:

  • Fascias are fabricated from 2 mm thick aluminium alloy sheet.
  • Lengths and angles are supplied with one union connector.
  • Box ends and compound angles can be supplied on request.
  • Additional girths and profiles, faceted and radius fascias can be supplied to order.

Product Options

Type 1 (Drip edge fascia):

  • FC1-175/3 - 175 mm girth x 3 m long.
  • FC1-250/3 - 250 mm girth x 3 m long.
  • FC1-325/3 - 325 mm girth x 3 m long.
  • FC1-175/A - Angle 175 mm girth.
  • FC1-250/A - Angle 250 mm girth.
  • FC1-325/A - Angle 325 mm girth.

Type 2 (Square return fascia):

  • FC2-225/3 - 225 mm girth x 3 m long.
  • FC2-300/3 - 300 mm girth x 3 m long.
  • FC2-375/3 - 375 mm girth x 3 m long.
  • FC2-225/A - Angle 225 mm girth.
  • FC2-300/A - Angle 300 mm girth.
  • FC2-375/A - Angle 375 mm girth.

Type 3 (Box face fascia):

  • FC3-425/3 - 425 mm girth x 3 m long.
  • FC3-425/A - Angle 425 mm girth.

Type 4 (Stepped fascia):

  • FC4-730/3 - 730 mm girth x 3 m long.
  • FC4-730/A - Angle 730 mm girth.

Type 5 (Capping):

  • FC5-475/3 - 475 mm girth x 3 m long.
  • FC5-475/A - Angle 475 mm girth.

Type 6 (Stepped fascia):

  • FC6-900/3 - 900 mm girth x 3 m long.
  • FC6-900/A - Angle 900 mm girth.

Type 7 (Single Vee fascia):

  • FC7-400/3 - 400 mm girth x 3 m long.
  • FC7-400/A - Angle 400 mm girth.

Type 8 (Double Vee fascia):

  • FC8-385/3 - 385 mm girth x 3 m long.
  • FC8-385/A - Angle 385 mm girth.

Type 9 (Combination fascia):

  • FC9-950/3 - 950 mm girth x 3 m long.
  • FC9-950/A - Angle 950 mm girth.

Type 10 (Parallel fascia):

  • FC10-390/3 - 390 mm girth x 3 m long.
  • FC10-390/A - Angle 390 mm girth.

Type 11 (Stepped fascia):

  • FC11-300/3 - 300 mm girth x 3 m long.
  • FC11-300/A - Angle 300 mm girth.

Finish:

  • Mill.
  • Polyester powder coating.
