Description

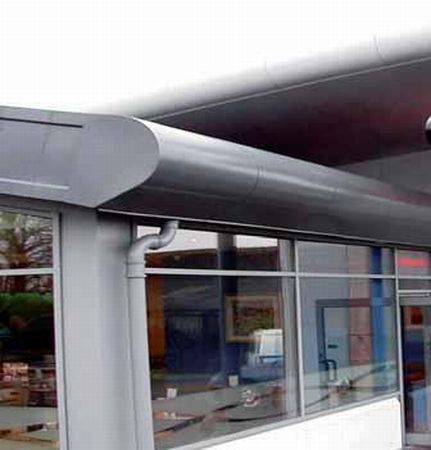

The Trueline bullnose fascia system is available in a range of profiles, manufactured from 2 mm thick, pressed aluminium. The fascias are available in mill finish or polyester powder coated on the external face; the system is available with a range of fittings and accessories.

General information
Finish

Mill

Polyester powder coating

Uniclass 2015
Metal finishing trims (Pr_35_90_28_52)Primary
Specification data - Metal finishing trims
Product Reference

Trueline Bullnose Fascia

Type

1

2

3

4

5

Quadrant

Finish

Mill

Polyester powder coating

Standard product features

Lengths are supplied with one union connector. Additional girths and profiles, faceted and radius bullnose fascias can be supplied to order.

Product Options

Type 1 (Bullnose fascia):

  • BNI-600/3 - 600 mm girth x 3 m.
  • BNI-800/3 - 800 mm girth x 3 m.
  • BNI-1000/3 - 1000 mm girth x 3 m.
  • BNI-600/A - Angle 600 mm girth.
  • BNI-800/A - Angle 800 mm girth.
  • BNI-1000/A - Angle1000 mm girth.
  • BNI-600/SE - Stopend 600 mm girth.
  • BNI-800/SE - Stopend 800 mm girth.
  • BNI-1000/SE - Stopend 1000 mm girth.

Type 2 (Bullnose fascia):

  • BN2-600/3 - 600 mm girth x 3 m.
  • BN2-800/3 - 800 mm girth x 3 m.
  • BN2-1000/3 - 1000 mm girth x 3 m.
  • BN2-600/A - Angle 600 mm girth.
  • BN2-800/A - Angle 800 mm girth.
  • BN2-1000/A - Angle1000 mm girth.
  • BN2-600/SE - Stopend 600 mm girth.
  • BN2-800/SE - Stopend 800 mm girth.
  • BN2-1000/SE - Stopend 1000 mm girth.

Type 3 (Bullnose Parallel fascia):

  • BN3-600/3 - 600 mm girth x 3 m.
  • BN3-800/3 - 800 mm girth x 3 m.
  • BN3-1000/3 - 1000 mm girth x 3 m.

Type 4 (Bullnose Elliptical fascia):

  • BN4-600/3 - 600 mm girth x 3 m.
  • BN4-800/3 - 800 mm girth x 3 m.
  • BN4-1000/3 - 1000 mm girth x 3 m.

Type 5 (Bullnose Wave fascia):

  • BN5-600/3 - 600 mm girth x 3 m.
  • BN5-800/3 - 800 mm girth x 3 m.
  • BN5-1000/3 - 1000 mm girth x 3 m.

Quadrant fascia:

  • QU600/3 - 600 mm girth x 3 m.
  • QU800/3 - 800 mm girth x 3 m.
  • QU1000/3 - 1000 mm girth x 3 m.

Finish:

  • Mill.
  • Polyester powder coating.
