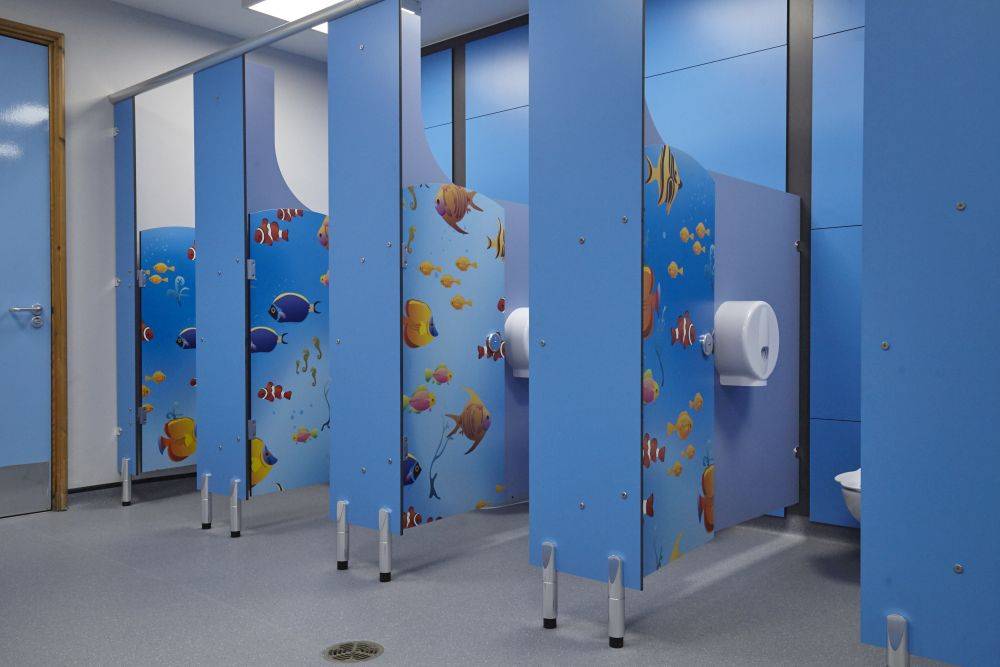

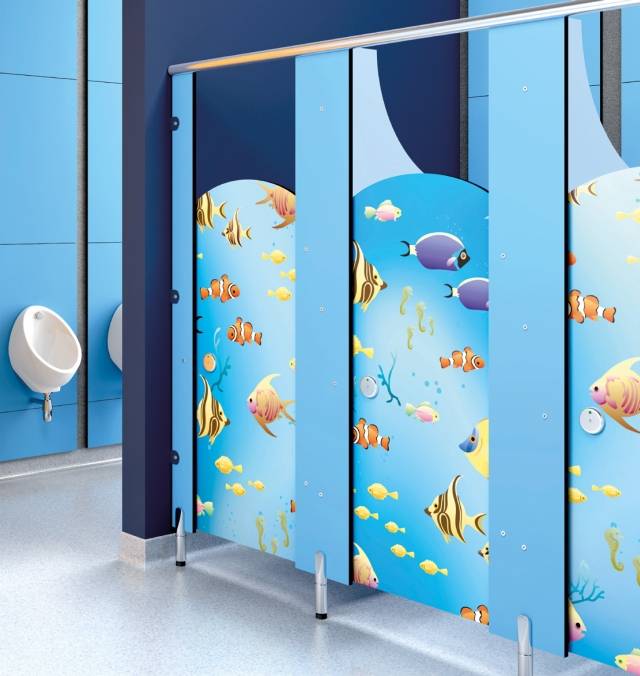

Trovex K2:12 Cubicles
Cubicles created for children with vivid designs, robust fittings and a choice of height options.
WC cubicle system designed specifically for children, featuring vivid designs, robust fittings and a choice of height options.
Features and benefits:
- Wide choice of laminate finishes and unique designs.
- Options on door and division shape and height.
- Robust anodized aluminium ironmongery.
- Anti-finger-trap hinges for safety.
- Indicator bolt with emergency release.
- Adjustable height pedestal support.
- Pre-drilled components for accurate on-site assembly.
- Durable SGL (solid grade laminate) panel.
Material | SGL 12 mm thick solid grade laminate. |
Finish | Fine grained texture, low glare surface |
Color | Choice available from Trovex laminate colour range |
Features | Choice of laminate finishes and designs, robust anodized aluminium ironmongery, anti-finger trap hinges for safety, indicator bolt with emergency release, adjustable height pedestal support, durable solid grade laminate panel, height includes 150 mm floor clearance |
Size | 1600 x 1960 mm |
Uniclass 2015 | |
CAWS | K32/10 Panel cubicles K32/120 Panel cubicles |
Product Reference | Trovex K2:12 Cubicles |
Material | SGL12 mm thick solid grade laminate. |
Panels | - |
Lower height | 1200 mm1350 mm1500 mm |
Colour/ finish | Insert requirement from manufacturer's literature. |
Doors | - |
Form | CurvedStraight |
Height | 1200 mm1350 mm1500 mm |
Colour/ Finish | Insert requirement from manufacturer's literature. |
Accessories | NoneCoat hooksToilet roll holdersSpecial orderInsert requirement; contact manufacturer for information. |
Standard product features | Panel height: 1960 mm (includes 150 mm floor clearance). Edges: Radiused and polished. Headrail: Polished anodized aluminium extrusion, bullnosed profile with end caps where applicable. Pedestal: Polished anodized aluminium casting with bolt through fixing to panel and adjustment to accommodate uneven floors. Ironmongery: Polished anodized aluminium anti-finger trap, rise and fall hinge, DDA-compliant indicator bolt with emergency release facility. |
Product Options | Maximum recommended depth: 1600 mm (including duct). |
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 IFC | - | 1 | 2.1 |
 Revit | - | 1 | 2.1 |
