Triton TT Waterstop - High-Swelling Hydrophilic Strip Waterstop

Verified by manufacturer 9 months ago

Triton Systems Third party certifications:
  • KIWA BDA

    KIWA BDA

    Certificate type

A formulated blend of sodium bentonite and butyl rubber, designed to be used as an active waterstop which reacts with water to seal construction joints within concrete.

Jump to:
+44 (0)1322 318830 Website

Application

Suitable for:

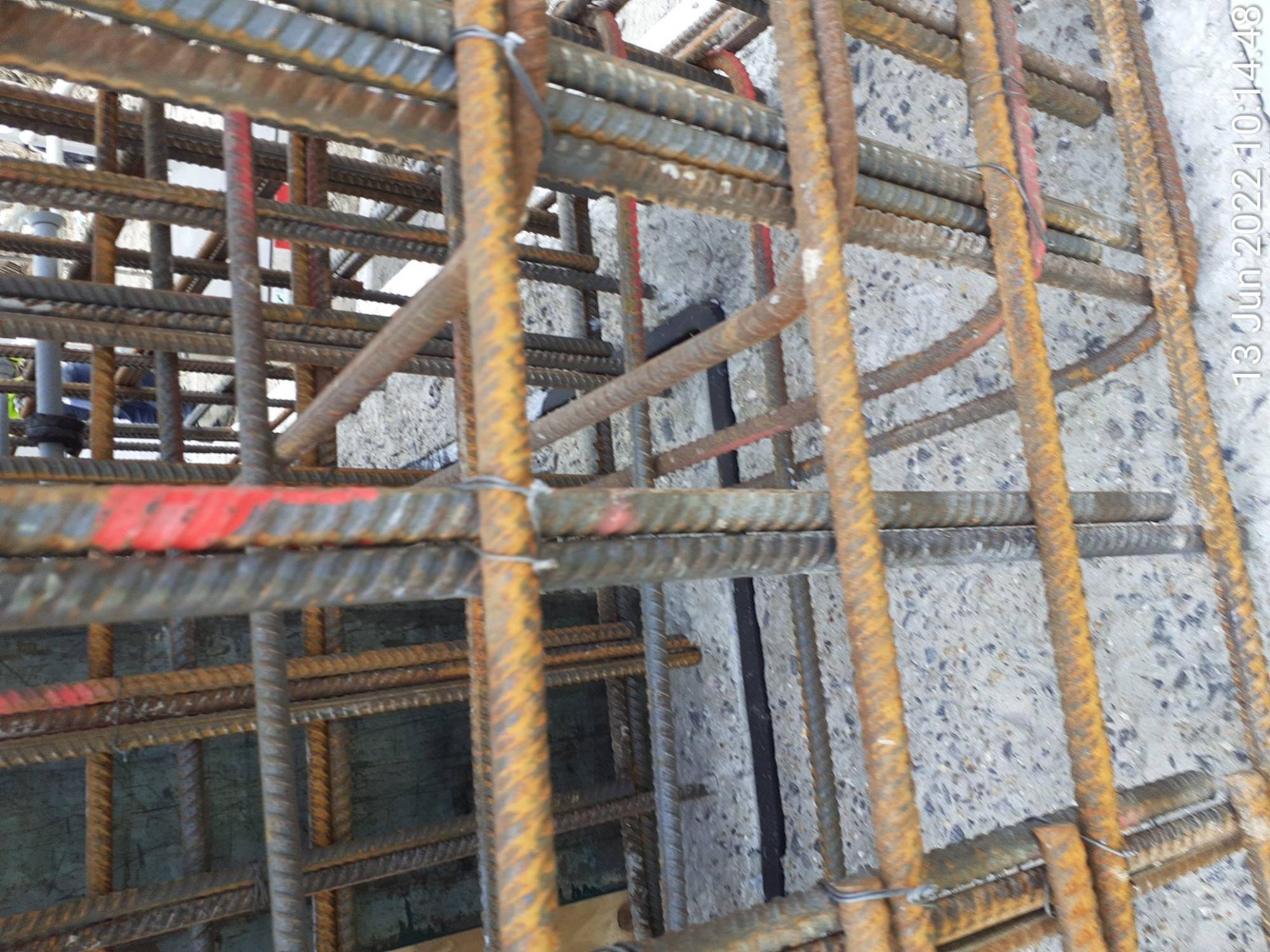

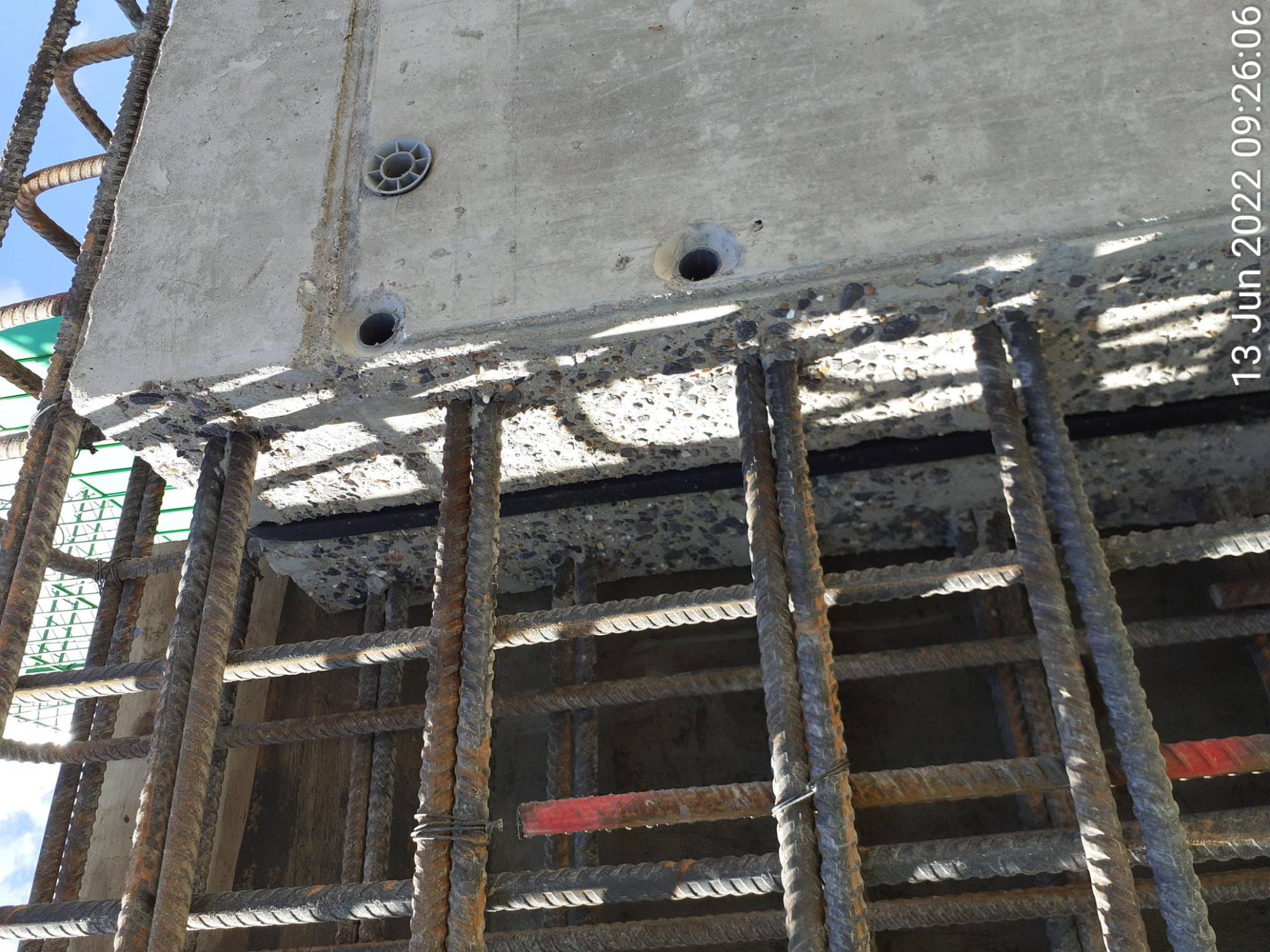

  • Poured in-situ construction joints.
  • Box culverts and retaining walls.
  • Cut and cover tunnel construction.
  • Underground (utility) vault seal.
  • New to old concrete.

Description

A formulated blend of sodium bentonite and butyl rubber, designed to be used as an active waterstop which reacts with water to seal construction joints within concrete. The seal resists hydrostatic pressure, in excess of 6 bar (60 m), by swelling up tp 270% if needed, stopping the passage of water through the joint.


Due to the sodium bentonite content, on contact with water, TT Waterstop will swell within its confinement, self injecting into localized honeycombing and minor fissures.


Features and benefits:

  • Non-dimensional swell allows complete injection to surrounding voids.
  • Conformable – can be applied to a range of irregular substrates.
  • Resists in excess of 6 bar hydrostatic pressure.
  • Simple butt-jointing on site application.
  • Reproducible swell after wet-dry cycle.
  • Unaffected by freeze/ thaw cycle.
  • The product is resistant to normal construction site activities, is unaffected by extremes of temperature and humidity and does not require any form of protection.
  • The swelling capacity provides the capability of the product to seal minor cracks and voids.
  • The product does not prejudice the fire-resistant properties of the building and will not contribute to the development stages of a fire or present a smoke or toxic hazard.
  • The gelling of sodium bentonite is adversely affected by the presence of electrolytes (particularly trivalent ions) and may also be affected by the presence of soluble cations as those found in chalk or lime soils. In such cases please seek advice from Triton’s technical team. The product is not affected by organic contaminants.


Limitations:

  • TT Waterstop is not designed to function in movement/ expansion joints.
  • TT Waterstop is designed for minimum 20 N/mm² reinforced concrete and requires confinement and a minimum 75 mm cover to all sides.
  • TT Waterstop should not be subjected to submersion or remain in contact with water prior to concrete pour.
  • If the product exhibits any considerable swell prior to concrete pour it must be replaced.
  • If sea water is present or ground water contamination exists or is expected, please consult the Triton technical team.

General information

Color

Black

Material

Composite

Shape

Other

Length

5000 mm

Guidance for specification option:

20 x 25 mm x 5m rolls – 6 rolls per box.

Box = 6 x 5 m rolls (30 m).

Box weight = 27 kg.

Width

25 mm

Guidance for specification option:

20 x 25 mm x 5m rolls – 6 rolls per box.

Box = 6 x 5 m rolls (30 m).

Box weight = 27 kg.

Height

20 mm

Guidance for specification option:

20 x 25 mm x 5m rolls – 6 rolls per box.

Box = 6 x 5 m rolls (30 m).

Box weight = 27 kg.

Uniclass

Pr_35_90_15_74 Rubber hydrophilic waterstopsPrimary

CAWS

E40/320 Hydrophilic waterstops

Product range

Watertight Concrete Range

Specification data - Rubber hydrophilic waterstops

Size:

5000 x 25 x 20 mm.

Guidance for specification option:

20 x 25 mm x 5m rolls – 6 rolls per box.

Box = 6 x 5 m rolls (30 m).

Box weight = 27 kg.

Weight

27 kg (box).

Guidance for specification option:

Six rolls per box.

Swelling capability

Edometric Swelling Index: >160%.

Expansion

270%.

Guidance for specification option:

Expansion due to contact with water (4 days).

Max swelling pressure (confined within joint)

>300 kPa.

Permeability

No flow.

Sustainability data

Material

Composite

Third party certifications

KIWA BDA

KIWA BDA

TT Waterstop BDA Certificate

Literature

TT Waterstop installation guide

TT Waterstop installation guide

TT Waterstop Hydrophilic waterbar

TT Waterstop Hydrophilic waterbar
