This product is no longer available

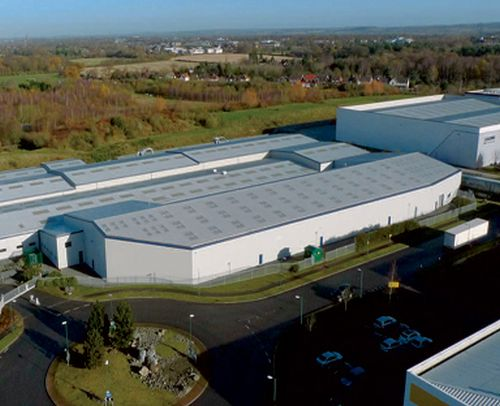

Description

The Trisomet® System from Tata Steel is an insulated roof and wall panel system comprising of a straightforward side lapping detail allowing faster installation and a wider spaced trapezoidal steel external skin, providing optimum performance for water drainage, strength and walkability. Its auto-hesively bonded polyisocyanurate (PIR) insulation core uses the latest foam technology providing enhanced environmental benefits, together with fire performance approved by LPCB.

Trisomet® System is a robust, one component, factory controlled, made to measure, insulated roof and wall panel system that provides time savings in completion of cladding programmes; eliminates the risk of interstitial condensation; and ensures uniform thermal performance throughout the building envelope. Suitable for roof pitches down to 4°. The system offers excellent economic and environmental performance, and comes with comprehensive certification and the Tata Steel Platinum Plus® System Guarantee.

Features:

  • The one fix construction provides fast and consistent installation, resulting in the contractor spending less time on site.
  • The panel is fully filled with closed cell foam eliminating the risk of interstitial condensation and providing a consistent insulation performance over the building envelope.
  • Trisomet® System is manufactured in factory conditions operating to BS EN ISO 9001.
  • Panel lengths up to 20 m are available to optimize speed of installation and minimize waste.
  • LPCB (Loss Prevention Certification Board) approval to LPS 1181-1 helps reduce insurance premiums and assures reaction to fire performance.
  • Fire resistance performance of 25 minutes insulation and four hours integrity achievable with standard fixing and sealing methods.
  • The Trisomet® System is a sustainable solution with responsible sourcing and traceability of all component materials. All steel elements are produced within the UK through Tata Steel’s steel production, strip processing, galvanizing, coating and profiling facilities.
  • The state of the art PIR core has zero ozone depletion potential (ODP) and a very low global warming potential (GWP) of less than 5.
  • Colorcoat® pre-finished steel products are used as standard on the Trisomet® System offering long term performance with the Confidex® Guarantee providing peace of mind for up to 40 years.
  • The system’s carbon footprint is minimized by the manufacturing process being situated adjacent to the Colorcoat® and galvanizing lines used to manufacture the pre-finished steel.
  • Platinum Plus® system guarantee offers a 25 year free material performance cover.

General information
Features

The one fix construction provides fast and consistent installation, resulting in the contractor spending less time on site

The panel is fully filled with closed cell foam eliminating the risk of interstitial condensation and providing a consistent insulation performance over the building envelope

Trisomet® System is manufactured in factory conditions operating to BS EN ISO 9001

Panel lengths up to 20 m are available to optimize speed of installation and minimize waste

LPCB (Loss Prevention Certification Board) approval to LPS 1181-1 helps reduce insurance premiums and assures reaction to fire performance

Fire resistance performance of 25 minutes insulation and four hours integrity achievable with standard fixing and sealing methods

The Trisomet® System is a sustainable solution with responsible sourcing and traceability of all component materials. All steel elements are produced within the UK through Tata Steel’s steel production, strip processing, galvanizing, coating and profiling facilities

The state of the art PIR core has zero ozone depletion potential (ODP) and a very low global warming potential (GWP) of less than 5

Colorcoat® pre-finished steel products are used as standard on the Trisomet® System offering long term performance with the Confidex® Guarantee providing peace of mind for up to 40 years

The system’s carbon footprint is minimized by the manufacturing process being situated adjacent to the Colorcoat® and galvanizing lines used to manufacture the pre-finished steel

Platinum Plus® system guarantee offers a 25 year free material performance cover

Uniclass 2015 Carbon steel insulating sandwich panels (Pr_25_71_14_22)
Specification data
Product Reference

Trisomet® System

Size/ design

As drawing

As schedule

Core insulation panel thickness

40 mm

60 mm

80 mm

100 mm

120 mm

135 mm

Internal facing -
Thickness

0.4 mm

0.5 mm

Finish

Colorcoat High Reflect

Pre-finished steel designed with maximum reflectivity.

Colorcoat HPS200 Ultra®

For aggressive internal atmospheres, not available with LP 1000.

Colorcoat PE15

Pre-finished steel.

Colour

Bright white

For Colorcoat PE15 and High Reflect.

Special order

For Colorcoat HPS200 Ultra and painted aluminium.

External facing -
Thickness

0.5 mm

0.7 mm

Finish

Colorcoat HPS200 Ultra®

Colorcoat LG®

Colorcoat Prisma®

Standard product features

Facing material:

Steel manufactured to BS EN 10326.

Panel length:

  • Maximum: 20 m
  • Minimum: 1.8 m (On-line), 300 mm (Off-line).

Panel cover width (standard):

1000 mm.

Panel core:

The PIR insulation within the system has zero ozone depletion potential (ODP) and a very low global warming potential (GWP) of less than five. Both these factors support the achievement of a high BREEAM rating.

Manufacturing tolerance (to BS EN 14509):

  • Cover width: ±2 mm.
  • Thickness: ±2 mm.
  • Squareness: <6 mm.
  • Length: < 3 m (±5 mm).
  • Length: > 3 m (±10 mm).

Fire performance:

The Trisomet® System carries Grade EXT-B approval by the LPCB. The panel achieves a Grade AA rating in accordance with BS 476-3, which tests for external surface spread of flame and fire penetration (AA is the best result achievable). The internal surface of the panel complies with Class ‘O’ in accordance with the Building regulations when tested to BS 476-6 and BS 476-7 and also achieves a Class B s2 rating in accordance with BS EN 13501-1.

Water penetration:

Trisomet® System is watertight up to a pressure of 1050 Pa, in accordance BS EN 12865.

Air tightness:

In laboratory tests in accordance with BS EN 12114, the sealed panel shows evidence of air leakage as low as 0.43 m³/h/m². A practical expectation for a finished building, with effective sealing at all junctions would be 3–5 m³/h/m². However enhanced detailing practises on large shed buildings can realise air leakage performance figures of less than 3 m³/h/m².

Environmental credentials:

The Trisomet® System is a sustainable solution with responsible sourcing and traceability of all component materials. All steel elements are produced within the UK Tata Steel’s steel production, strip processing, galvanizing, coating and profiling facilities. In addition the system’s carbon footprint is further minimized by the manufacturing process being situated adjacent to Colorcoat® pre-finished steel production facility. All steel elements are 100% recyclable back into new steel products, without loss of quality. The insulation can be separated using existing scrap shredding technology, after which the materials can be recovered or recycled.

Product Options

Core insulation thickness:

- Weight (kg/m²):

  • 40 mm: 9.23.
  • 60 mm: 10.01.
  • 80 mm: 10.40.
  • 100 mm: 11.22.
  • 120 mm: 12.03.
  • 135 mm: 12.76.

- U-value (W/m²K):

  • 40 mm: 0.46.
  • 60 mm: 0.33.
  • 80 mm:0.25
  • 100 mm: 0.20.
  • 120 mm: 0.16.
  • 135 mm: 0.15.

Panel end cut backs:

Panels will always have one flush end and one cutback end; therefore, they will be handed and should be ordered according to the direction of lay required. Recommended end laps are 50 mm for horizontal, 100 mm for vertical and 150 mm for roof applications.
