Site assembled steel vertical walling system.
Suitable for vertical design walling applications.
Site assembled walling system with internal and external profiles.
The Trisobuild® systems can be tailored to meet project requirements including fire resistance and acoustic performance. The system comprises of a Colorcoat® pre-finished steel trapezoidal liner profile, an Instaloc® Plus spacer system, an insulation layer and a Colorcoat® pre-finished steel external weathering profile.
The Trisobuild® VW System is a vertically run wall system which can provide an efficient external cladding system. The system provides the designer with an infinite number of combinations to create a unique aesthetic.
The capability of the systems can also allow the designer to specify the correct performance for the building and elevation. With tested components, the system provides a range of thermal, acoustic and fire resistance performance levels. The wall system can achieve up to four hours fire integrity and one hour fire insulation.
Features and benefits:
Trisobuild® FW (fire wall) range system build-up:
Reaction and resistance to fire:
All quoted system U-values and construction ‘psi’ and f values have been computer modelled in accordance with EN ISO 10211 as stated in the Metal Cladding and Roofing Manufacturers Association (MCRMA) Technical Note 14 by trained and experienced technical engineers.
U-Values are based on secondary steelwork support at 1.8 m centres, 1.2 m bracket spacing and insulation with a 0.040 W/mK thermal conductivity.
U-Values are based on an LP1000 liner, secondary steelwork support and brackets at 1.5 m centres, 1.5 m vertical bar spacing and insulation with a 0.040 W/mK thermal conductivity.
Wide range available.
A minimum 160 mm Knauf FactoryClad insulation quilt.
Carbon steel insulating sandwich panels
Colorcoat HPS200 Ultra® pre-finished steel.
Colorcoat Prisma® pre-finished steel.
Colorcoat® High Reflect steel.
Colorcoat® PE 15 steel.
Maximum span limit between supports of 1.525 m.
Consult manufacturer and insert requirements.
Insulation depth: 140 mm. U-value: 0.30 W/m²K.
Insulation depth: 160 mm. U-value: 0.26 W/m²K.
Insulation depth: 180 mm. U-value: 0.23 W/m²K.
Insulation depth: 200 mm. U-value: 0.21 W/m²K.
Insulation depth: 220 mm. U-value: 0.19 W/m²K.
Insulation depth: 240 mm. U-value: 0.18 W/m²K.
Insulation depth: 260 mm. U-value: 0.16 W/m²K.
Insulation depth: 280 mm. U-value: 0.15 W/m²K.
Insulation depth: 300 mm. U-value: 0.14 W/m²K.
Reaction to fire
Panel external face.
Panel internal face
Integrity: 240 minutes. Insulation: 30 minutes.
Country of product manufacture
All steel elements are recyclable, insulation is recyclable if kept clean.
Loss Prevention Certification Board - Certificate 460a
ISO 14001 / 45001

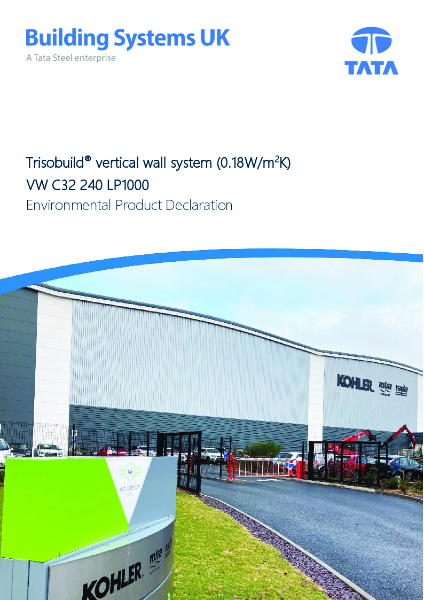

EPD Trisobuild site-assembled Roofing & Wall Cladding - 0.26 u-value
EPD Trisobuild site-assembled Roofing & Wall Cladding - 0.24 u-value
EPD Trisobuild site-assembled Roofing & Wall Cladding - 0.18 u-value
