Description

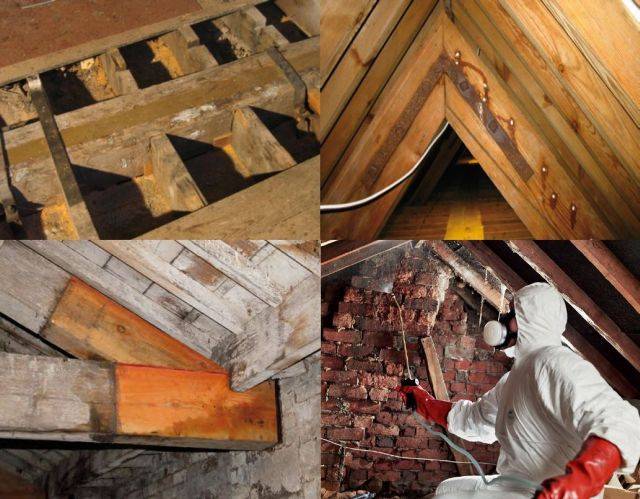

Pultruded glass reinforcement rods for timber repairs, intended for use with Trimol 36 timber grout.

The pultrusion process results in a high glass content of up to 80% by weight, together with precise positioning of continuous glass fibres parallel to the axis of the rod.

Benefits:

  • Outstanding tensile strength, comparable with that of high tensile steel.
  • Lightweight.
  • High voltage resistance.
  • Excellent resistance against many corrosive media.
  • Good thermal properties.

General information
Specification data
Product Reference

Trimol 50 Reinforcement Rods

Diameter

Maximum diameter, 1¼" (37.8 mm).

Length

Maximum stock length 21' (6.4 m). Longer lengths can be pulled on request.

Standard product features

Performance:

  • Tensile strength (Ultimate): 190–200 x 10³ lbf/in².
  • Flexural strength (ASTM D349-56): 170–200 x 10³ lbf/in².
  • Compressive strength (ASTM D349-56): 98–105 x 10³ lbf/in².
  • Modulus of elasticity (tension): 7.2–7.35 x E6.
  • Modulus of elasticity ( bending): 5.3–5.5 x E6.
  • Modulus of elasticity (compression): 2.6–3.3 x E6.
