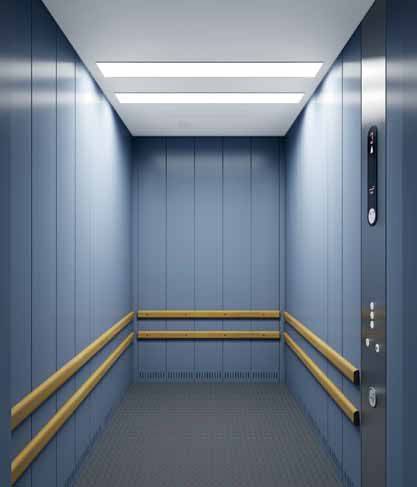

Transys™ DX Goods Lift

Name: Transys™ DX Goods Lift
Brand: KONE plc
SKU: gjUweypyncL5SFHcw3gpT1

Verified by manufacturer 3 months ago

Signalization: KSS 700

KONE plc

Third party certifications:

Alcumus SafeContractor
Certificate type
CHAS
Certificate type
Constructionline Gold
Certificate type
ISO 45001 Health and Safety Management
Certificate type
smas WORKSAFE
Certificate type
ISO 14001 Environmental Management Systems
Certificate type
ISO 9001 Quality Management
Certificate type
EPD
Certificate type

Goods lift with 5000 kg maximum capacity and up to 1.6 m/s. With built-in connectivity for improved goods and passenger flow, discover a durable lift with a new and inspiring user experience.

Jump to:

+44 (0)345 199 9999 Website

Application

Ideal for a multitude of demanding vertical transportation applications including supermarkets, shopping centres, airports, warehouses, hospitals, hotel, industrial plants and offices.

Description

Machine-room-less goods and service lift. Standard features include a robust car, a through-car option, flexible car dimensions and full-width automatic doors. Incorporates a highly reliable and eco-efficient KONE EcoDisc hoisting machine for exceptional power and performance, which requires 70% less energy than a hydraulic drive unit.

Solutions are available for up to four car groups covering 12 floors and 40 m travel (maximum).

Features and benefits:

API ready.
Connected.
Maximum load capacity 5000 kg.
Maximum speed 1.6 m/s.
Maximum travel 40 m.
Maximum floors 12 floors.
Maximum persons 53.
Maximum group size 6.
Easy to upgrade.
Built-in connectivity – Future-proof the building and make the lift even smarter with new solutions and services enabled by cloud connectivity and based on KONE APIs (Application Programming Interface).
Machine room-less lift that offers new solutions and services enabled by cloud connectivity and based on KONE APIs.
A redefined lift experience – Give tenants and visitors a different type of commercial lift with new material, lighting, and signalisation options.
Guaranteed compliance – A machine room-less lift that helps ensure compliance with various codes and regulations, including accessibility, vandal-resistance, and operation during a fire.
Eco-efficiency – Save energy and cut your building’s carbon footprint with a machine room-less lift that offers eco-efficient hoisting, lighting, and standby solutions.

Controls:

Curtain of light (COL) – Safety features, prevents door closure when object detected in path of doors.

General information

Color	Beige Bronze Copper Blue Black Green Gold Silver Other Grey Clear Show more Manufacturer guidance Available in a range of colours.
Finish	Anti-microbial Anti-graffiti Laminated Matt Stainless steel Other Show more Manufacturer guidance Available in a range of finishes.
Material	Steel Laminate Guidance for specification option: High pressure laminate. Glass Aluminium Rubber Wood Show more
Shape	Rectangle
Length	1750 mm 2300 mm 2400 mm 2600 mm 2650 mm 2700 mm 2750 mm 3000 mm 3400 mm Show more
Width	1200 mm 1300 mm 1400 mm 1500 mm 1800 mm 2000 mm 2100 mm Show more
Height	2100 mm 2200 mm 2300 mm 2400 mm
Warranty description	One year Guidance for specification option: Standard. Three year Guidance for specification option: Can be extended to three years.

Uniclass	Ss_80_50_60_26 Electric passenger and goods-passenger lift systemsPrimary
CAWS	X12/110 Vertical lifting platform systems X12/350 Platform lifts

Product range	Lifts

Specification data - Electric passenger and goods-passenger lift systems

System performance	Building description.
Lift type	Goods passenger lift.
Drive space	Machine room-less.
Door arrangement	Single entrance. Opposite front and rear entrances.
Drive position	Top drive.
Control of lift drive	Non-regenerative. Fully regenerative. Guidance for specification option: Available as an option. Contact manufacturer for details.
Lift shaft and machine room cabling and containment	-
Cable type	Manufacturer's standard.
Containment	Manufacturer's standard.

Accessories	Not required. BR2 - buffer rail - flemish linen. BR2 - buffer rail - natural oak. BR2 - buffer rail - blackened oak. L234 - seat - granite grey.
Handrail	Not required. Handrail HR61. Handrail HR65. Handrail HR34 LBE (black). Handrail HR81-HR81TR. Guidance for specification option: F, SS1, P70. Handrail HR71 WDO. Guidance for specification option: Blackened Oak with brushed stainless steel fixings. Handrail HR64-HR64TR. Guidance for specification option: F, SS1, P70, EN81-70 compliant. Show more Manufacturer guidance Car interior handrail.
Finish	Not applicable. Asturias satin, brushed. Carbon black, brushed. Shangri-La Gold, brushed. Manufacturer guidance Car Interior Handrail Finish.
Ceiling	CL151, MP2 - golden. Guidance for specification option: Premium suspended ceiling. Lighting: LED panel. CL151, Shangri-La gold (SS1). Guidance for specification option: Premium suspended ceiling. Lighting: LED panel. CL182, cottongrass white (P63). Guidance for specification option: Premium suspended ceiling. Lighting: LED spots & LED bar. CL182, asturias satin (F). Guidance for specification option: Premium suspended ceiling. Lighting: LED spots & LED bar. CL182, murano mirror (H). Guidance for specification option: Premium suspended ceiling. Lighting: LED spots & LED bar. CL182, Shangri-La gold (SS1). Guidance for specification option: Premium suspended ceiling. Lighting: LED spots & LED bar. CL182, carbon black (CB). Guidance for specification option: Premium suspended ceiling. Lighting: LED spots & LED bar. CL195, cottongrass white (P63). Guidance for specification option: Premium suspended ceiling. Lighting: 3D design ceiling, LED spots & LED bar. CL196, cottongrass white (P63). Guidance for specification option: Premium suspended ceiling. Lighting: LED spots & LED bar. CL196, asturias satin (F). Guidance for specification option: Premium suspended ceiling. Lighting: LED spots & LED bar. CL196, murano mirror (H). Guidance for specification option: Premium suspended ceiling. Lighting: LED spots & LED bar. CL196, carbon black (CB). Guidance for specification option: Premium suspended ceiling. Lighting: LED spots & LED bar. CL80 / CL80V, cottongrass white (P63). Guidance for specification option: Standard ceiling. Lighting: LED spots. CL80 / CL80V, asturias satin (F). Guidance for specification option: Standard ceiling. Lighting: LED spots. CL80 FFL/FF, cottongrass white (P63). Guidance for specification option: Standard ceiling. Lighting: LED spots. CL80 FFL/FF, asturias satin (F). Guidance for specification option: Standard ceiling. Lighting: LED spots. CL81, asturias satin (F). Guidance for specification option: Standard ceiling. Lighting: LED spots (black). CL81, carbon black(CB). Guidance for specification option: Standard ceiling. Lighting: LED spots (black). CL82, cottongrass white (P63). Guidance for specification option: Standard ceiling. Lighting: Directed LED Spots, Coloured spot reflector in white, yellow, or blue. CL82, asturias satin (F). Guidance for specification option: Standard ceiling. Lighting: Directed LED Spots, Coloured spot reflector in white, yellow, or blue. CL82, murano mirror (H). Guidance for specification option: Standard ceiling. Lighting: Directed LED Spots, Coloured spot reflector in white, yellow, or blue. CL96 / CL96V, cottongrass white (P63). Guidance for specification option: Standard ceiling. Lighting: LED PCB. CL96 / CL96V, asturias satin (F). Guidance for specification option: Standard ceiling. Lighting: LED PCB. CL96 FFL/FF, cottongrass white (P63). Guidance for specification option: Standard ceiling. Lighting: LED PCB. CL96 FFL/FF, asturias satin (F). Guidance for specification option: Standard ceiling. Lighting: LED PCB. CL109, cottongrass white (P63). Guidance for specification option: Standard ceiling. Lighting: LED PCB. CL109, asturias satin (F). Guidance for specification option: Standard ceiling. Lighting: LED PCB. Show more Manufacturer guidance Car interior ceiling.
Fixing	Black. Stainless steel.
Floor	Rubber, RC30 - carbon black . Rubber, RC31 - quarz grey. Rubber, RC34 - accent green. Rubber, RC35 - carbon grey. Rubber, RC32_A - beige grey. Guidance for specification option: For CNE countries Rubber, RC33_A - granite grey. Guidance for specification option: For CNE countries. Composite stone / ceramic, SF40_A - white marble. Guidance for specification option: For CNE countries. Composite stone / ceramic, SF41_A - beige chalk. Guidance for specification option: For CNE countries. Composite stone / ceramic, SF42_A - grey granite. Guidance for specification option: For CNE countries. Plywood, FFP - film face plywood. Eco floor, EF - natural oak. Steel, SS - stainless steel. Steel, ST - chequered Steel. Local flooring, raw surface for local finishing. Show more Manufacturer guidance Car interior floor.
Walls	Smart surface laminate, L243 - quarz grey. Smart surface laminate, L244 - trusted blue. Smart surface laminate, L245 - granite grey. 3D laminate, L215 - aqua black. 3D laminate, L216 - windwall white. Metallic laminate, L200 - oriental gold. Laminate, L209 - snowberry white. Laminate, L230 - beige. Laminate, L231 - blue reflection. Laminate, L232 - lichen green. Laminate, L233 - quartz grey. Laminate, L234 - granite grey. Laminate, L235 - whitened ash. Laminate, L236 - natural oak. Laminate, L237 - greyed oak. Laminate, L239 - blackened oak. Laminate, L238 - warm oak. Laminate, L240 - cool grey. Laminate, L241 - warm brown. Brushed anti fingerprint stainless steel, CB - carbon black. Brushed anti fingerprint stainless steel, CG - copper gold. Brushed anti fingerprint stainless steel, SS7 - satin steel. Brushed stainless steel, F - asturias satin . Brushed stainless steel, F -SS1 - Shangri La gold. Mirror polished stainless steel, H - hurano mirror. Mirror polished stainless steel, SS2 - vegas gold. Wet polished stainless steel, A - acid proof. Etched stainless steel, ES10 - circulus. Etched stainless steel, ES6 - eco silver bamboo. Etched stainless steel, ES7 - sequency. Etched stainless steel, ES8 - polygon. Painted steel, P51 - misty grey. Painted steel, P61 - granite grey. Painted steel, P62 - blue reflection. Painted steel, P63 - cottongrass white. Painted steel, P64 - cement green. Painted steel, P65 - trusted blue. Painted steel, P66 - iron stone red. Textured stainless steel, K - Scottish quad. Textured stainless steel, TS1 - flemish linen. Aluminium, AL - aluminium. Brushed stainless steel for landing devices, ST4 - silver. Brushed stainless steel for landing devices, MP1 - silver. Brushed stainless steel for landing devices, MP2 - golden. Show more
Type	Not required. Mirror glass, GM1 - light silver. Mirror glass, GM2 - dark silver. Painted glass, GP1 - satin bronze. Painted glass, GP2 - satin silver. Painted glass, GP3 - spring yellow. Painted glass, GP4 - trusted blue glass. Painted glass, GP5 - Carbon black glass. Show more Manufacturer guidance Car Interior Mirror.
Size	Full width and height (FW/FH). Full width partial height (FW/PH). Partial width full height (PW/FH). Partial width and height (PW/PH). Manufacturer guidance Car Interior Mirror.
Skirting	Skirting - asturias satin. Skirting - shangri-la gold. Guidance for specification option: SS1. Extended lead time. Skirting - F1, asturias satin. Skirting - A, acid proof.
Doors	Brushed anti fingerprint stainless steel, CB - carbon black. Brushed anti fingerprint stainless steel, CG - copper gold. Brushed anti fingerprint stainless steel, SS7 - satin steel. Brushed stainless steel, F - asturias satin. Brushed stainless steel, F1 - asturias satin. Brushed stainless steel, SS1 - Shangri La gold. Mirror polished stainless steel, H - murano mirror. Etched stainless steel, ES10 - circulus. Painted steel, P51 - misty grey. Painted steel, P61 - granite grey. Painted steel, P63 - cottongrass white. Textured stainless steel, K - scottish quad. Textured stainless steel, TS1 - flemish linen. Transparent glass, TW1 - Glass. Show more Manufacturer guidance Car interior doors.
Landing doors glazing	Not required. Glazed. Semi-glazed.
Finish	Aluminium (A). Guidance for specification option: Side wall and wall mounted. Asturias satin (F). Flemish linen (M). Guidance for specification option: Integrated into door frame. Scottish quad (K). Guidance for specification option: Integrated into door frame. Zinc coated (Z). Guidance for specification option: Integrated into door frame. Manufacturer guidance Maintenance Access Panel (MAP).
Maintenance access panel (MAP)	Integrated into door frame. Side wall mounted. Wall mounted.
Map panel	Aluminium (A). Guidance for specification option: Side wall and wall mounted. Asturias satin (F). Flemish linen (M). Guidance for specification option: Integrated into door frame. Scottish quad (K). Guidance for specification option: Integrated into door frame. Zinc coated (Z). Guidance for specification option: Integrated into door frame.
Entry configuration	Single. Through.
Signalization	KSC 733 full height. KSC 737 full height.
Landing display	KSL 730. KSI 733. KSI 737. KSH 730. KSH 730. KSF 730. KSA 733. Manufacturer's standard. Show more Manufacturer guidance Signalization Landing Display.
Finish/ Colour	Silver Brushed. Guidance for specification option: Stainless steel. Silver polished. Guidance for specification option: Stainless steel. Golden polished. Guidance for specification option: Stainless steel. Carbon black. Guidance for specification option: Brushed stainless steel (Anti-finger print). Copper gold. Guidance for specification option: Brushed stainless steel (Anti-finger print). Manufacturer guidance Landing device finish / colour.
Faceplate	Asturias satin. Guidance for specification option: Brushed stainless steel. Murano mirror. Guidance for specification option: Polished stainless steel. Vegas gold. Guidance for specification option: Polished Steel. Carbon black. Guidance for specification option: Steel (Anti-fingerprint). Copper gold. Guidance for specification option: Brushed Stainless Steel (Anti-fingerprint). Manufacturer guidance Signalization Car Operating Panel Faceplate.
Display	Scrolling dot matrix (KSC 733). Fullgraphic LCD (KSC 737). Manufacturer guidance Signalization displays.
Controls	3D passenger detector. Guidance for specification option: Opens the lift doors as passengers approach and keeps them open as you enter or exit. Accurate levelling doors open (ACL/B). Car light stand-by (OCL A). Guidance for specification option: Eco-efficiency feature. Corridor illuminating control (CIC). Door open with extended door time (DOE B). Drive standby. Guidance for specification option: Consult with KONE for details. E-Link. Guidance for specification option: Remote monitoring system for increased security and provides advanced notice of lift shutdown. Fire alarm link to nearest landing (EBD A). Locking of car calls (LOC). Lift announcer (ACU). Priority call in car (PRC). Regenerative drive. Guidance for specification option: Recovers energy while descending with a heavy load or light load ascending. Consult with KONE for details. Ventilation stand-by (OCV A). Show more
Speed	0.5 m/s. 1.0 m/s. Guidance for specification option: 2500, 3000 or 4000 kg only. 1.6 m/s. Guidance for specification option: 2500 or 3000 kg only. Manufacturer guidance Car speed.
Door clear height	2000 mm. 2100 mm. 2200 mm. 2300 mm. 2400 mm. Manufacturer guidance Car door clear height.
Size (w x d)	1100 x 2000 mm SEC. Guidance for specification option: Single entrance car. 1000 kg load, 1000 mm door width. 1200 x 2300 mm SEC. Guidance for specification option: Single entrance car. 1275 kg load, 1100 mm door width. 1400 x 2400 mm SEC. Guidance for specification option: Single entrance car. 1600 kg load, 1400 mm door width. 1500 x 2700 mm SEC. Guidance for specification option: Single entrance car. 2000 kg load, 1500 mm door width. 1800 x 2700 mm SEC. Guidance for specification option: Single entrance car. 2500 kg load, 1400 mm door width. 2100 x 3400 mm SEC. Guidance for specification option: Single entrance car. 4000 kg load, 1800 mm door width. 2500 x 3500 mm SEC. Guidance for specification option: Single entrance car. 5000 kg load, 2200 mm door width. 1000 x 2000 mm TTC. Guidance for specification option: Opposite front and rear entrances car. 1000 kg load, 900 mm door width. 1200 x 2200 mm TTC. Guidance for specification option: Opposite front and rear entrances car. 1275 kg load, 1100 mm door width. 1400 x 2400 mm TTC. Guidance for specification option: Opposite front and rear entrances car. 1600 kg load, 1400 mm door width. 1800 x 2700 mm TTC. Guidance for specification option: Opposite front and rear entrances car. 2500 kg load, 1400 mm door width. 2000 x 2700 mm TTC. Guidance for specification option: Opposite front and rear entrances car. 3000 kg load, 1800 mm door width. 2100 x 3400 mm TTC. Guidance for specification option: Opposite front and rear entrances car. 4000 kg load, 1800 mm door width. 2400 x 3500 mm TTC. Guidance for specification option: Opposite front and rear entrances car. 5000 kg load, 2100 mm door width. As drawing. Guidance for specification option: Special, insert details. Show more

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	Finland
Material	Steel Laminate Guidance for specification option: High pressure laminate. Glass Aluminium Rubber Wood Show more
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	23586.8 kg CO₂ eq/kg
Recyclability	89%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	35 %

Third party certifications

Alcumus SafeContractor

Alcumus SafeContractor accreditation

CHAS

CHAS certificate of accreditation

Constructionline Gold

ISO 45001 Health and Safety Management

ISO 45001:2018 safety management system

smas WORKSAFE

SMAS Worksafe

ISO 14001 Environmental Management Systems

ISO 14001

ISO 9001 Quality Management

ISO 9001 certificate

EPD

KONE Transys EPD

Literature

KONE Transys DX Freight and Service Lift

KONE Transys DX brochure

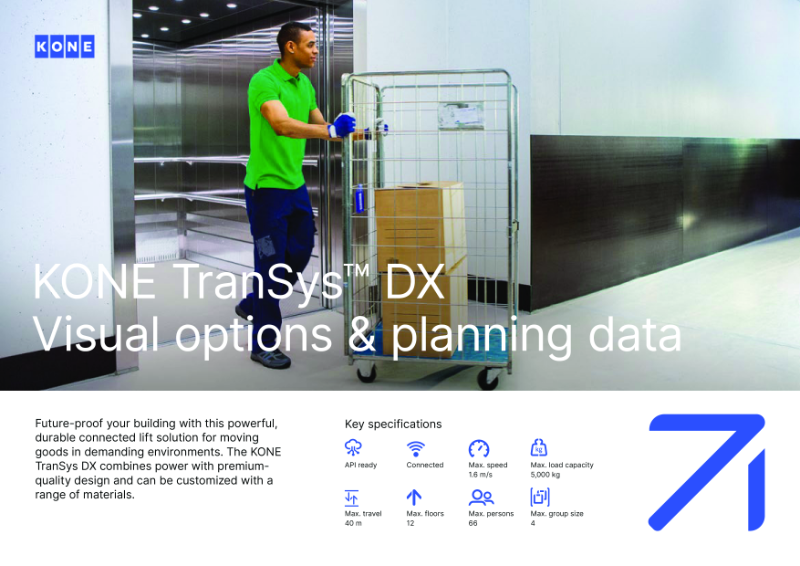

KONE Transys DX Visual Brochure

Case studies

122 Leadenhall Street

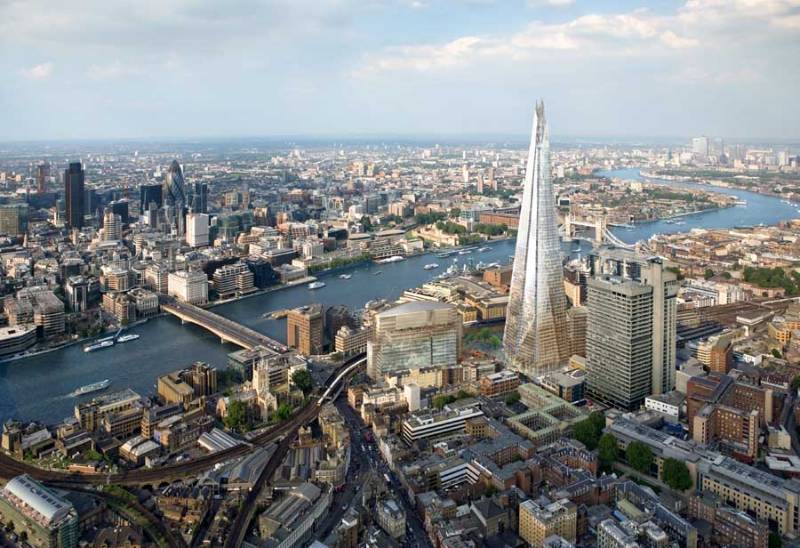

The Shard
