Description

Flexible transition ramp trims.

Ramp trims are used to take the edge of an installed floorcovering down to the base residual flooring. They protect the floor material edge and reduce the risk of the junction becoming a trip hazard. Different ramp back heights accommodate a range of floorcovering gauges.

Features and benefits:

  • For internal use with resilient floorcoverings.
  • Can be curved on site.
  • Manufactured in Britain.
  • Cost-effective.
  • Available in a variety of stock lengths and packing; see manufacturer's literature for details.

Consult with manufacturer's technical literature for further details.

General information
Material

Polyvinyl chloride (PVC)

Uniclass 2015 Stair trims (Pr_35_90_31_84)
Specification data
Product Reference

Transition Ramp Trims, Range 3 mm to 10 mm

Type

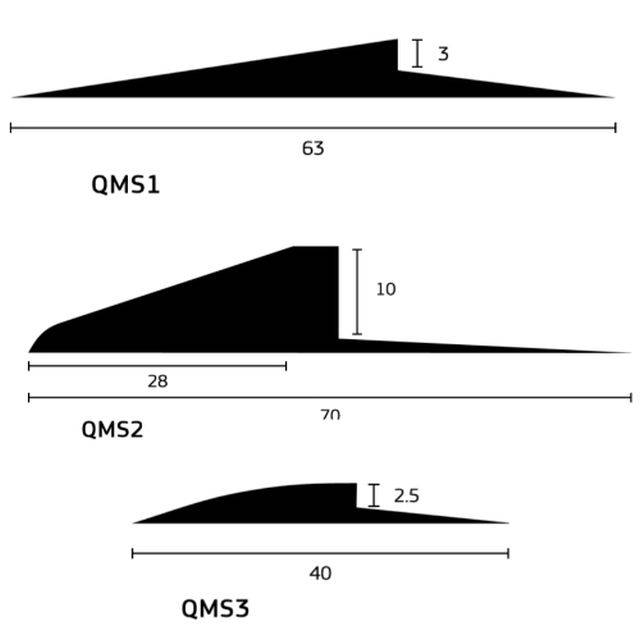

QMS1

Smooth; width: 63 mm; gauge: 3 mm. For floorcovering transition: 0 to 3 mm.

QMS2

Smooth; width: 70 mm; gauge: 10 mm. For floorcovering transition: 0 to 10 mm.

QMS3

Smooth, curved; width: 40 mm; gauge: 2.5 mm. For floorcovering transition: 0 to 2.5 mm.

QT450

Ribbed; width: 33 mm; gauge: 4.5 mm. For floorcovering transition: 0 to 4.5 mm.

QT600

Smooth; width: 38 mm; gauge: 6 mm. For floorcovering transition: 0 to 6 mm.

QTF450

Smooth; width: 33 mm; gauge: 4.5 mm. For floorcovering transition: 0 to 4.5 mm.

QTR10

Shower threshold, ridged; width: 120 mm; gauge: 10 mm. For floorcovering transition: 0 to 3 mm.

Light reflectance value (LRV)/ Colour

6 Black

7 Dark Brown

15 Dark Grey

29 Cloud Grey

81 White

Standard product features

Material:

Polyvinyl chloride (PVC).

Fixing:

Contact adhesive.
