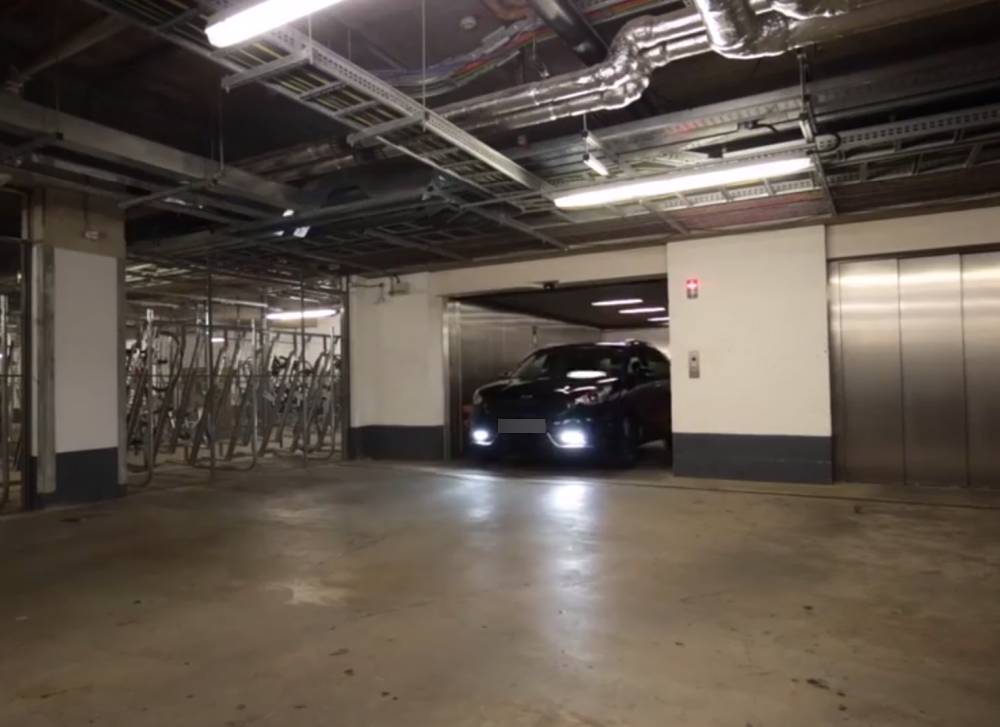

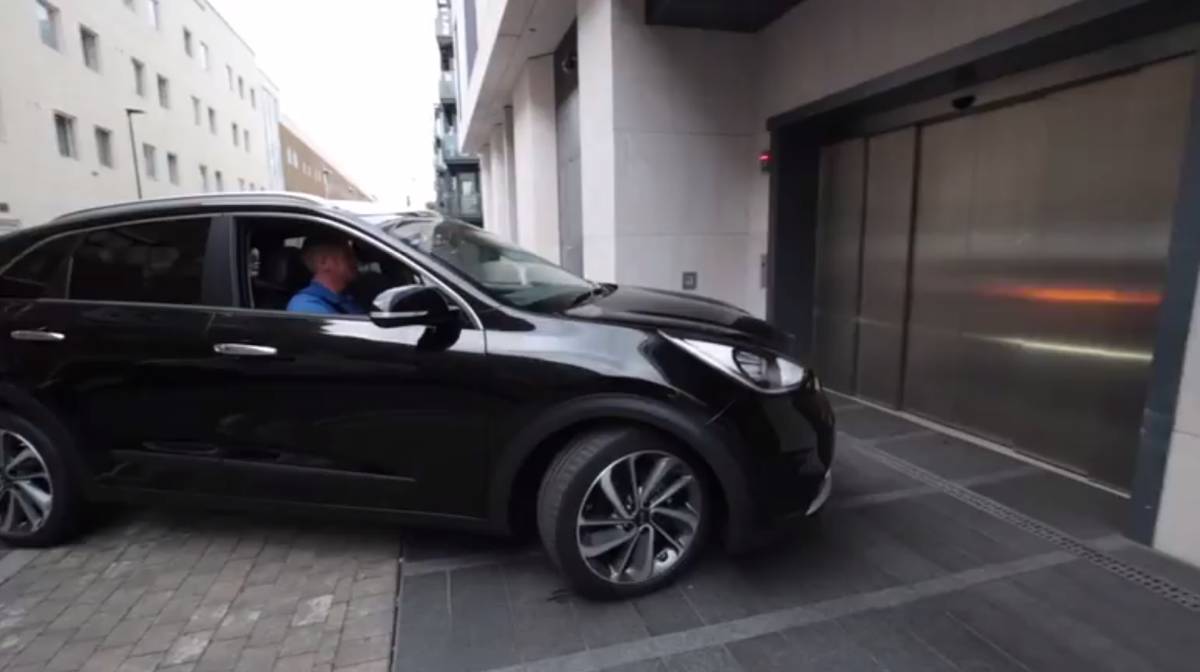

Name: TRAFFICO® Car Lift
Brand: Lödige Industries
SKU: a5gtnrVePxDFf7Dsk9ERmP

Verified by manufacturer 3 months ago

Color

Contact manufacturer for any colour.

Other

Finish

Galvanized

Material

Steel

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_65_80_47_95 Vertical lifting platformsPrimary

CAWS

X12/110 Vertical lifting platform systems

Standard

To DIN EN 81-20:2014.

To Lift Directive RL 2014/33/EC.

Rated load (minimum)

Axle load: Maximum 1750 kg, forklift operation prohibited.

3500 kg.

Maximum 5730 kg.

Drive type

Hydraulic power unit with pump-motor suboil unit.

See Motor Position below for machine room/ cabinet options.

Carriage type

Fully enclosed.

Carrier

Frame material

Manufacturer's standard.

Frame finish

Manufacturer's standard.

Frame colour

Manufacturer's standard.

Infill material

Sheet steel.

Infill finish

Sendzimir-galvanized steel.

Painted.

Stainless steel.

Insert colour

Silver.

Standard for Sendzimir-galvanized and stainless steel finishes.

Colour.

Painted finish only; insert requirements.

Doors

Arrangement

Front opening (single entrance).

Through-loading/ front-and-rear opening (two entrances).

Type

Door height is 2100 mm as standard; for options, consult manufacturer.

Six-part, centrally opening telescopic sliding doors.

Standard.

Automatic louvre doors, centrally opening.

Two cabin/ two landing doors.

Slat-surface aluminum, powder-coated RAL 9006.

Clear opening width (minimum)

Insert requirements, maximum door width: 2400–3000 mm.

Maximum cabin width varies dependent on maximum door width and lifting height required; consult manufacturer's literature for details.

Fire classification

Manufacturer's standard.

EW30.

Only available with standard telescopic doors.

EW60.

Only available with standard telescopic doors.

Frame material

Low-carbon steel.

Frame finish

Painted.

Infill finish

Manufacturer's standard.

Painted.

Powder-coated.

Infill colour

Manufacturer's standard.

Manufacturer's standard finish only.

RAL.

Insert requirements from the Classic RAL colour table.

Available for painted or powder-coated finishes only.

Carrier floor

Dimensions

Width (minimum)

Consult manufacturer's literature and insert requirements.

2500–3000 mm ;maximum cabin width allowable varies dependent on maximum door width and lifting height required.

Depth (minimum)

5500–7000 mm.; consult manufacturer's literature and insert requirements.

Cabin depth is defined as the distance between the entrance panels.

Useable depth depends on door arrangement:

Through-loading/ front-to-back: Cabin depth minus 100 mm.
Front-opening: Cabin depth minus 130 mm.

Material

On request, a platform division can be made in longitudinal direction. This is particularly recommended in difficult construction site situations, with regard to space conditions, in order to ensure the insertion of the platform into the lift shaft.

Not available/required for extruded aluminum profiles.

Extruded aluminium profiles.

Particularly suitable for difficult construction site situations with regard to space conditions, as this variant is only installed in the lift shaft on site.

Smooth sheet metal, primed.

RAL 7032.

Smooth sheet metal, primed, platform division.

RAL 7032.

Aluminium bulb plate.

Aluminium bulb plate, platform division.

V2A stainless steel chequer plate.

V2A stainless steel chequer plate, platform division.

Two-component anti-slip coating.

Epoxy resin-based, solvent-free and non-slip coating, is sprinkled with quartz sand with a grain size of 0.3–0.8 mm.

Two-component anti-slip coating, platform division.

Colour

As Material.

Electrical supply

Manufacturer's standard.

Control device type

Operation via smartphone app is available; consult manufacturer for details.

Manufacturer's standard.

Handheld transmitter (radio remote control);
Pull switch:

With console for ceiling mounting.
2 m-long pull cord. Consult manufacturer for full details.

Accessories

Additional features not listed, e.g. oil coolers or tank heaters, are dependent on performance requirements and can be discussed with the manufacturer.

None.

Deflector rails, hardwood.

Insert requirements.

Can be arranged on the car side walls in a single row or two-row arrangement. This prevents damage to the lift cabin and vehicle.

Deflector rails, plastic.

Insert requirements.

Can be arranged on the car side walls in a single row or two-row arrangement. This prevents damage to the lift cabin and vehicle.

Threshold heating tape.

Self-limiting heating tape for landing door thresholds located outdoors for safe operation of the lift system in frosty conditions.

Silence package I.

For the reduction of structure-borne noise on the hydraulic drive system. Consult manufacturer for details.

Silence package II.

For the reduction of structure-borne noise on the hydraulic drive system. Consult manufacturer for details.

Silence package III.

Whisper rollers for telescopic sliding door. Consult manufacturer for details.

Key safe.

Complete key safe with three keys, security card: Series 600

834 EFEFBF and wall anchor.

Outer dimensions: 145 x 46 mm; internal dimensions: 78 x 36 mm.

To be installed on site independent of the lift.

Entry configuration

Insert requirements, 2–8 stops.

Include details of accesses per floor for through-loading/ front-and-rear opening.

Cabin

Components:

Signal lights (IP65)
Operating panel including positioning indicator.
Call button panel.
LED ceiling light panel.
Lift doors (detailed elsewhere).
Light barriers for car detection.
Light grid in entry area.
Radar entrance monitoring system.
Cabin floor (detailed elsewhere).
Cabin ceiling/cabin walls.

For full details, consult manufacturer.

For deflector strips, see Accessories.

Height: 2100–2300 mm; insert requirements.

Lift height

Up to 25 000 mm; insert requirements. For cabin heights of 2100 mm and superimposed accesses, the minimum floor distance is 2670 mm.

Note that allowable cabin, shaft and door widths vary with overall lifting height. Consult manufacturer's literature for details.

Lifting height is the distance between the finished floor level (FFL) of the highest and lowest levels. Pit depth and headroom at the highest level are additional height factors.

up to 25,000 mm

Headroom

Note that the headroom depends on a number of factors, including the planned pit, and can increase in size if a silence package is used (see accessories).

Manufacturer's standard.

Consult manufacturer's literature for details.

Bespoke.

Consult manufacturer's literature for options and insert requirements.

Shaft

Manufacturer's standard.

Width/ depth = cabin width/ depth + 800 mm.

Head height minimum 3300 mm (dependent on headroom requirements.

Bespoke.

Insert requirements.

Note that minimum shaft width varies with overall lifting height.
Minimum shaft depth is dependent on required cabin depth.

Consult manufacturer's literature for details.

MotorPosition

For all options, insert location requirements.

All configurations other than option 5 require the machinery to be located alongside the lift shaft, along the length. Consult manufacturer for full details.

Minimum height: 2100 mm.

Machine room (option 1).

Minimum width: 2000 mm.

Minimum depth: 2000 mm.

Machine room (option 2).

Minimum width: 1400 mm.

Minimum depth: 3000 mm.

Machine room (option 3).

Minimum width: 450 mm.

Minimum depth: 2560 mm.

Pit opening

Depth: 1250 mm.

As standard. Depth reduction possible; consult manufacturer.

Speed

0.2–0.6 m/s.

Insulation

The following areas can be insulated:

Shaft side walls;
Front-facing shaft walls (except for in the area of the door);
Shaft ceiling (headroom must always be extended by the thickness of the insulation.

Consult manufacturer for full details including allowable insulation thicknesses.

Not required.

Option 1: non-continuous insulation in door area.

Option 2: Continuous insulation.

Contains Red List materials

Country of material origin

Germany

Country of product manufacture

Germany
