Topflow Screed A
Verified by manufacturer 15 days ago
Screed A Steeldeck
Screed A Steeldeck
BBA Agrément Certificate
Certificate type
Free flowing, anhydrite self compacting floor screed.
Application
- Suitable for a wide range of applications. Its high thermal conductivity and minimum thickness make it suitable for use with underfloor heating (fully encapsulates heating pipes/ cables).
- Free from protein and it doesn’t harbour potentially harmful bacteria making it suitable for hospitals and care homes.
- Not suitable as a wearing surface itself, or for external or permanently wet areas such as swimming pool surrounds and cannot be laid to falls.
Description
Topflow Screed A is manufactured with a synthetic anhydrite binder in place of cement and is pump applied due to its fluid consistency. It is easier to install, covering areas of up to 2000 m² per day.
Find the right Topflow Screed A low carbon liquid screed for your project:
Topflow Screed A FD E2C : Faster drying floor screed that is earlier to cover
Topflow Screed A Thermio + : Liquid screed for underfloor heating with guaranteed thermal conductivity backed by BBA
Topflow Screed A XTR : Screed for UFH and higher floor loadings
Topflow Screed A Finio : Thin section lightweight liquid screed
Topflow Screed A Excelio : Ultra thin floor screed
Features and benefits:
- Manufactured to BS EN 13813:2002, with a recycled source of gypsum (calcium sulfate) rather than cement. It has a free-flowing fluid consistency and is applied by pump.
- Floors are suitable for foot traffic within 24–48 hours, while drying takes 40 days, or sooner with force drying (available after only seven days).
- Lower carbon footprint than traditional cementitious screeds.
- Suitable for use with low energy underfloor heating.
- Any type of floor finish can be applied to the screed.
- Maintenance of fluidity for two hours.
- The screed is produced using Gyvlon binder which is manufactured from an industrial by-product (average 36% recycled content).
- Water demand: 13–18% b.w.
- Flow range: 230–280 mm.
- Volite Organic Compound (VOC) free and 100% recyclable.
Screed thickness:
- Bonded: Minimum (Topflow Screed A Excelio) 8 mm (over maximum 30% of total floor area).
- Unbonded: Minimum: 20 mm (Topflow Screed A Finio & Excelio)
- Floating over thermal/ sound insulation: Minimum: 30 mm -domestic (Insulation min 140kPa) 35mm commercial (Topflow Screed A Finio & Excelio)
- Floating over sound insulation - rubber acoustic layer: Minimum: 25 mm (Topflow Screed A Finio & Excelio)
- Cover over conduits/ heating pipes: Nominal: 25 mm, Maximum: 80 mm.
(For full details see table in Topflow Screed A Range Guide on tarmac.com)
General information
Color | White Guidance for specification option: Off-white. |
Finish | Smooth |
Material | Calcium sulphate Guidance for specification option: Gypsum with anhydrite binder. |
Shape | Formless Manufacturer guidanceFormless. |
Uniclass | |
CAWS | M13/120 Proprietary self smoothing levelling screeds |
Specification data - Ready-mixed self-smoothing calcium sulfate screeds
Form | Ready mixed. |
Mix | Gypsum (calcium sulfate) with anhydrite binder. |
Appearance | Off-white fluid mortar. |
Water | Demand, 13–18% b.w. |
pH | >10. |
Density | 2200 kg/m³ (wet), 2000 kg/m³ (dry). |
Compressive strength - 28 days | To BS EN 13813, C25. |
Flexural strength | To BS EN 13813, F4. |
Thermal expansion | 0.012 mm/mK (minimum). |
Drying time | 40 days. Guidance for specification option: Or sooner with force drying (available after only seven days). |
Surface finish | To BS 8204, SR2. |
Fire resistance | To BS 476-4, Non-combustible. |
Sustainability data
Material | Calcium sulphate Guidance for specification option: Gypsum with anhydrite binder. |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 60.29 kg CO₂ eq/m³ |
Recyclability | 98% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 36 % |
Third party certifications

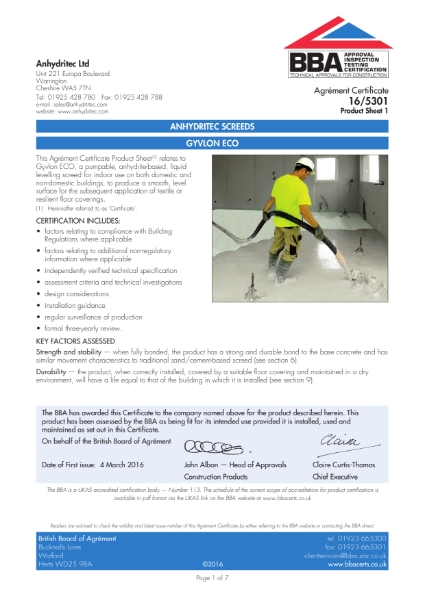

BBA Agrément Certificate
BBA certificate 16-5301 Anhydrite Screeds

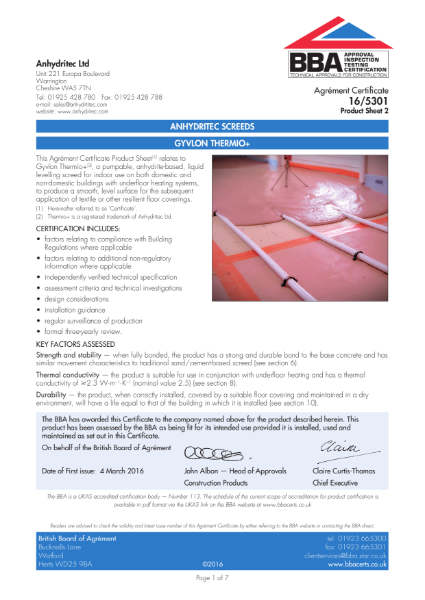

BBA Agrément Certificate
BBA certificate 16-5301 Thermio+ Anhydrite Screeds
