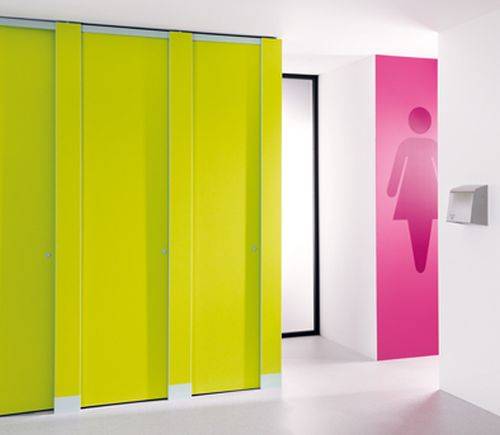

Titan Cubicle

General:

• Floor clearance: At panels: 0 mm; at door: 10 mm.

• Ceiling clearance: 10 mm.

• Pedestal adjustment: Site cutting of pilaster.

Headrail:

High strength extruded aluminium 'P' angle complete with colour-matched PVC cover insert.

Fixings:

• Partition to wall/ pilaster: Continuous channel.

• Pilaster to floor: Aluminium shoe.

• Partition to floor: Aluminium skirting channel with height and appearance matching pilaster shoe.

Ironmongery:

• Hinges: Aluminium, anti-tamper, safety hinge.

• Bolt: Lever operated bolt with circular face plate and emergency release facility.

Product reference:

– Titan HPL:

• Board/ panel/ door: 660 kg/m³ furniture grade, moisture resistant chipboard, faced each side with high pressure laminate (HPL).

• Thickness: 18 mm.

• Edge treatment: 3 mm thick matching or contrasting PVC with exposed corners radiused.

• Height (maximum): To 1500 mm deep: 3000 mm. 1501–2000 mm deep: 2580 mm.

• Depth (maximum): 2000 mm from face of back wall or rear ducting.

– Titan MFC:

• Board/ panel: Melamine-faced, 660 kg/m³, high performance, moisture resistant chipboard.

• Thickness: 18 mm.

• Edge treatment: 3 mm thick matching or contrasting PVC with exposed corners radiused.

• Height (maximum): 2750 mm.

• Depth (maximum): 2000 mm from face of back wall or rear ducting.

– Titan SGL:

• Board/ panel: High density, solid grade laminate (SGL) with decorative face each side.

• Thickness: 13 mm.

• Edge treatment: All edges radiused and polished (black).

• Height (maximum): 2560 mm from FFL to top of headrail.

• Depth (maximum): 2000 mm from face of back wall or rear ducting.

Finishes:

• Panels/ doors: 35 colours. Consult Venesta Washroom Systems for colour range and samples.

• Frame and fittings: Powder coated dark or light grey.
