Timber Effect Aluminium Cladding Board - Aluminium Cladding System

Verified by manufacturer 10 days ago

VTKEC200LW - 200 mm

Vincent Timber Ltd Variant:
Third party certifications:
  • CWCT Certificate

    CWCT Certificate

    Certificate type

Non-combustible aluminium cladding systems.

Jump to:
+44 (0)121 772 5511 Website

Application

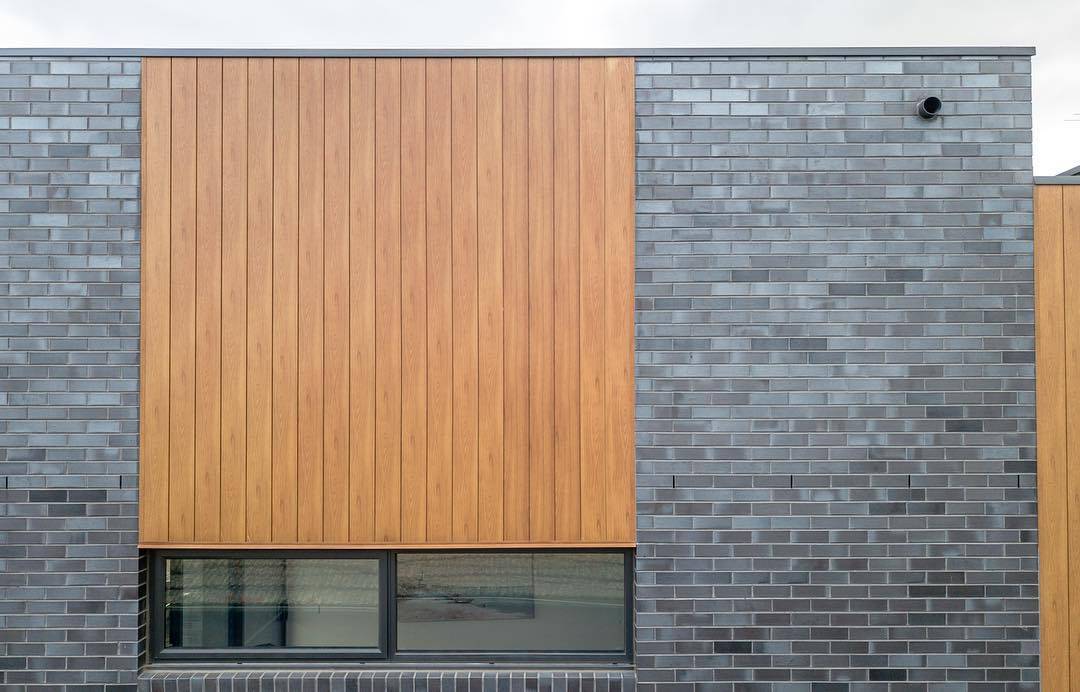

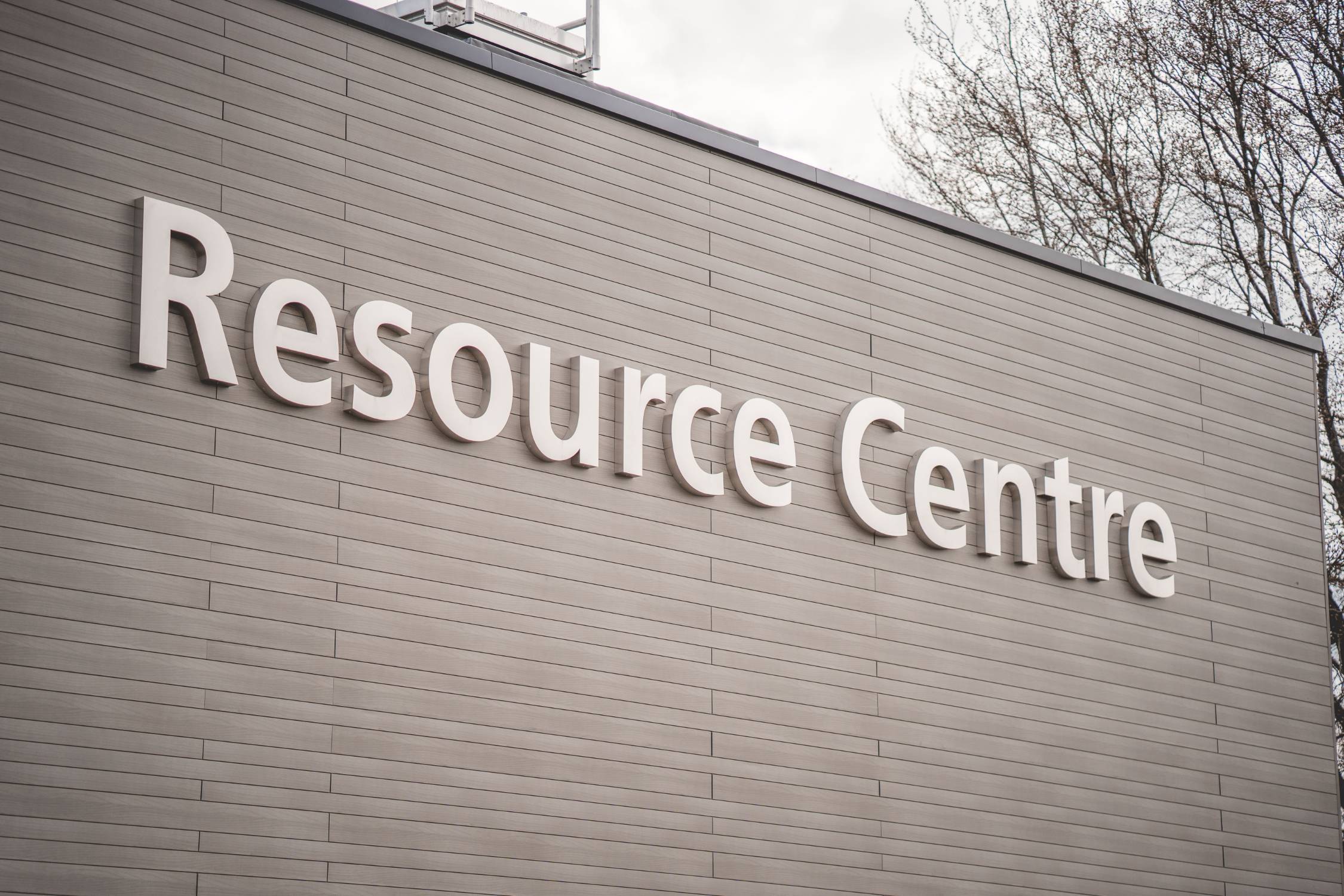

Suitable for commercial and residential building exteriors. Can be used in applications such as:

  • Rainscreen cladding.
  • Soffits.
  • Commercial cladding.
  • Domestic cladding.
  • Balcony soffit cladding.

Description

Vincent Timber are offering Knotwood's interlocking rainscreen cladding system, designed with timber profiles in mind this range of three cladding boards and trims provided the benefits of aluminium with the design aesthetic of timber.


Architects and planners design and specify aluminium cladding systems to provide robust protection to building exteriors, while enhancing the aesthetic appeal.


The versatility, durability and sustainability of aluminium cladding systems have made them a popular material selection for commercial and residential building exteriors. Knotwood aluminium cladding systems are stylish wood effect design applications that make contemporary buildings look fresh and inviting. The Knotwood aluminium cladding system is innovative, combining distinctive designs with easy installation.


The special clip fixing system provides space for the expansion and contraction of the cladding board, which gives specifiers the confidence that it won’t twist or warp, regardless of the weather conditions.


The interlocking board system includes extra components to ensure that the cladding can be easily maneuvered around windows, joints and corners.


Features and benefits:

  • Made from aluminium which is non-combustible and meets all relevant international fire safety standards.
  • Versatile.
  • Wide choice of finishes.
  • Lightweight.
  • Easy to transport, handle and install which makes the work of contractors more manageable.
  • Low maintenance, requiring very occasional cleaning rather than repainting at regular intervals.
  • VOC-free (volatile organic compounds) coatings and lead free finishes.
  • 100% recyclable when removed.
  • All systems are fire rated to A2-s1-d0 and classed as non combustible.

General information

Color

Brown

Grey

Silver

Yellow

White

Show more

Finish

Woodgrain

Guidance for specification option:

Knotwood's range of 40 wood grain finishes.

Powder-coated

Guidance for specification option:

RAL colours or specified options available.

Matt

Other

Guidance for specification option:

Wide choice of design finishes available, consult manufacturer for options.

Material

Aluminium

Shape

Other

Length

5600 mm

Guidance for specification option:

Standard.

Bespoke

Guidance for specification option:

Bespoke options up to 6500 mm are available.

Width

100 mm

150 mm

200 mm

Height

16 mm

Warranty description

15 year

Guidance for specification option:

Knotwood products are supported by an up to 15 year performance warranty on the powder coated and sublimated wood effects.


Powder coated options from 10–30 years warranty. Please get in touch to discuss the exact requirements.

Uniclass

Pr_25_71_14_02 Aluminium cassette panelsPrimary

CAWS

H20/10 Sheet cladding

H20/150 Sheet cladding (attached to metal support systems)

H92/120 Rainscreen cladding

Specification data - Aluminium cassette panels

Alloy

-

Grade

6063.

Temper

T6.

Sheet thickness

1.6 mm.

Panel size

200 mm.

Finish

-

Material

Powder-coated.

Wood effect.

Anodized.

Colour

Anthracite Ash.

Guidance for specification option:

Woodgrain colours.

Kwila.

Guidance for specification option:

Woodgrain colours.

Light Oak.

Guidance for specification option:

Woodgrain colours.

Grey Ash.

Guidance for specification option:

Woodgrain colours.

QLD (Queensland) Walnut.

Guidance for specification option:

Woodgrain colours.

Natural Oak.

Guidance for specification option:

Woodgrain colours.

Silver.

Guidance for specification option:

Textura coating.

Primrose.

Guidance for specification option:

Textura coating.

Dune.

Guidance for specification option:

Textura coating.

Woodland Grey.

Guidance for specification option:

Textura coating.

Deep Ocean.

Guidance for specification option:

Textura coating.

White.

Guidance for specification option:

Textura coating.

Black.

Guidance for specification option:

Textura coating.

Hampton Cedar.

Shou Sugi Ban.

Hinoki.

Nordic Oak.

Spruce.

Norwegian Beech.

Sycamore.

French Walnut.

White Ash.

Pacific Teak.

Red wood.

Teak Brown.

Black Cedar.

Driftwood.

Merbau.

Iroko.

Royal Oak.

Chestnut.

Spotted Gum.

Blackbutt.

Bush cherry.

Western Red Cedar.

English Chestnut.

Black Wenge.

Other.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Reaction to fire

-

Panel external face

To BS EN 13501-1, Class A2-s1, d0.

Panel internal face

To BS EN 13501-1, Class A2-s1, d0.

Clip

Not required.

Cladding Clip 45 mm.

Guidance for specification option:

KAOCC45.

Trims

Not required.

70 mm finishing base (F).

Guidance for specification option:

KECFBF.

65 mm finishing top large (M).

Guidance for specification option:

KECFTTLM.

30 mm finishing top small (M).

Guidance for specification option:

KECFTTSM.

Corner trims

Not required.

45 mm internal/external corner (F).

Guidance for specification option:

KECIECF.

52 mm internal/external corner (M).

135° corner (F).

Guidance for specification option:

KECIECLF135.

135° corner (M).

Guidance for specification option:

KECIECLM135.

StarterType

Not required.

Starter trim.

Guidance for specification option:

KEDSTR-SQ.

Tophat channel

Not required.

Tophat 90 x 25 mm.

Guidance for specification option:

KECTH9025-6500.

Joints

Not required.

Joiner base 100 mm (F).

Guidance for specification option:

KECJBF.

Joiner top 50 mm (M).

Guidance for specification option:

KECTJM.

Manufacturer guidance

Joint trims.

Length

5600 mm.

Guidance for specification option:

Standard.

Bespoke.

Guidance for specification option:

Bespoke options up to 6500 mm are available. Consult manufacturer and insert requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

Australia

Country of product manufacture

Australia

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Standard option contains 0-10% recycled content, options are available for 100% recycled content and low carbon options available.

Third party certifications

CWCT Certificate

CWCT Certificate

CWCT structural testing
