Tile Batten Barrier
Verified by manufacturer 8 days ago
A tile batten barrier.
Application
Used within the PARTY WALL HEAD CAP system.
Description
A tile batten barrier which is manufactured from stone mineral wool of differing thicknesses enclosed in a coloured polythene.

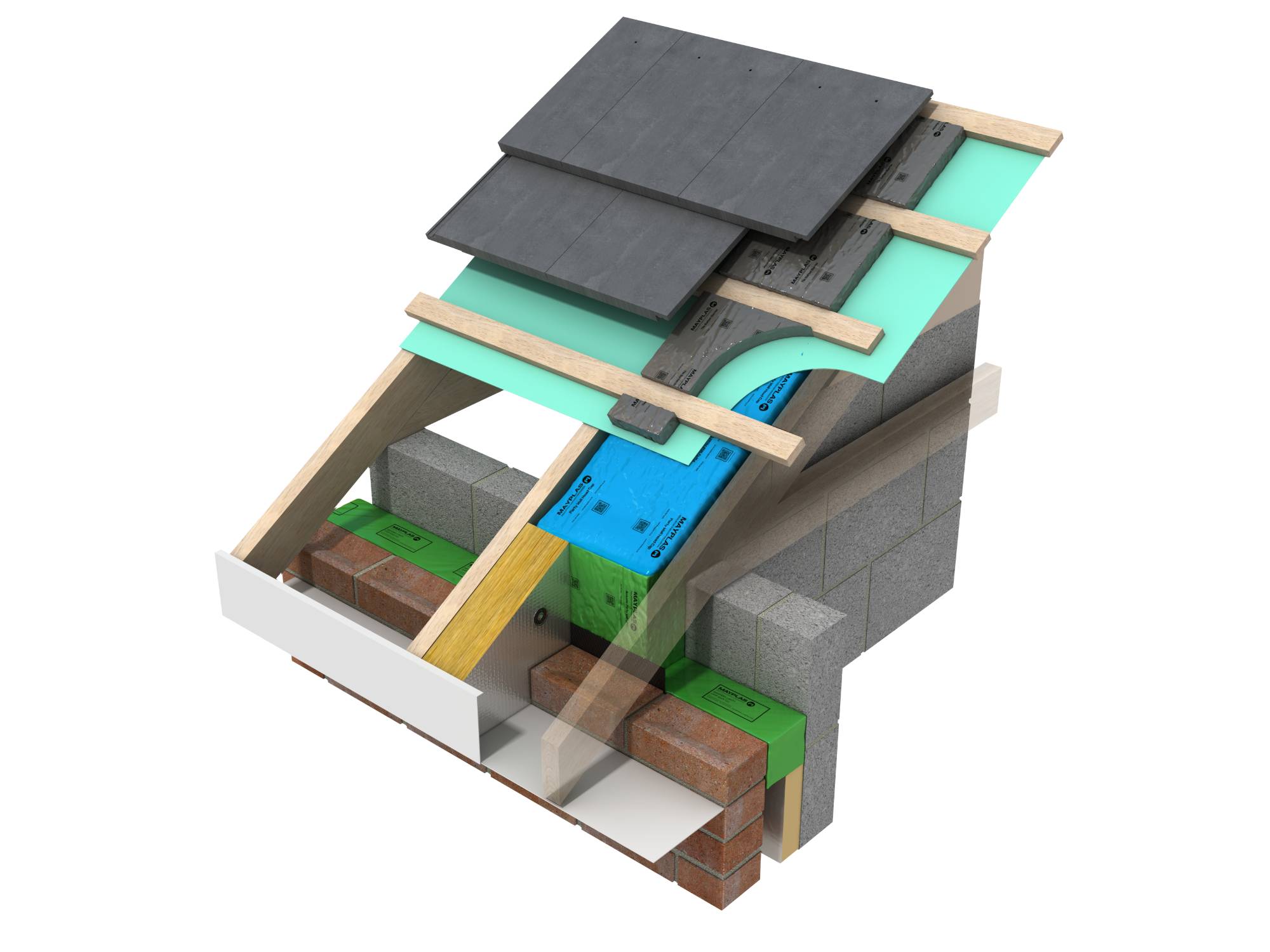

The Mayplas PARTY WALL HEAD System is intended to provide fire protection compartmentation at the party wall junction above a twin spandrel panel for both masonry and timber frame applications.
The Party Wall Head System comprises of two components:
- The Party Wall Head Cap which is fitted over the entire width of the spandrel panels but under the breather membrane.
- The Tile Batten Barrier which is fitted over the Party Wall Head Cap, into which the counter battens are fitted.
To ensure the reported and tested fire resistance performance both components must be installed as per Mayplas’ instruction.
Compression: 5-10 mm (minimum). Thermal Resistance: Dependant upon the overall product thickness. Please consult manufacturer for further details.
General information
Color | Grey |
Material | Mineral wool Polythene |
Shape | Rectangle |
Length | 1200 mm |
Width | 200 mm 225 mm 250 mm 275 mm 300 mm |
Height | 30 mm 40 mm 80 mm Manufacturer guidanceThickness. |
Uniclass | |
CAWS | P12/40 Mineral wool rigid batts P12/360 Mineral wool rigid batts |
Specification data - Mineral wool fire-stopping
Material | |
Third-party certification | Kiwa Fire Safety Compliance report PAR/25302/01. |
Type | Rigid. |
Facing | Grey polythene. |
Fire performance | To BS 476-20 and -22: 60 minutes fire integrity and 60 minutes insulation. |
Thickness | 30 mm. 40 mm. 80 mm. Guidance for specification option: Thicknesses up to 80 mm (can be used either as a single layer or two layers to desired thickness) based on the two thicknesses above. |
Width | 200 mm. 225 mm. 250 mm. 275 mm. 300 mm. |
ThermalConductivity | Stone Mineral Wool 0.035 (W/mK). |
Sustainability data
Material | Mineral wool Polythene |
Literature
Literature type
Mayplas Party Wall Head System - Installation Guide
Mayplas Party Wall Head System Technical Data Sheet Issue 1 12 2024
