Description

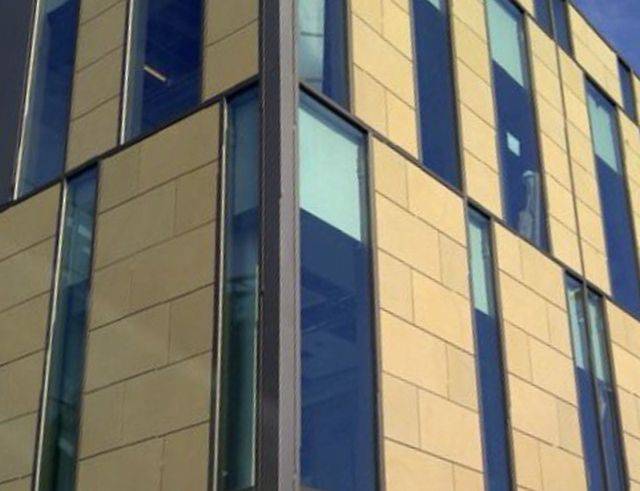

A light weight composite panel comprising of a 7 mm natural stone veneer bonded to a 20 mm thick aluminium honeycomb cassette panel. The aluminium cassette panel is fully enclosed with a purpose made aluminium channel designed to incorporate the TI-G TI Tracking Generic rail system.

It is the lightest product in the range and is designed to utilize the unique range of fixing systems that reduce costs and eliminate the need for a specialist workforce.

Features and benefits:

  • Tested by Technology Centre Vinci UK Ltd. to CWCT guidelines to Standardized Building Envelopes: 2005.
  • Lightweight reinforced natural stone.
  • Limestone and sandstone.
  • Concealed fixing system.
  • Perfect for unitization in large panel formats.
  • Contemporary application of a traditional material.
  • Quickest system to install resulting in reduced site programmes.

General information
Specification data
Product Reference

TI Aerolite® Ultralite

Panels -
Size

A range of panel sizes available, consult manufacturer and insert requirements.

Orientation

Landscape (horizontal)

Portrait (vertical)

Layout

Random stretcher bond

Stack bond

Stretcher bond

Joints

Open

Closed

Horizontal joint

8 mm

10 mm

Vertical joint

6 mm

8 mm

10 mm

Material/ Colour

See options below.

Carrier Rail System

TI-G TI Tracking Generic Rail System, mill finish

TI-G TI Tracking Generic Rail System, powder-coated black

Standard product features

Finish:

Honed and waterproofed.

System weight:

25 kg/m².

Wind safety:

±3600 pascals (Pa).

Cyclic wind loading:

±600–2400 pascals (Pa) over a 24 hour period.

Impact resistance (BS 8200):

Category B.

Product Options

Size:

  • Limestone: Panel sizes up to 1500 x 900 mm (in 5 mm increments).
  • Sandstone: Panel sizes up to 1200 x 800 mm (in 5 mm increments).

Material/ colour:

- Limestone:

  • CSV(L)PO.
  • CSV(L)MC.
  • CSV(L)CB.
  • CSV(L)JB.

- Sandstone:

  • CSV(S)YW.
  • CSV(S)RS.
  • CSV(S)BS-A.

Carrier Rail System:

- Standard:

  • TI-G TI Tracking Generic Rail System consisting of mill finish aluminium Mid Rail and Start/ End Rail, including EPDM gasket and panel dividers for stack/ stretcher bonded layout.
  • TI-G TI Tracking Generic Rail System consisting of powder-coated black aluminium Mid Rail and Start/ End Rail, including EPDM gasket and panel dividers for stack/ stretcher bonded layout.

Panel sizes:

To allow for greater design flexibility, a number of panel sizes at 3% of cladding m² area as standard are allowed for.
