Lightweight natural stone veneer rainscreen system.
A 5 mm thick natural stone veneer, reinforced with 15 mm natural granite backing. The granite backing is profiled with a 10 or 12 x 3 mm Kerf groove to facilitate easy installation onto two horizontal carrier rails (top and bottom). Other fixing systems are available and are all designed to allow easy installation to reduce costs and eliminate the need for a specialist workforce.
Features and benefits:
H92/120 Rainscreen cladding
TI Aerolite® Stonework

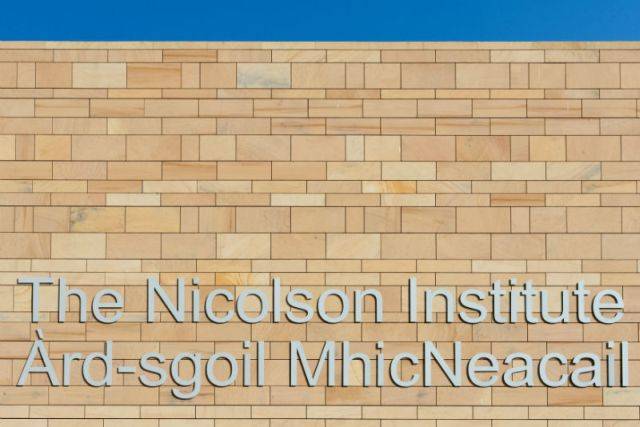

Random stretcher bond
See options below.
|Carrier Rail System|
TI-A TI Undercut Anchor System
Bespoke and soffit application.
TI-G TI Tracking Generic Rail System, mill finish
TI-G TI Tracking Generic Rail System, powder-coated black
|Standard product features|
Honed and waterproofed, consult manufacturer for other available finishes.
±3600 pascals (Pa).
Cyclic wind loading:
±600–2400 pascals (Pa) over a 24 hour period.
Impact resistance (BS 8200):
Carrier Rail System:
- Bespoke and Soffit Application:
TI-A TI Undercut Anchor System consisting of BWM horizontal profile rail, top adjustable clasps, bottom rigid clasps and 10 mm deep M6 undercut anchor.
External corners, window, curtain walling head returns, soffits and window jambs dressed and filled, available with preformed returns from 40 mm up to 200 mm maximum; all preformed returns in excess of 60 mm will be mechanically fixed by undercut anchor attachment and patented load bearing bracket assembly (contact manufacturer for details).
Leave selected stone units oversized in length to accommodate deviations within building structure, cut to precise dimensions taken on site. Consult manufacturer and insert requirements.
To allow for greater design flexibility, a number of panel sizes at 3% of cladding m² area as standard are allowed for.
