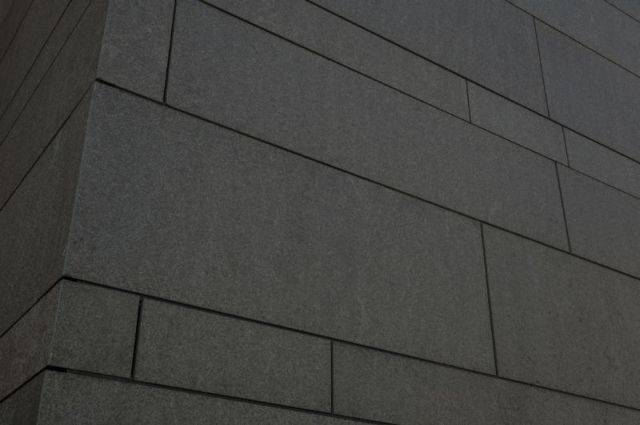

TI Aerolite® Granite
Lightweight natural granite rainscreen system.
A 17 mm natural granite panel reinforced with an epoxy resin impregnation and a glass fibre reinforcement backing. The 17 mm thick natural granite panel is profiled with a 10 or 12 x 3 mm Kerf groove to facilitate easy installation onto two horizontal carrier rails (top and bottom). Other fixing systems are available and are all designed to allow easy installation to reduce costs and eliminate the need for a specialist workforce.
The granite used has the same qualities as conventional thickness granite cladding.
Features and benefits:
- Tested by Technology Centre Vinci UK Ltd. to CWCT guidelines to Standardized Building Envelopes: 2005.
- Tested at Warrington Fire Group to BS 476-6:1989 and BS 476-7:1997.
- Lightweight reinforced granite.
- Concealed fixing system.
- Contemporary application of a traditional material.
- Quickest system to install resulting in reduced site programmes.
Finish | Flamed Honed Polished Sandblasted Water-jet |
Uniclass 2015 | |
CAWS | H92/120 Rainscreen cladding |
Product Reference | TI Aerolite® Granite |
Panels | - |
Orientation | Landscape (horizontal)Portrait (vertical) |
Layout | Random stretcher bondStack bondStretcher bond |
Joints | ClosedOpen |
Horizontal joint | 8 mm10 mm |
Vertical joint | 6 mm8 mm10 mm |
Finish | FlamedHonedPolishedSandblastedWater-jet |
Edge | PolishedSawn |
Carrier Rail System | TI-A TI Undercut Anchor SystemBespoke and soffit application. TI-G TI Tracking Generic Rail System, mill finishStandard. TI-G TI Tracking Generic Rail System, powder-coated blackStandard. |
Colour | See 'Options' below. |
Preformed units | - |
Type | Double CrankSingle Crank |
Standard product features | System weight: 46 kg/m². Wind safety: ±3600 pascals (Pa). Cyclic wind loading: ±600–2400 pascals (Pa) over a 24 hour period. Impact resistance (BS 8200): Category B. |
Product Options | Colour: Various options available, consult manufacturer for details.
Carrier Rail System: - Standard:
- Bespoke and Soffit Application: TI-A TI Undercut Anchor System consisting of BWM horizontal profile rail, top adjustable clasps, bottom rigid clasps and 10 mm deep M6 undercut anchor. Preformed units: External corners, window, curtain walling head returns, soffits and window jambs dressed and filled, available with preformed returns from 40 mm up to 200 mm maximum; all preformed returns in excess of 60 mm will be mechanically fixed by undercut anchor attachment and patented load bearing bracket assembly (contact manufacturer for details). Oversized stones: Leave selected stone units oversized in length to accommodate deviations within building structure, cut to precise dimensions taken on site. Consult manufacturer and insert requirements. Panel sizes: To allow for greater design flexibility, a number of panel sizes at 3% of cladding m² area as standard are allowed for. |
