THM: Truss Hanger Mono

Verified by manufacturer 1 month ago

THM230/38

Simpson Strong-Tie Variant:
Third party certifications:
  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

  • DoP

    DoP

    Certificate type

Steel truss hanger.

Jump to:
+44 (0)1827 255600 Website

Application

For supporting mono trusses from timber members.

Description

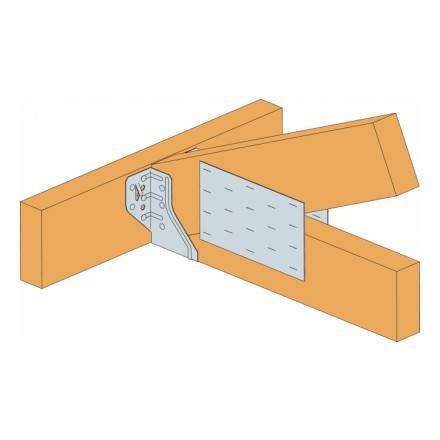

The THM (Truss Hanger Mono) is a pre-galvanized mild steel joist hanger for supporting mono trusses from timber members. The THM hanger offers two installation options:

  • Square twist nails only.
  • Square twist nails and double shear nailing.


Features and benefits:

  • Features speed prongs for ease of installation.
  • CE marked.

General information

Color

Silver

Finish

Galvanized

Material

Carbon steel

Shape

Other

Width

38 mm

44 mm

47 mm

50 mm

Uniclass

Pr_20_29_31_44 Joist hangersPrimary

CAWS

G20/65 Joist hangers

G20/791 Proprietary joist hangers

Specification data - Joist hangers

Third party certification

ETA.

Format

Face fixing.

Material

Carbon steel.

Finish

Galvanized.

Sizes

77 x 38 x 96 mm.

Third party certifications

European Technical Approval (ETA)

European Technical Approval (ETA)

European Technical Assessment ETA-17/0554 of 06/07/2017

DoP

DoP

Declaration of Performance DoP-e17/0554

Literature

THM: Truss Hanger Mono Technical Data Sheet

THM: Truss Hanger Mono Technical Data Sheet
