THM: Truss Hanger Mono
Verified by manufacturer 7 months ago
THM230/38
THM230/38
European Technical Approval (ETA)
Certificate type
DoP
Certificate type
Steel truss hanger.
Application

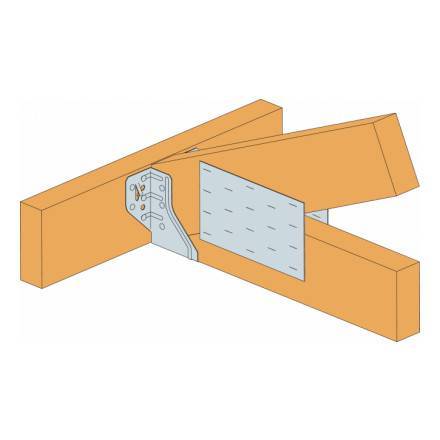

For supporting mono trusses from timber members.
Description

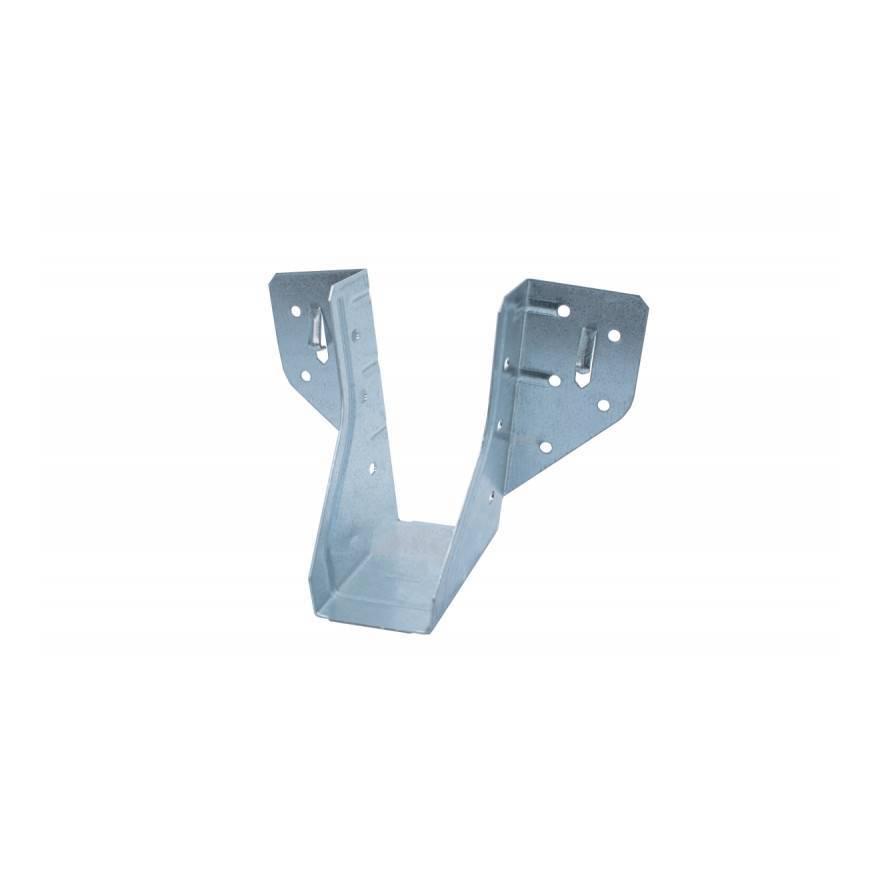

The THM (Truss Hanger Mono) is a pre-galvanized mild steel joist hanger for supporting mono trusses from timber members. The THM hanger offers two installation options:
- Square twist nails only.
- Square twist nails and double shear nailing.
Features and benefits:
- Features speed prongs for ease of installation.
- CE marked.
General information
Color | Silver |
Finish | Galvanized |
Material | Carbon steel |
Shape | Other |
Width | 38 mm 44 mm 47 mm 50 mm |
Uniclass | |
CAWS | G20/65 Joist hangers G20/791 Proprietary joist hangers |
Specification data - Joist hangers
Third party certification | ETA. |
Format | Face fixing. |
Material | Carbon steel. |
Finish | Galvanized. |
Sizes | 77 x 38 x 96 mm. |
Third party certifications
European Technical Approval (ETA)
European Technical Assessment ETA-17/0554 of 06/07/2017
DoP
Declaration of Performance DoP-e17/0554
Literature
THM: Truss Hanger Mono Technical Data Sheet
