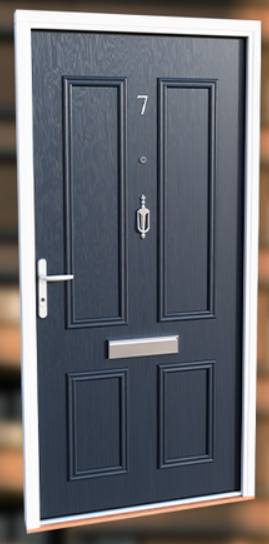

The Safer Homes Range™ SHR EI30 Sa | External Flat Entrance Doorset
Verified by manufacturer 4 days ago
Warringtonfire
Certificate type
External Flat Entrance Doorset with EI30 Sa Classification.
Application
Suitable for external applications.
Description
The Safer Homes External Flat Entrance Doorsets offer high performance, trusted compliance and a wide range of aesthetic options. As safety critical products regulated by the Office of Products Safety and Standards, these complete, factory finished doorsets are tailored to size and specification requirements to ensure consistent quality and reliable performance.
Features and benefits:
- EI30 Sa classification
- Extensively tested to EN 1634-1 for fire resistance and EN 1634-3 for smoke control in 19 full-scale Gerda Security-owned primary tests (not cascaded), to offer a wide range of solutions
- Building regulation compliant for fire resistance, smoke control, acoustics, thermal transmittance, weathering and enhanced security
- Versatile for the specifier - doorsets tailored to size; high quality factory-finish and pre-hung
- Modular frame construction for all configurations means easy to fit on site
- G-Smart™ - in-built digital traceability for survey applications through to manufacture
- Innovative glazing options which offer elegant aesthetics, privacy and security
- A range of enhanced security solutions offered with locking systems
- Threshold solutions are designed for longevity and cater for; ease of access, demanding weather locations, floor level variation and assisting with energy conservation
- Timber engineered construction offers high quality with an exceptional strength-to-weight ratio and rot resistance
- Plywood prevents warpage, bending and sagging
- Available in a wide range of patterned and solid glazing styles with the option of raised mouldings
- Finished in a tri-coat water-based paint system with low VOCs, available in any RAL colour
- Option of laminate finishes
- UKCA marked to BS EN 1451-1 and EN 16034
- Tested to PAS 24 and Secured by Design approved
Gerda Security is committed to comprehensive doorset design – owning all doorset designs – to ensure that all performance criteria address building regulation requirements and offer innovation for better living environments. The designs are extensively tested to arrive at a substantial library of primary-owned test evidence to cater for the built environment.
General information
Color | Blue Grey Green White Red |
Finish | Painted Laminated Glazed |
Material | Timber Wood Plywood Glass |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | L20/55 Doorsets L20/430 Wood doorsets L20/420 Wood doorsets L20/410 Wood doorsets |
Specification data - Wood doorsets
Classification data | |
Standard | External fire-rated doorset UKCA/ UKNI/ CE marked in accordance with BS EN 14351-1 and BS EN 16034. |
Configuration | Single-leaf, single-action. |
Doorset size | Manufacturer guidance
|
Performance | |
Fire resistance | |
Integrity | To BS EN 1634-1, E 30 minutes. |
Insulation | To BS EN 1634-1, I 30 minutes. |
Smoke leakage | To BS EN 1634-3, Sa. |
Acoustic performance | To BS EN ISO 10140-2, sound reduction index Rw 30 dB minimum. Guidance for specification option:
|
Strength and durability | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Thermal | 1.5 W/m²K. Guidance for specification option: Solid and glazed styles. |
Intruder resistance | |
Minimum requirement | To PAS 24. Secured by Design certification. |
Application | Both sides. |
Conformity | Certification by accredited third-party certification body. Type testing not permitted. |
Accessibility | In accordance with BS 8300-2. |
Frame | |
Material | Hardwood. |
Species | Oak. Ash. Sapele. Engineered timber. |
Threshold | Hardwood. Aluminium low profile. Aluminium slimline (for mobility requirements). |
Perimeter seals or inserts | Not required. Stainless steel 32 mm rain deflector. Dropdown smoke seal. |
Finish | Full paint factory finish. Guidance for specification option:
Laminated. Guidance for specification option:
|
Colour | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
External | White. Other. Guidance for specification option: Consult manufacturer for details and insert requirements. |
Internal | As external. |
Installation fasteners | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Frame accessories | 19 mm integral door stop with draught seal. 16 mm integral door stop with draught seal. |
Door leaf | |
Thickness | 54 mm. |
Core | Solid core. Guidance for specification option: Polymer-based door core. |
Panel details | Aire. Colne. Dee. Derwent. Esk. Fowey. Galven. Lark. Lymn. Medway. Mersey. Nene. Orwell. Prosper. Ribble. Rivelin. Severn. Stour. Tamar. Teign. Trent. Waveney. Wharfe. Winster. Manufacturer guidance
|
Facings | Plywood. |
Species | Hardwood. |
Lippings | Lipped with hardwood of 640 kg/m³ density. |
Perimeter seals | Not required. Stainless steel 32 mm rain deflector. Dropdown smoke seal. |
Finish | Full paint factory finish. Guidance for specification option:
Laminated. Guidance for specification option:
|
Colour | |
External | Steel blue. Anthracite grey. Moss green. Traffic white. Carmine red. RAL colour. Guidance for specification option: Available in all RAL colours. Consult manufacturer and insert requirements. Manufacturer guidanceAvailable in five standard finishes or any RAL colour. |
Internal | As external. Steel blue. Anthracite grey. Moss green. Traffic white. Carmine red. RAL colour. Guidance for specification option: Available in all RAL colours. Consult manufacturer and insert requirements. |
Glazing | |
Type | Not required. Guidance for specification option: Dependent on selected door style (panel details). Consult manufacturer's literature for details. EI 30 clear double glazing units in accordance with BS EN 356 P1 A. EI 30 obscure double glazing units in accordance with BS EN 356 P1 A. Manufacturer guidance
|
Manifestation | None. |
Beading | |
Type | External. |
Material | Hardwood. |
Fixing | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Door accessories | Not required. Letterplate TS008 standard. Letterplate TS008 slimline. |
Planted stops | |
Wood species | Not required. Oak. Ash. Seaple. Engineered hardwood. |
Finish | Full paint finish. |
Colour | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Hardware | Door closer cam action, transom. Door closer cam action, leaf. Door closer concealed overhead action. Freeswing closer (non-wired). Electromechanical swing door opener for Equality Act and BS 8300 requirements. Infrared safety sensors. Door closer electromagnetic freeswing. Face fixed door closer. Stainless steel CE marked hinges to EN 1935. Heavy duty stainless steel CE marked hinges to EN 1935. Manufacturer guidanceConsult manufacturer/ manufacturer's literature for details. |
Architraves | |
Material | PVC, 5 mm minimum thickness. Timber, 15 mm thickness. MDF, 15 mm thickness. |
Finish | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Colour | |
External | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Internal | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Preservative treatment | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Accessories | Door chain. Guidance for specification option: Standard. Knocker, slimline weighty design. Guidance for specification option: Standard. Viewer (one off). Guidance for specification option: Standard. Numerals/ letters. Guidance for specification option: Standard - tailored to requirements. Ring video doorbell. Guidance for specification option: Optional. Viewer (two off). Guidance for specification option: Optional. Push/ kick plates. Guidance for specification option: Optional. Magnetic hold open device. Guidance for specification option: Optional. PVC finger guard. Guidance for specification option: Optional. Standard for Safer Homes with Care Assist. Manufacturer guidanceConsult manufacturer's literature for standard and optional product accessories and insert requirements. |
Locking | Multipoint locking system. Multipoint lock with automatic locking. Multipoint lock with automatic locking and assisted opening. Manufacturer guidance
|
Handles | Manufacturer guidanceConsult manufacturer for handle set options and insert requirements. |
Over/ side panels | Manufacturer guidance
|
Air permeability | To BS EN 1026, Class 3. |
Watertightness | To BS EN 1027, Class 2A. |
Resistance to wind load | To BS EN 12211, Class C3. |
Sustainability data
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Timber Wood Plywood Glass |
Expected Life | 15 year |
Product certifications
Warringtonfire
Certisecure Certificate of Approval
Literature
The Safer Homes SHR EI30 Sa External Flat Entrance Range Performance Specification
